Stiga Lawn Tractor 8211 0001 20 Compact 14, 16, 16 4WD, Silent Operators Manual

51
ENGLISHEN
Translation of the original instructions
2.4.8 Clutch release lever
A lever for disengaging the variable transmission.
HST is equipped with a lever, connected to the rear
axle. See (5:N).
4WD is equipped with two levers, connected to the
rear axle (6:O) and the front axle (6:P).
The disengagement lever must never be
between the outer and inner positions.
This overheats and damages the trans-
mission.
The levers enable the machine to be moved by
hand without the help of the engine. Two...

52
ENGLISHEN
Translation of the original instructions

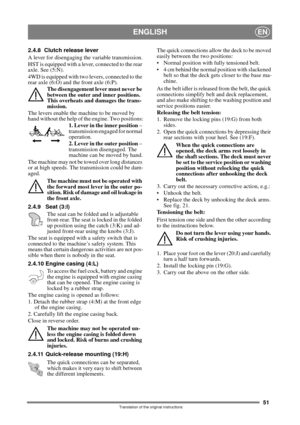

3 AREAS OF USE
The machine may only be used for the following
tasks using the genuine STIGA accessories stated.
The maximum vertical load on the towing hitch
must not exceed 100 N.
The maximum over-run load on the towing hitch
from towed accessories must not exceed 500 N.
NOTE! Before using a trailer – contact your insur-
ance company.
NOTE! This machine is not intended to be driven
on public roads.
4 STARTING AND OPERATION
The machine may not be...

53
ENGLISHEN
Translation of the original instructions
4.4.1 General safety check
4.4.2 Electrical safety check
The operation of the safety system
should always be checked every time
before use.
4.5 START1.  Open the fuel cock. See 10:U.
2.  Check that the spark plug cable(s) is/are in-
stalled on the spark plug(s).
3.  Check to make sure that the power take-off is
disengaged.
4. Do not keep your foot on the drive pedal.
5. Starting cold engine – put the throttle control in
the choke position....

54
ENGLISHEN
Translation of the original instructions
Never use high-pressure air against the
radiator fins. This will damage the fin
structure.
Clean the machine after each use. The following
instructions apply for cleaning:
 Do not spray water directly at the engine.
 Clean the engine with a brush and/or com-
pressed air.
 Clean the engine’s cooling air intake (8:T).
 After cleaning with water, start the machine and
any cutting deck to remove the water that may
otherwise penetrate bearings and...

55
ENGLISHEN
Translation of the original instructions
5.5 TRANSMISSION, OIL (4WD)The oil in the hydraulic power transmission must
be checked/adjusted and changed at the intervals
given in the table below.
Type of oil: Synthetic oil 5W-50
Oil quantity when changing: approximately
3.5 litres.
5.5.1 Checking - adjusting
Se “4.2”.
5.5.2 Draining
1. Run the machine at variable speeds for 10-20
minutes to heat up the transmission oil.
2. Position the machine completely horizontally.
3. Pull out both...

56
ENGLISHEN
Translation of the original instructions
5.8 BATTERY
If acid comes into contact with the eyes
or skin, this can cause serious injuries.
If any part of the body has come into
contact with acid, rinse immediately
with copious amounts of water and seek
medical assistance as soon as possible.
The battery is a valve-regulated battery with 12 V
nominal voltage. The battery fluid does not need to
and cannot be checked or topped up. The only
maintenance that is required is charging, for...

57
ENGLISHEN
Translation of the original instructions
Silent:1. Dismantle the air filter cover (9:R) by undoing
its screw.
2.  Dismantle the filters. The pre-filter (9:B) is
placed over the air filter (9:A). Make sure that
no dirt gets into the carburettor. Clean the air fil-
ter housing.
3.  Wash the pre-filter in liquid detergent and wa-
ter. Squeeze dry. Pour a little oil on the filter and
squeeze in the oil.
4. Clean the paper filter by tapping it gently
against a flat surface. If the filter is...

58
FRANÇAISFR
Traduction de la notice originale

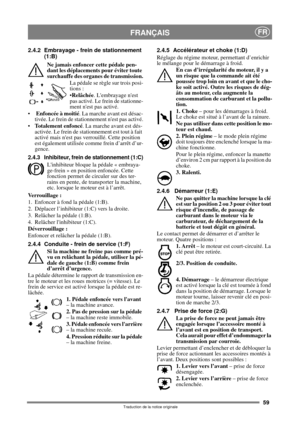

1 GÉNÉRALITÉS
Ce symbole est un AVERTISSEMENT.
Risque de blessure ou de dégât matériel
en cas de non-respect des instructions.
Avant de démarrer la machine, lire at-
tentivement les instructions ainsi que
les consignes contenues dans le fascicule
« RÈGLES DE SÉCURITÉ » ci-joint.
1.1 SYMBOLESLes symboles suivants figurent sur la machine. Ils
attirent votre attention sur les dangers et les mesu-
res à respecter lors de l’utilisation et de la mainte-...

59
FRANÇAISFR
Traduction de la notice originale
2.4.2 Embrayage - frein de stationnement
(1:B)
Ne jamais enfoncer cette pédale pen-
dant les déplacements pour éviter toute
surchauffe des organes de transmission.
La pédale se règle sur trois posi-
tions :
Relâchée. Lembrayage nest
pas activé. Le frein de stationne-
ment nest pas activé.
 Enfoncée à moitié. La marche avant est désac-
tivée. Le frein de stationnement nest pas activé.
Totalement enfoncé. La marche avant est dés-
activée. Le frein de...

60
FRANÇAISFR
Traduction de la notice originale
2.4.8 Levier de débrayage
Levier permettant de débrayer la transmission va-
riable.
Le modèle HST est équipé d’un levier connecté à
l’essieu arrière. Voir (5:N).
Le modèle 4WD est équipé de deux leviers
connectés à l’essieu arrière (6:O) et l’essieu avant
(6:P).
Le levier d’embrayage ne doit jamais se
trouver entre les positions extérieure et
intérieure pour éviter de surchauffer le
moteur et d’endommager la transmis-
sion.
Pour permettre de bouger...
