6. Motor anlassen und im Leerlauf betreiben. Fül-
len Sie nachträglich Öl in  den Behälter, bis der
Ölstand zur Markierung reicht.
7. Remontieren Sie den Öleinfülldeckel und  schließen Sie die Motorhaube.
8. Bringen Sie die Antriebsachsenventile gemäß  Abb. 25 wieder in ihre ursprüngliche Stellung.
9. Fahren Sie das Gerät 8-10 m nach vorn und 8- 10 m nach hinten. Ist das Gerät mit einer hy-
draulischen Servolenkung ausgestattet, drehen
Sie das Lenkrad vollständig in die eine und an-
dere...

62
DEUTSCHDE
Wenn die Kabel in der umgekehrten
Reihenfolge angeschlossen bzw. ge-
trennt werden, besteht das Risiko für
einen Kurzschluss sowie eine Beschädi-
gung der Batterie.
Durch das Vertauschen der Kabel wer-
den Generator und Batterie zerstört.
Ziehen Sie die Kabel fest an. Lose Kabel
können Brände verursachen.
Der Motor darf nie bei getrennter Bat-
terie betrieben werden. Dadurch be-
steht die Gefahr für Schäden an
Generator und elektrischem System.
Nach Abschluss der Batt eriemaßnahmen ist...

63
DEUTSCHDE
4.  Papierfilter folgendermaßen reinigen: Filter leicht gegen eine ebene Fläche klopfen. Wenn
der Papierfilter sehr sc hmutzig ist, sollte er
ausgewechselt werden.
5.  Den Luftfilter in umgekehrter Reihenfolge  wieder zusammensetzen.
Zur Reinigung des Papierfilters dürfen keine
Lösungsmittel wie z. B. Petroleum verwendet
werden. Diese Lösungsmittel zerstören den
Filter.
Zur Reinigung des Papierfilters keine Druckluft
benutzen. Der Papierfilter  darf nicht eingeölt
werden.
5.11...

64
ENGLISHEN
1 GENERAL
This symbol indicates WARNING. Se-
rious personal injury and/or damage to
property may result if the instructions
are not followed carefully.
You must read these instructions for
use and the accomp anying pamphlet
“SAFETY INSTRUCTIONS” careful-
ly, before starting up the machine.
1.1 SYMBOLS
The following symbols appear on the machine.
They are there to remind you of the care and atten-
tion required during use and maintenance.
This is what the symbols mean:
Warning!
Read the...

65
ENGLISHEN

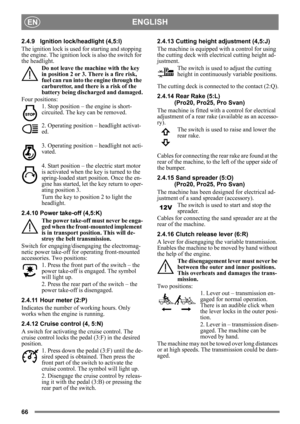

Lowering. The implement lowers re-
gardless of its weight.
Locking in the transport position . The
lever has returned to the neutral position
after raising and lowering. The imple-
ment is locked in the transport position.
Raising. Move the lever to  the rear posi-
tion until the implemen t is in the highest
position (transport position). Then re-
lease the lever to lock in the transport po-
sition.
2.4.3 Clutch-parking brake (3:B) Never press the pedal while driving.
There is a risk of...

66
ENGLISHEN
2.4.9 Ignition lock/headlight (4,5:I)
The ignition lock is used for starting and stopping
the engine. The ignition lock  is also the switch for
the headlight.
Do not leave the machine with the key
in position 2 or 3. There is a fire risk,
fuel can run into th e engine through the
carburettor, and there is a risk of the
battery being discharged and damaged.
Four positions: 1. Stop position – the engine is short-
circuited. The key can be removed.
2. Operating position – headlight...

67
ENGLISHEN
2.4.17 Seat (1:T)The seat can be folded  and adjusted front-
rear. The seat can be adjusted as follows:
1. Move the control lever (1:S) upwards.
2. Set the seat to the desired position.
3. Release the control lever (1:S) to lock
the seat.
The seat is equipped with a safety switch that is
connected to the machine’s safety system. This
means that certain dangerous activities are not pos-
sible when there is nobody sitting on the seat. Also
see 4.3.2.
2.4.18 Engine casing (7:U)
In order to...

68
ENGLISHEN
4 STARTING AND OPERATION
The machine may not be operated un-
less the engine casing is closed and
locked. Risk of burns and crushing in-
juries.
4.1 FILLING WITH PETROL
Always use lead-free petrol. You must never use 2-
stroke petrol mixed with oil.
The tank holds 14 litres.  The level can easily be
read through the transparent tank.
NOTE! Ordinary lead-free  petrol is a perishable
and must not be stored for more than 30 days.
Environmental petrol can be used, i.e. alkylate pet-
rol. This...

69
ENGLISHEN
4.3.2 Electrical safety checkThe operation of the safety system
should always be checked every time
before use.
4.4 START
1.  Open the fuel cock. See 14.
2.  Check that the spark pl ug cable(s) is/are in-
stalled on the spark plug(s).
3.  Check to make sure that the power take-off is  disengaged.
4.  Do not keep your foot  on the drive pedal (3:F).
5. Put the throttle control at full throttle.  Starting cold engine – pull the choke control out
fully.
Starting warm engine – the choke...

70
ENGLISHEN
4.8 CLEANING
To reduce the risk of fire, keep the en-
gine, silencer, battery and fuel tank free
from grass, leaves and oil.
To reduce the risk of fire, regularly
check the machine for oil and/or fuel
leakage.
Clean the machine after each use. The following
instructions apply for cleaning:
• When washing the machine with water under  high pressure, do not point  the jet directly at
axle seals, electrical components or hydraulic
valves.
• Do not spray water dir ectly at the engine.
•...
