Toshiba Satellite Pro Te2000 Manual

Appendix F
Wireless LAN
This document is intended to help you get your Wireless LAN network up and
running, with a minimum of parameters.
About Toshiba Wireless solution
The Wireless LAN card Kit enables you to:
❑Connect your computer to a peer-to-peer workgroup of Wireless computing
devices.
❑Connect your computer to a Local Area Network (LAN) Infrastructure that
includes Wireless LAN Access Points, or other IEEE802.11 compliant LAN
systems.
❑Expand the capabilities of your Wireless LAN Access Points,...

F-2
User’s Manual
APPENDIX
 FPeer-to-peer workgroup
The peer-to-peer workgroup configuration enables you to quickly set up a small
Wireless workgroup, where the workgroup participants can exchange files using
features such as Files and Printer Sharing as supported by Microsoft Networking.

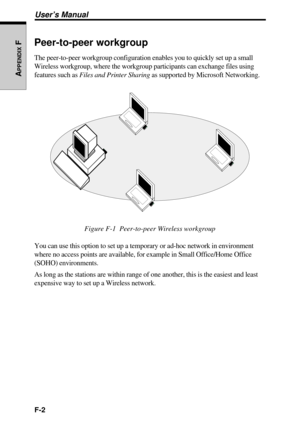

Figure F-1  Peer-to-peer Wireless workgroup
You can use this option to set up a temporary or ad-hoc network in environment
where no access points are available, for example in Small Office/Home Office
(SOHO)...

F-3
APPENDIX
 F
Appendix F
Enterprise networking
Figure F-2  Stand-alone Wireless LAN
With the Wireless LAN Access Points you can connect to a corporate Local Area
Network (LAN) infrastructure to have Wireless access to all network facilities.
LAN Infrastructures may either be.
❑Stand-alone Wireless LANs as pictured in Figure F-2

F-4
User’s Manual
APPENDIX
 F❑Wireless network infrastructures connected to an existing Ethernet network as
pictured in Figure F-3.

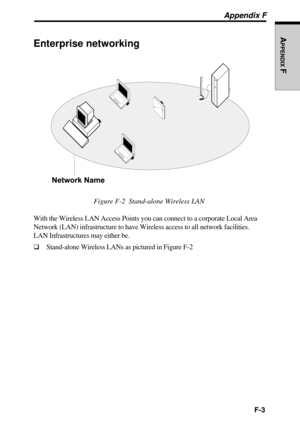

Figure F-3  LAN Infrastructure
Easy configuration
The Wireless LAN card functions like any standard wired Ethernet card except it
gives you the freedom of Wireless connections.
Where an Ethernet card requires a cable connection to a hub and/or patch panel, the
cable physically limits the location of the wired connection.
Expanding or re-designing your network is easy. A...

F-5
APPENDIX
 F
Appendix F
Wireless LAN card types
The Wireless LAN card is a Wireless network card that complies with the IEEE
802.11 standard on Wireless LANs (Revision B). The Wireless LAN card supports
data rates up to 11 Mbit/s.
❑Wi-Fi (Wireless Fidelity) certified by the Wireless
Ethernet Compatibility Alliance (WECA). This
means that your Wireless hardware will communi-
cate with other vendors’ IEEE 802.11 compliant
Wireless LAN products.
❑Fully compatible with any other Wireless LAN system based...

F-6
User’s Manual
APPENDIX
 F5. Set the correct Network Name.

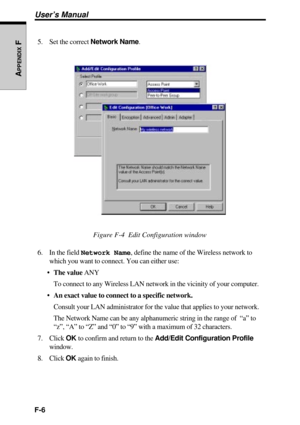

Figure F-4  Edit Configuration window
6. In the field Network Name, define the name of the Wireless network to
which you want to connect. You can either use:
The value ANY
To connect to any Wireless LAN network in the vicinity of your computer.
An exact value to connect to a specific network.
Consult your LAN administrator for the value that applies to your network.
The Network Name can be any alphanumeric string in the range of  “a” to
“z”,...

F-7
APPENDIX
 F
Appendix F
Basic settings for peer-to-peer workgroups
If you wish to connect to a peer-to-peer workgroup, use the Add/Edit Configuration
Profile window to:
1. Click the Start button from the Windows task bar.
2. Click on Settings, and then on Control Panel.
3. In the Control Panel window, double-click the Wireless Network icon.
4. Select to connect to a peer-to-peer workgroup.
5. Set the correct Network Name and Encryption Key.

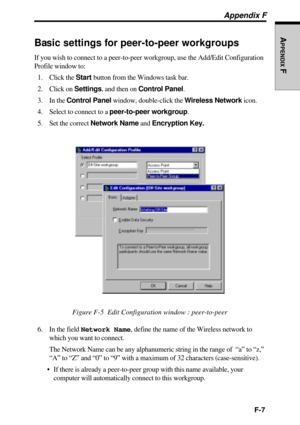

Figure F-5  Edit Configuration window : peer-to-peer
6. In...

F-8
User’s Manual
APPENDIX
 F If there is not yet such a group available, your computer will automatically
start one with this name.
7. Click OK to confirm and return to the Add/Edit Configuration
Profile window.
8. Click OK again to finish.
Working with Wireless and Windows
This chapter provides general information about:
❑Using your Wireless LAN card
❑Using the Client Manager
❑View Wireless link quality
❑View/modify Wireless LAN card settings
Using your Wireless LAN card
Radio antennas
The radio and...

F-9
APPENDIX
 F
Appendix F
4. To display other workgroups in the network environment, double-click the
Entire Network icon.
If you cannot find other Wireless LAN networked computers, verify whether the
other Wireless LAN computers are:
❑Powered up and logged onto the network.
❑Configured to operate with identical Microsoft Network settings concerning:
 Networking Protocol
 Wireless Network Name
 Workgroup Name
To view or modify the Station Name or Workgroup of your computer,
proceed as follows:
1....

F-10
User’s Manual
APPENDIX
 F❑Click the icon once with your right mouse button to display a menu with more
options.
View Wireless link quality
You can use Client Manager icon on the Windows task bar to verify the link quality
of your network connection.
An overview of all possible icons is given in Table1. When the Client Manager icon
is not indicating excellent or good radio connection, act as described in Table F-1.
Table F-1  Client Manager Icon
Icon Description Color
Excellent radio connection...
