Page 31

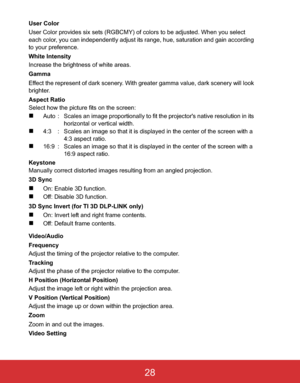

EN-28 User Color User Color provides six sets (RGBCMY) of colors to be adjusted. When you select each color, you can independently adjust its range, hue, saturation and gain according to your preference. White Intensity Increase the brightness of white areas. Gamma Effect the represent of dark scenery. With greater gamma value, dark scenery will look brighter. Aspect Ratio Select how the picture fits on the screen: „Auto : Scales an image proportionally to fit the projector's native resolution in...
Page 32
EN-29 Allow you to enter the Video Setting menu. „Sharpness: Sharpen or soften the image. „Tint: Shift colors toward red or green. „Hue: Increase in the range will include colors consisted of more proportions of its two adjacent colors. Audio Setting Allow you to enter the Audio Setting menu. „Volume: Adjust the projector’s volume level. „Mute: Cut off the sound temporarily. Setting Projector Projection Adjust the picture to match the orientation of the projector: upright or upside-down, in front of or...
Page 33
EN-30 Option Closed Caption Enable or disable closed captions by selecting CC1 (closed caption1, the most common channel), CC2, CC3, CC4, T1, T2 or OFF. DCR (Dynamic Contrast Ratio) Enable DCR will further enhance contrast ratio by darkening the black scenes. Disable DCR will resume to normal contrast performance. DCR will impact lamp life and system noise performance. Password Set, change or delete the password. When the password function is added, image projection will require to input the preset...
Page 34
EN-31 H. Frequency Display current image horizontal frequency. V. Frequency Display current image vertical frequency. Lamp Hours Display the lamp’s elapsed operating time (in hours). 31
Page 35

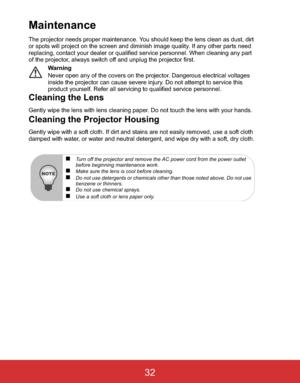

EN-32 Maintenance The projector needs proper maintenance. You should keep the lens clean as dust, dirt or spots will project on the screen and diminish image quality. If any other parts need replacing, contact your dealer or qualified service personnel. When cleaning any part of the projector, always switch off and unplug the projector first. Warning Never open any of the covers on the projector. Dangerous electrical voltages inside the projector can cause severe injury. Do not attempt to service...
Page 36

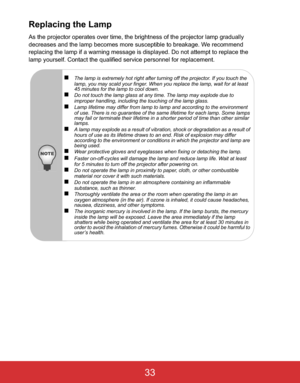

EN-33 Replacing the Lamp As the projector operates over time, the brightness of the projector lamp gradually decreases and the lamp becomes more susceptible to breakage. We recommend replacing the lamp if a warning message is displayed. Do not attempt to replace the lamp yourself. Contact the qualified service personnel for replacement. „The lamp is extremely hot right after turning off the projector. If you touch the lamp, you may scald your finger. When you replace the lamp, wait for at least 45...
Page 37
EN-34 1. Turn off the projector. 2. If the projector is installed in a ceiling mount, remove it 3. Unplug the power cord. 4. Loosen the screw in the side of the lamp cover and remove the cover. 5. Remove the screws from the lamp module, raise the handle, and lift out the module. 6. Insert the new lamp module into the projector and tighten the screws. 7. Replace the lamp cover and tighten the screw. 8. Turn on the projector. If the lamp does not turn on after the warm-up period, try reinstalling the...
Page 38
EN-35 Specifications Display system Single 0.55" DLP panel Resolution XGA (1024 x 768 pixels) Zoom Fixed F/No. 0.68 Focal length 7.73 mm Screen size 40” - 300” Lamp 180W Input terminal D-Sub 15-pin x 2, S-Video x 1, Video x 1, Audio signal input (3.5 mm stereo mini jack) x 1, HDMI x 1 Output terminal D-Sub 15 pin x 1, Audio signal output (3.5 mm stereo mini jack) x 1 Control terminal RS-232 x 1, Mini USB type x1 (supports firmware upgrade and remote mouse control) Speaker 2 watt x 1 Video...
Page 39

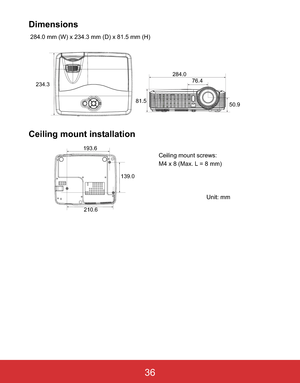

EN-36 Dimensions 284.0 mm (W) x 234.3 mm (D) x 81.5 mm (H) Ceiling mount installation 234.3 81.5284.0 76.4 50.9 210.6 193.6 139.0 Ceiling mount screws: M4 x 8 (Max. L = 8 mm) Unit: mm 36
Page 40

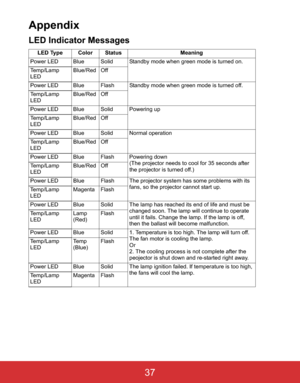

EN-37 Appendix LED Indicator Messages LED Type Color Status Meaning Power LED Blue Solid Standby mode when green mode is turned on. Temp/Lamp LEDBlue/Red Off Power LED Blue Flash Standby mode when green mode is turned off. Temp/Lamp LEDBlue/Red Off Power LED Blue Solid Powering up Temp/Lamp LEDBlue/Red Off Power LED Blue Solid Normal operation Temp/Lamp LEDBlue/Red Off Power LED Blue Flash Powering down (The projector needs to cool for 35 seconds after the projector is turned off.) Temp/Lamp...
