Page 41
EN-38 Compatibility Modes Computer: Resolution H-Sync [KHz] V-Sync [Hz] 640 x 350 37.9 85.0 640 x 480 24.6 50.0 31.5 59.9 37.9 72.8 37.5 75.0 43.3 85.0 61.9 120.0 720 x 400 31.5 70.0 37.9 85.0 800 x 600 31.0 50.0 35.2 56.0 37.9 60.3 48.1 72.0 46.9 75.0 53.7 85.1 76.3 120.0 1024 x 768 48.4 60.0 56.5 70.1 60.0 75.0 68.7 85.0 97.6 120.0 1152 x 864 67.5 75.0 1280 x 768 47.8 60.0 1280 x 960 60.0 60.0 85.9 85.0 1280 x 1024 64.0 60.0 1400 x 1050 65.3 60.0 1600 x 1200 75.0 60.0 1680 x 1050 65,3 60,0 38
Page 42
EN-39 Video: Compatibility Resolution H-Sync [KHz] V-Sync [Hz] 480i 720 x 480 15.8 60 480p 720 x 480 31.5 60 576i 720 x 576 15.8 50 576p 720 x 576 31.3 50 720p 1280 x 720 37.5 50 720p 1280 x 720 45 60 1080i 1920 x 1080 33.8 60 1080i 1920 x 1080 28.1 50 1080p 1920 x 1080 67.5 60 1080p 1920 x 1080 56.3 50 39
Page 43
EN-40 Troubleshooting Refer to the symptoms and measures listed below before sending the projector for repairs. If the problem persists, contact your local reseller or service center. Please refer to "LED Indicator Messages" as well. Start-up problems If no lights turn on: „Be sure that the power cord is securely connected to the projector and the other endis plugged into an outlet with power. „Press the power button again. „Unplug the power cord and wait for a short while, then plug it in and...
Page 44
EN-41 RS-232 Command and Configuration Function Action Control Code Return Code Power Power on BE,EF,10,05,00,C6,FF,11,11,01,00,01,00 6 Power off BE,EF,03,06,00,DC,DB,69,00,00,00,00,00 6 Source input Computer1 BE,EF,03,19,00,19,29,01,47,02,CC,CC,00 6 Computer2 BE,EF,03,19,1E,90,72,01,47,02,CC,CC,00 6 S-Video BE,EF,03,19,00,E8,69,01,47,02,CC,CC,00 6 Video BE,EF,03,19,00,78,A8,01,47,02,CC,CC,00 6 HDMI BE,EF,03,19,00,DA,2B,01,47,02,CC,CC,006 Projector positionFront table...
Page 45

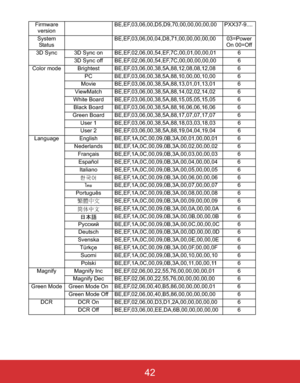

EN-42 Firmware versionBE,EF,03,06,00,D5,D9,70,00,00,00,00,00 PXX37-9.... System StatusBE,EF,03,06,00,04,D8,71,00,00,00,00,00 03=Power On 00=Off 3D Sync 3D Sync on BE,EF,02,06,00,54,EF,7C,00,01,00,00,01 6 3D Sync off BE,EF,02,06,00,54,EF,7C,00,00,00,00,00 6 Color mode Brightest BE,EF,03,06,00,38,5A,88,12,08,08,12,08 6 PC BE,EF,03,06,00,38,5A,88,10,00,00,10,00 6 Movie BE,EF,03,06,00,38,5A,88,13,01,01,13,01 6 ViewMatch BE,EF,03,06,00,38,5A,88,14,02,02,14,02 6 White Board...
Page 46

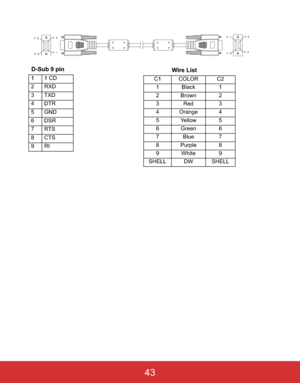

EN-43 !!!!!!!!! D-Sub 9 pin 11 CD 2RXD 3TXD 4DTR 5GND 6DSR 7RTS 8CTS 9RI Wire List C1 COLOR C2 1Black 1 2Brown 2 3Red 3 4 Orange 4 5 Yellow 5 6Green 6 7Blue 7 8 Purple 8 9White 9 SHELL DW SHELL 43
Page 47
EN-44 IR Control Code System Code: 83F4 Format : NEC 87 0264 65 6667 84 6B8D 82 85 8C 81 83 0A 03 630F 80 8F68 6A 8E88 89 8B 44
Page 48
