Caution! WARNING: Please use this product as instructed. Misuse may cause injury or death. *Do not operate the Projector in direct sunlight or near heat sources such as heaters, fires, and stoves as this may cause a firehazard. *Do not place inflammable materials beside the projector as this may cause a fire hazard. *Do not operate the projector close to sources of steam or oil such as a humidifier as this may cause electric shock. *Do not operate the projector near water such as by the sink or...
Page 3
Table of Contents Chapter 1: P3 at a glance Main Unit Front/Back Remote & Keypad Accessories Chapter 2: Getting Started Powering On / OFF Focus Adjustment / Throw Distance External Inputs /Input Sources Connecting to a Computer Connecting to Composite Video Connecting to Speaker or Headphones 2 2 3 4 5 5 6 7 8 11 13 14 15 15 16 18 19 20 22 22 24 Connecting to a USB drive Chapter 3: Menu Screens Main menu File Menu System Video Player Menu Photo Viewer Menu Music Player Menu Chapter 4: Technical...
Page 4
P3 at a Glance 2 Input Select VGA Input Power Input A/V Input Projection Lens Headphone Directional Pad Mini USB Port HDMI Port Chapter 1 Main Unit Front/Back/SidePower Button Focus Adjustment Back Button Power On/Off Settings Menu Main Menu Navigation Volume Down Vertical Img Flip
Page 5

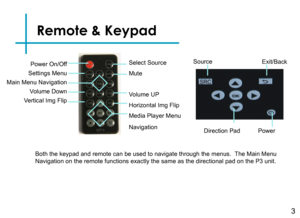

Remote & Keypad 3 Power On/Off Settings Menu Main Menu Navigation Volume Down Vertical Img Flip Select Source Mute Volume UP Horizontal Img Flip Media Player Menu NavigationPower Exit/Back Direction Pad Both the keypad and remote can be used to navigate through the menus. The Main Menu Navigation on the remote functions exactly the same as the directional p\ ad on the P3 unit. Source
Page 6

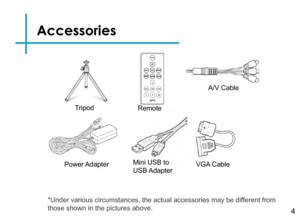

Accessories 4 *Under various circumstances, the actual accessories may be different from those shown in the pictures above. TripodRemote Power AdapterVGA Cable A/V Cable Mini USB to USB Adapter
Page 7
Getting Started 1. Connect the power cord to the P3. 2. Connect the wall plug into the wall power source. 3. Press POWER button and hold for 2-3 seconds to switch on or switch off the power. 4. The projector will boot with a boot screen and finish booting to the media player’s Main Menu. 5. If the projector does not boot to the “Main Menu” Press “SRC”, select “Me- dia” to start the Media Player • 4 hours of charge time is required to reach a full charge. • When charging, the inside of the P3 will glow...
Page 8

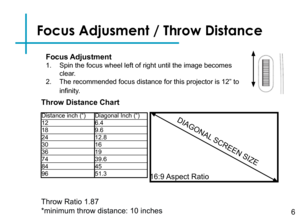

Focus Adjusment / Throw Distance Focus Adjustment 1. Spin the focus wheel left of right until the image becomes clear. 2. The recommended focus distance for this projector is 12” to infinity. 6 DIAGONAL SCREEN SIZE 16:9 Aspect Ratio Throw Distance Chart Distance inch (“)1218243036748496 Diagonal Inch (“)6.49.612.8161939.64551.3 Throw Ratio 1.87 *minimum throw distance: 10 inches
Page 9

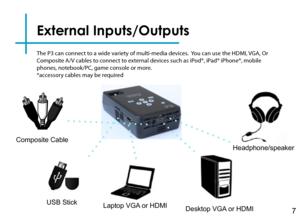

External Inputs/Outputs 7Laptop VGA or HDMIDesktop VGA or HDMIUSB Stick Headphone/speaker Composite Cable The P3 can connect to a wide variety of multi-media devices. You can use the HDMI, VGA, Or Composite A/V cables to connect to external devices such as iPod®, iPad® iPhone®, mobile phones, notebook/PC, game console or more.*accessory cables may be required
Page 10

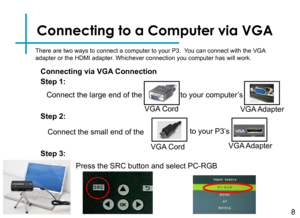

Connecting to a Computer via VGA Connect the large end of the 8 VGA Cord to your computer’s VGA Adapter Connect the small end of the VGA Cord to your P3’s VGA Adapter Step 1: Step 2: Step 3: There are two ways to connect a computer to your P3. You can connect with the VGA adapter or the HDMI adapter. Whichever connection you computer has will work. Connecting via VGA Connection Press the SRC button and select PC-RGB
