Aaxa Projector P3 User Manual

Connecting to a Computer via HDMI
Connect the one end of the
9
HDMICord
to your computer’s
HDMI Adapter
Connect the small end of the
HDMI Cord
to your P3’s
HDMI Adapter
Step 1:
Step 2:
Step 3:
There are two ways to connect a computer to your P3.  You can connect with the VGA adapter or the HDMI adapter. Whichever connection you computer has will work.
Connecting via HDMI Connection
Press the SRC button and select HDMI

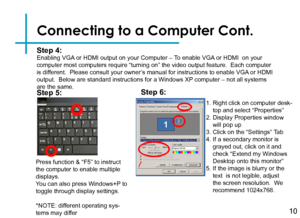

Connecting to a Computer Cont.
Step 4:Enabling VGA or HDMI output on your Computer – To enable VGA or HDMI  on your computer most computers require “turning on” the video output feature.  Each computer is different.  Please consult your owner’s manual for instructions to enable VGA or HDMI output.  Below are standard instructions for a Windows XP computer – not all systems are the same.
Press function & “F5” to instruct the computer to enable multiple displays.You can also press Windows+P to toggle...

Connecting to Composite Video
Connect one end of the
Composite Cord
to your P3’s
A/V Adapter
Connect opposite end ofto your devices
Step 1:
Step 2:
Composite CordComposite Cord
11

Connecting to Composite Video Cont.
Connectivity with multimedia devices
The P3 can connect to many media devices including: iPod, iPhone, iPad, \
VHS
players, DVD players, smart phones, cameras, video game consoles and oth\
er
peripherals with ease.
*Apps on smart phones  may require video out capabilities to be displayed with
the P3.
*addition accessory cables may be required12
Step 3:
Press the SRC
Button on the p3Choose A/V
Turn on your multimedia device.
Step 5:
Step 4:

Step 3:
Turn on your multimedia device.
Step 5:
Connecting Speakers/Headphones
Connect your speaker
or headphones
13
3.5 mm cord
to your P3’s
Speaker Adapter
Step 1:
Step 2:
Caution for Earphone (Earplug) Use• Prolonged use at high volume may impair your hearing.
Ensure the power and  volume on your
speaker or headphones is turned on
Step 3:
Place headphones/earphones in/over ears
Step 4:

USB OTG(On-the-Go)
How to insert your USB Drive• Slide your USB Drive into USB adapter.
*Review the Specification
section of this manual to read
about the supported file
formats.
How to access your USB Drive• Once your USB Drive has been inserted, you can navigate through the main menu to select what you want to view under each sub menu.(Videos, Photo, Music)
14
• Gently slide the drive until it cannot go in any further.
• Gently slide the mini-USB adapter into the P3 until it cannot go in any further.

Menu Screens
15
Main Menu
Chapter 3
The P3 features a built in PMP (Portable Media Player) function.This function allows the projector to play videos, pictures, music files, and text.  To access the main menu simply turn on the projector.
• Scroll Left/Right by pressing the             buttons on the projector or the left, right buttons on the remote.• To select a submenu, highlight the desired submenu and press the “OK” button located in the middle of the keypad or remote.• To go back to the previous...

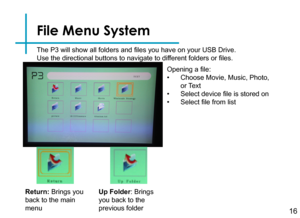

File Menu System
16
Opening a file:
• Choose Movie, Music, Photo,
or Text
• Select device file is stored on
• Select file from list
The P3 will show all folders and files you have on your USB Drive.
Use the directional buttons to navigate to different folders or files.
Return: Brings you
back to the main
menu
Up Folder: Brings
you back to the
previous folder

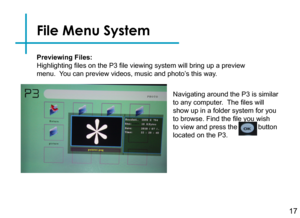

File Menu System
17
Navigating around the P3 is similar
to any computer.  The files will
show up in a folder system for you
to browse. Find the file you wish
to view and press the           button
located on the P3.
Previewing Files:
Highlighting files on the P3 file viewing system will bring up a preview
menu.  You can preview videos, music and photo’s this way.

Video Player Menu
18
Playing Videos
-To play/pause a video, press the ok      button in the middle of the keypad or
remote control
-To rewind, press and hold the left arrow button
-To fast-forward, press and hold the right arrow
button
-To jump forward to the next video, press the right
arrow button
-To jump back to a prior video, press the left arrow button
-To adjust the volume, press the up arrow button.  To decrease the volume press
the down arrow button.
Note:  If the video is large, please...
