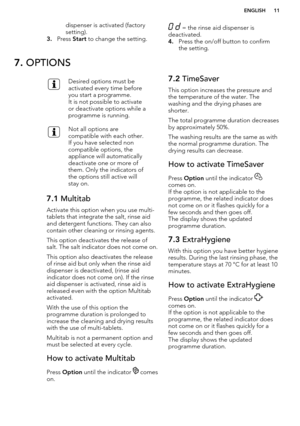

Page 11
dispenser is activated (factory setting). 3. Press Start to change the setting. = the rinse aid dispenser is deactivated. 4. Press the on/off button to confirm the setting.7. OPTIONSDesired options must be activated every time before you start a programme. It is not possible to activate or deactivate options while a programme is running.Not all options are compatible with each other. If you have selected non compatible options, the appliance will automatically deactivate one or more of them. Only the...
Page 12
8. BEFORE FIRST USE1. Make sure that the current level of the water softener agrees with the hardness of the water supply. If not, adjust the level of the water softener. 2. Fill the salt container. 3. Fill the rinse aid dispenser. 4. Open the water tap. 5. Start a programme to remove any processing residuals that can still be inside the appliance. Do not use detergent and do not load the baskets. When you start a programme, the appliance can take up to 5 minutes to recharge the resin in the water...

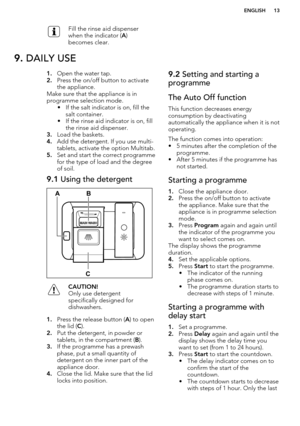

Page 13
Fill the rinse aid dispenser when the indicator ( A) becomes clear.9. DAILY USE1.Open the water tap. 2. Press the on/off button to activate the appliance. Make sure that the appliance is in programme selection mode. • If the salt indicator is on, fill thesalt container. • If the rinse aid indicator is on, fill the rinse aid dispenser. 3. Load the baskets. 4. Add the detergent. If you use multi- tablets, activate the option Multitab. 5. Set and start the correct programme for the type of load and the...

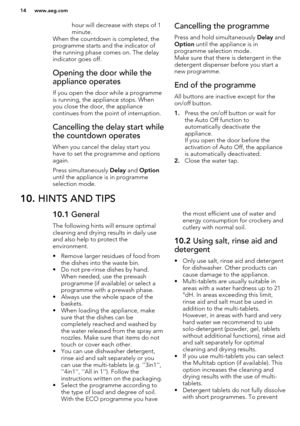

Page 14
hour will decrease with steps of 1 minute. When the countdown is completed, the programme starts and the indicator of the running phase comes on. The delay indicator goes off.Opening the door while the appliance operates If you open the door while a programme is running, the appliance stops. When you close the door, the appliance continues from the point of interruption. Cancelling the delay start while the countdown operates When you cancel the delay start you have to set the programme and options...
Page 15
detergent residues on the tableware, we recommend that you use the tablets with long programmes. • Do not use more than the correct quantity of detergent. Refer to the instructions on the detergent packaging.10.3 What to do if you want to stop using multi-tablets Before you start to use separately detergent, salt and rinse aid do the following procedure. 1. Set the highest level of the water softener. 2. Make sure that the salt and rinse aid containers are full. 3. Start the shortest programme with a...

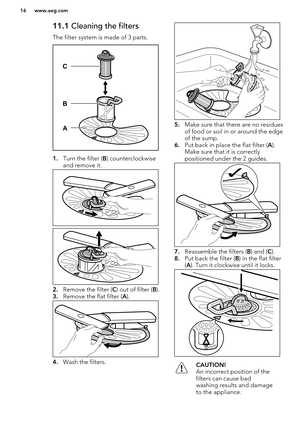

Page 16
11.1 Cleaning the filters The filter system is made of 3 parts. 1. Turn the filter ( B) counterclockwise and remove it. 2. Remove the filter ( C) out of filter ( B). 3. Remove the flat filter ( A). 4. Wash the filters. 5.Make sure that there are no residues of food or soil in or around the edge of the sump. 6. Put back in place the flat filter ( A). Make sure that it is correctly positioned under the 2 guides. 7. Reassemble the filters ( B) and ( C). 8. Put back the filter ( B) in the flat filter ( A )....

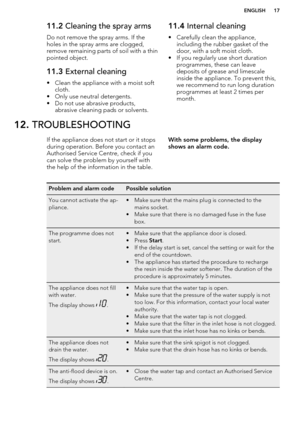

Page 17
11.2 Cleaning the spray arms Do not remove the spray arms. If the holes in the spray arms are clogged, remove remaining parts of soil with a thin pointed object.11.3 External cleaning • Clean the appliance with a moist soft cloth. • Only use neutral detergents. • Do not use abrasive products, abrasive cleaning pads or solvents. 11.4 Internal cleaning • Carefully clean the appliance, including the rubber gasket of the door, with a soft moist cloth. • If you regularly use short duration programmes, these...

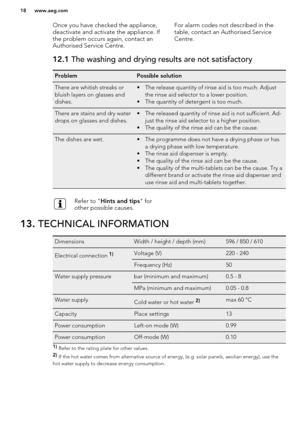

Page 18
Once you have checked the appliance,deactivate and activate the appliance. Ifthe problem occurs again, contact an Authorised Service Centre.For alarm codes not described in the table, contact an Authorised Service Centre.12.1 The washing and drying results are not satisfactoryProblemPossible solutionThere are whitish streaks or bluish layers on glasses and dishes.• The release quantity of rinse aid is too much. Adjust the rinse aid selector to a lower position. • The quantity of detergent is too...
Page 19
14. ENVIRONMENT CONCERNSRecycle the materials with the symbol . Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliancesmarked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office. * ENGLISH19
