Christie Digital Systems Lw300 Model 103-011100-01 Users Manual

Users Manual
103-011100-01MODEL

✽
Projection lens is optional.

2
CAUTION : T O  REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS
INSIDE EXCEPT LAMP REPLACEMENT.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
THIS SYMBOL INDICATES THAT DANGEROUS
VOLTAGE CONSTITUTING A RISK OF ELECTRIC
SHOCK IS PRESENT WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT THERE ARE
IMPORTANT OPERATING AND MAINTENANCE
INSTRUCTIONS IN THE OWNER’S MANUAL WITH
THIS UNIT.
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN

Before operating this projector, read...

3
SAFETY INSTRUCTIONS
All the safety and operating instructions should be read before
the product is operated.
Read all of the instructions given here and retain them for later
use.  Unplug this projector from AC power supply before
cleaning.  Do not use liquid or aerosol cleaners.  Use a damp
cloth for cleaning.
Follow all warnings and instructions marked on the projector.
For added protection to the projector during a lightning storm,
or when it is left unattended and unused for long periods of
time,...

4
COMPLIANCES
The AC Power Cord supplied with this projector meets the requirement for\
 use in the country you purchased it.
AC Power Cord for the United States and Canada :
AC Power Cord used in the United States and Canada is listed by the Unde\
rwriters
Laboratories (UL) and certified by the Canadian Standard Association (\
CSA).
AC Power Cord has a grounding-type AC line plug.  This is a safety featu\
re to be sure that the
plug will fit into the power outlet.  Do not try to defeat this safety f\...

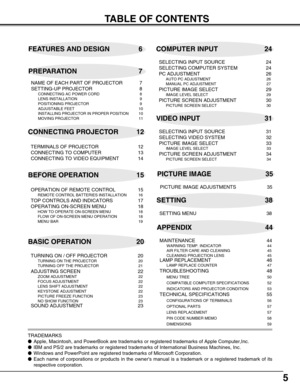

5
TABLE OF CONTENTS
FEATURES AND DESIGN 6
BEFORE OPERATION 15 PREPARATION 7
NAME OF EACH PART OF PROJECTOR 7
SETTING-UP PROJECTOR 8
CONNECTING AC POWER CORD 8
LENS INSTALLATION 9
POSITIONING PROJECTOR 9
ADJUSTABLE FEET 10
INSTALLING PROJECTOR IN PROPER POSITION 10
MOVING PROJECTOR 11
CONNECTING PROJECTOR 12
TERMINALS OF PROJECTOR 12
CONNECTING TO COMPUTER 13
CONNECTING TO VIDEO EQUIPMENT 14
OPERATION OF REMOTE CONTROL 15
REMOTE CONTROL BATTERIES INSTALLATION 16
TOP CONTROLS AND INDICATORS 17
OPERATING...

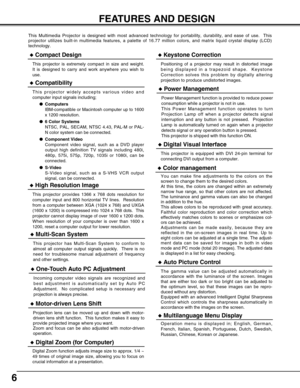

6
FEATURES AND DESIGN
This Multimedia Projector is designed with most advanced technology for \
portability, durability, and ease of use.  This
projector utilizes built-in multimedia features, a palette of 16.77 mill\
ion colors, and matrix liquid crystal display (LCD)
technology.
Compatibility
This projector widely accepts various video and
computer input signals including;Computers
IBM-compatible or Macintosh computer up to 1600
x 1200 resolution.
 6 Color Systems
NTSC, PAL, SECAM, NTSC 4.43, PAL-M...

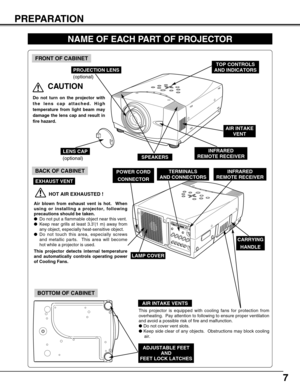

7
PREPARATION

NAME OF EACH PART OF PROJECTOR
BOTTOM OF CABINET
BACK OF CABINET
HOT AIR EXHAUSTED !
Air blown from exhaust vent is hot.  When
using or installing a projector, following
precautions should be taken.


Do not put a flammable object near this vent.


Keep rear grills at least 3.3’(1 m) away from
any object, especially heat-sensitive object.


Do not touch this area, especially screws
and metallic parts.  This area will become
hot while a projector is used.

This projector detects...

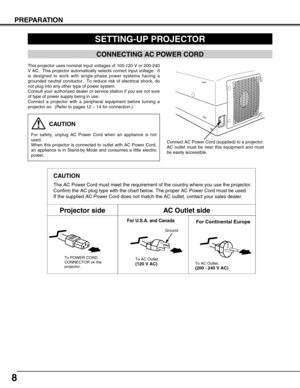

8
PREPARATION
SETTING-UP PROJECTOR

This projector uses nominal input voltages of 100-120 V or 200-240
V AC.  This projector automatically selects correct input voltage.  It
is designed to work with single-phase power systems having a
grounded neutral conductor.  To reduce risk of electrical shock, do
not plug into any other type of power system.
Consult your authorized dealer or service station if you are not sure
of type of power supply being in use.
Connect a projector with a peripheral equipment...

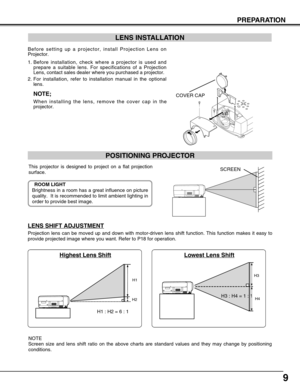

9
PREPARATION
LENS SHIFT ADJUSTMENT
Projection lens can be moved up and down with motor-driven lens shift fu\
nction. This function makes it easy to
provide projected image where you want. Refer to P18 for operation.

H3H4
H1
H2

Highest Lens ShiftLowest Lens Shift

H1 : H2 = 6 : 1 H3 : H4 = 1 : 1
NOTE
Screen size and lens shift ratio on the above charts are standard values\
 and they may change by positioning
conditions.

POSITIONING PROJECTOR

This projector is designed to project on a flat...

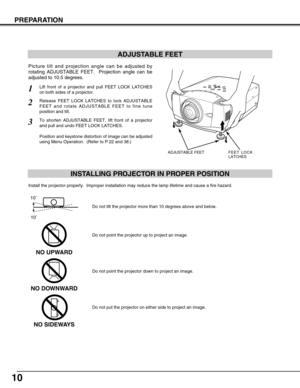

10
PREPARATION
ADJUSTABLE FEET
Picture tilt and projection angle can be adjusted by
rotating ADJUSTABLE FEET.  Projection angle can be
adjusted to 10.5 degrees.
Lift front of a projector and pull FEET LOCK LATCHES
on both sides of a projector.1
Release FEET LOCK LATCHES to lock ADJUSTABLE
FEET and rotate ADJUSTABLE FEET to fine tune
position and tilt. 2
To shorten ADJUSTABLE FEET, lift front of a projector
and pull and undo FEET LOCK LATCHES.
Position and keystone distortion of image can be adjusted...
