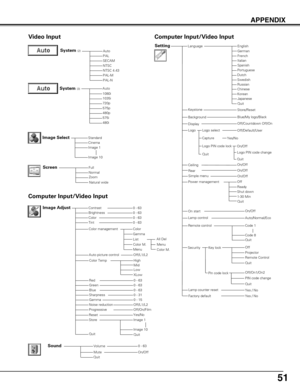

APPENDIX
AutoPALSECAMNTSCNTSC 4.43PAL-MPAL-N
Video Input
Auto
1035i720p575p480p575i480i
Quit
Full
Zoom
0 - 630 - 630 - 630 - 63
Off/On/Film
Volume
Language
System (3)
System (2)
Image AdjustContrastBrightnessColorTint
RedGreenBlueSharpness
ResetStore
Gamma
Progressive
0 - 630 - 630 - 630 - 310 - 15
Image 1
Image 10
Screen
Sound
SettingEnglishGermanFrenchItalianSpanishPortugueseDutchSwedish
ChineseKoreanJapanese
Store/Reset
Blue/My logo/Black
Off/Countdown Off/On
Logo select
On/Off
On/Off
Off
On/Off...

52
APPENDIX

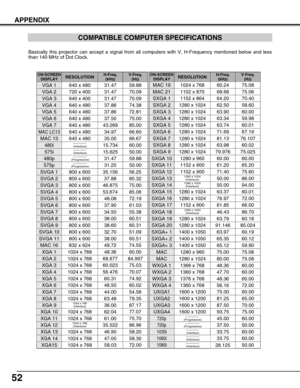

COMPATIBLE COMPUTER SPECIFICATIONS
––––––––
(Interlace)
1024 x 768 (Interlace)

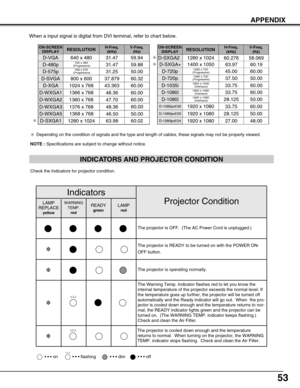

ON-SCREEN
DISPLAYRESOLUTIONH-Freq.(kHz)V-Freq. (Hz)
VGA 1640 x 48031.4759.88
VGA 2720 x 40031.4770.09
VGA 3640 x 40031.4770.09
VGA 4640 x 48037.8674.38
VGA 5640 x 48037.8672.81
VGA 6640 x 48037.5075.00
MAC LC13640 x 48034.9766.60
MAC 13640 x 48035.0066.67
MAC 16832 x 62449.7274.55
MAC 191024 x 76860.2475.08
MAC 211152 x 87068.6875.06
45.0060.00
SVGA 1800 x 60035.15656.25
SVGA 2800 x 60037.8860.32
SVGA 3800 x...

53
APPENDIX
NOTE :Specifications are subject to change without notice.
ON-SCREEN
DISPLAYRESOLUTIONH-Freq.(kHz)V-Freq. (Hz)
D-VGA640 x 48031.4759.94
D-480p720 x 480
(Progressive)31.4759.88
D-575p768 x 575
(Progressive)31.2550.00
D-SVGA800 x 60037.87960.32
D-XGA1024 x 76843.36360.00
ON-SCREEN
DISPLAYRESOLUTIONH-Freq.(kHz)V-Freq. (Hz)
D-WXGA11366 x 76848.3660.00
D-WXGA51368 x 76846.5050.00
D-1035i1920 x 1035(Interlace)33.7560.00
D-1080i1920 x 1080 (Interlace)33.7560.00
D-1080i1920 x...

54
APPENDIX

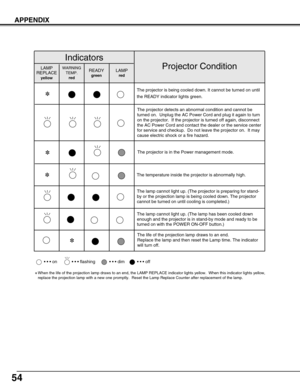

• •  •  on
• •  •  dim• •  •  off•  •  •  flashing

✽
When the life of the projection lamp draws to an end, the LAMP REPLACE i\
ndicator lights yellow.  When this indicator lights yel low,
replace the projection lamp with a new one promptly.  Reset the Lamp Rep\
lace Counter after replacement of the lamp.
The projector is being cooled down. It cannot be turned on until
the READY indicator lights green.
Projector ConditionLAMP
REPLACE

yellow

Indicators
READY
green

LAMP
red

WARNING...

55
Owner’s Manual (CD-ROM)
Quick setup manual
AC Power Cord
Wireless/Wired Remote Control Transmitter and Batteries
Control Cable for Serial port
PIN Code Label
Multi-media Projector
Accessories
 Specifications are subject to change without notice.

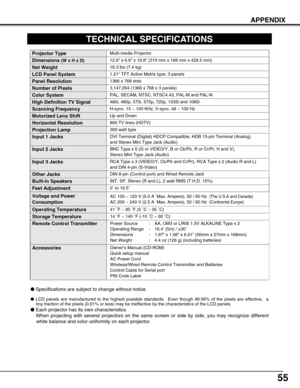

TECHNICAL SPECIFICATIONS
1.21 TFT Active Matrix type, 3 panels
16.3 lbs (7.4 kg)
12.6 x 6.6 x 16.8 (319 mm x 168 mm x 429.5 mm)
1366 x 768 dots
3,147,264 (1366 x 768 x 3 panels)
PAL, SECAM, NTSC, NTSC4.43, PAL-M and PAL-N
Up and Down
800 TV lines (HDTV)...

56

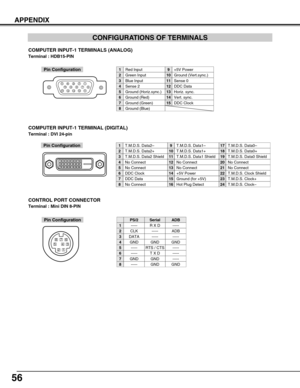

CONFIGURATIONS OF TERMINALS
COMPUTER INPUT-1 TERMINALS (ANALOG)
Terminal : HDB15-PIN

512341096781514131112
Red Input
Ground (Horiz.sync.)
Green Input
Sense 2
Blue Input
Ground (Red)
Ground (Green)
Ground (Blue)
1
5
2
4
3
6
7
8
+5V Power
Horiz. sync.
Ground (Vert.sync.)
DDC Data
Sense 0
Vert. sync.
DDC Clock
9
13
10
12
11
14
15
Pin Configuration
Terminal : Mini DIN 8-PIN
12
345876
Pin Configuration
CONTROL PORT CONNECTOR
-----
CLK
DATA
GND
-----
-----
GND
-----
R X D
-----
-----
GND
RTS / CTS
T X D...

57
APPENDIX

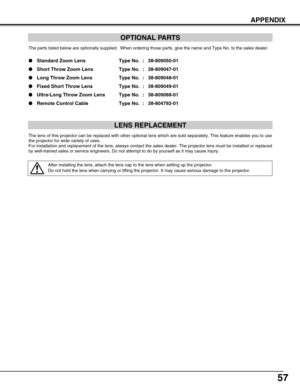

OPTIONAL PARTS
The parts listed below are optionally supplied.  When ordering those par\
ts, give the name and Type No. to the sales dealer.
Standard Zoom Lens  Type No. : 38-809050-01
 Short Throw Zoom Lens  Type No. : 38-809047-01
 Long Throw Zoom Lens Type No. : 38-809048-01
 Fixed Short Throw Lens Type No. : 38-809049-01
 Ultra-Long Throw Zoom Lens Type No. : 38-809068-01
 Remote Control Cable Type No. : 38-804792-01
LENS REPLACEMENT
The lens of this projector can be replaced with...

58
APPENDIX

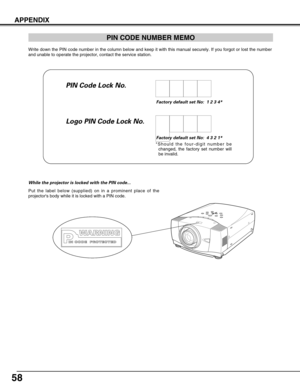

Write down the PIN code number in the column below and keep it with this\
 manual securely. If you forgot or lost the number
and unable to operate the projector, contact the service station.

Factory default set No:  1 2 3 4*Factory default set No:  4 3 2 1*

*Should the four-digit number be changed, the factory set number will
be invalid.
Put the label below (supplied) on in a prominent place of the
projectors body while it is locked with a PIN code.

While the projector is locked with the...

59
APPENDIX

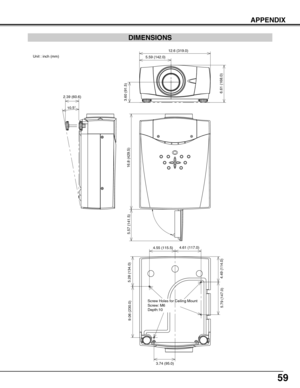

DIMENSIONS

2.39 (60.6)
10.5°
16.8 (429.5)
12.6 (319.0)
6.61 (168.0)
3.60 (91.5)
5.59 (142.0)
5.57 (141.5)
Screw Holes for Ceiling Mount
Screw: M6
Depth:10
 9.06 (230.0)
5.28 (134.0)
4.49 (114.0)
 4.55 (115.5)  4.61 (117.0)
3.74 (95.0)
 5.79 (147.0)
Unit : inch (mm)

1AA6P1P5361-- (M4YKL)
