Christie Digital Systems Lw300 Model 103-011100-01 Users Manual

11
PREPARATION

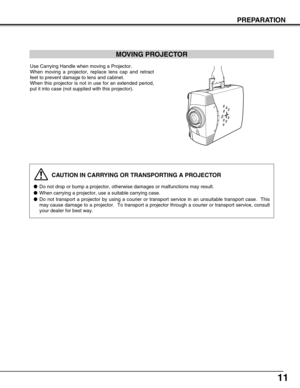

CAUTION IN CARRYING OR TRANSPORTING A PROJECTOR
Do not drop or bump a projector, otherwise damages or malfunctions may r\
esult.
 When carrying a projector, use a suitable carrying case.
 Do not transport a projector by using a courier or transport service in \
an unsuitable transport case.  This
may cause damage to a projector.  To transport a projector through a cou\
rier or transport service, consult
your dealer for best way.

MOVING PROJECTOR

Use Carrying Handle when moving a...

12
CONNECTING PROJECTOR

S–VIDEO
R–AUDIO–L
VIDEO/Y Cb/Pb    Cr/Pr VIDEO/Y Cb/Pb Cr/Pr
RESETCONTROL PORT AUDIO 1
AUDIO 2
ANALOG
DIGITAL(DVI-D)
INPUT 1
INPUT 2
INPUT 3
R/C JACK
G B R H/V V
(MONO )

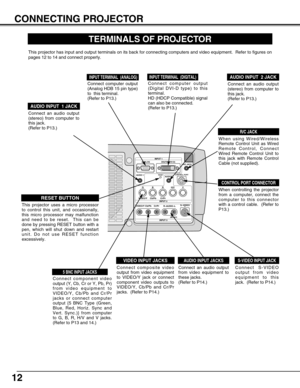

TERMINALS OF PROJECTOR
When controlling the projector
from a computer, connect the
computer to this connector
with a control cable.  (Refer to
P13.)
Connect S-VIDEO
output from video
equipment to this
jack.  (Refer to P14.)  Connect an audio output
from video equipment to
these jacks.
(Refer to P14.)
CONTROL...

13
CONNECTING PROJECTOR

S–VIDEO
R –AUDIO –L
VIDEO/Y Cb/Pb    Cr/Pr VIDEO/Y Cb/Pb Cr/Pr
RESETCONTROL PORT AUDIO 1
AUDIO 2
ANALOG
DIGITAL(DVI-D)
INPUT 1
INPUT 2
INPUT 3
R/C JACK
G B R H/V V
(MONO )

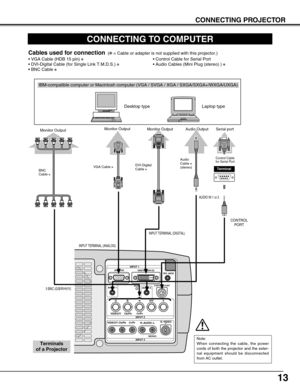

CONNECTING TO COMPUTER
IBM-compatible computer or Macintosh computer (VGA / SVGA / XGA / SXGA/\
SXGA+/WXGA/UXGA)
Monitor Output
Desktop type Laptop type
Control Cable
for Serial Port
Serial port
Audio Output
CONTROL
PORT
AUDIO IN 1 or 2
INPUT TERMINAL (ANALOG)
Cables used for connection(✽= Cable or adapter...

14
CONNECTING PROJECTOR

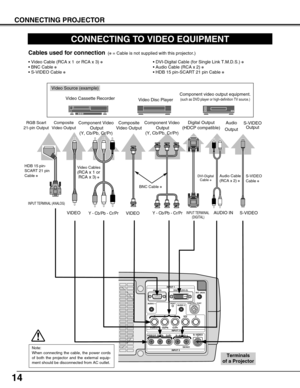

CONNECTING TO VIDEO EQUIPMENT

S–VIDEO
R –AUDIO –L
VIDEO/Y Cb/Pb    Cr/Pr VIDEO/Y Cb/Pb Cr/Pr
RESETCONTROL PORT AUDIO 1
AUDIO 2
ANALOG
DIGITAL(DVI-D)
INPUT 1
INPUT 2
INPUT 3
R/C JACK
G B R H/V V
(MONO )
Video Source (example)
Video Cassette Recorder Video Disc Player
S-VIDEO
Cable ✽
Terminals
of a Projector
S-VIDEO Output
Cables used for connection(✽= Cable is not supplied with this projector.)
Audio Cable
(RCA x 2) ✽
AUDIO IN S-VIDEOY - Cb/Pb - Cr/PrVIDEO Component video...

15
BEFORE OPERATION

ON-OFF
SELECT
COLOR M.MENU
LIGHTI
-
INPUT
2
3
SCREEN
L
L 1
D.ZOOM
NO SHOWFREEZE
MUTE
Z
Z
F F
KE YS.
I
I
INPUT IMAGE
SELECTION
KEYSTONE
FOCUS
LENS ZOOM
VOLUME-VOLUME+
AUTO PC
AUTO

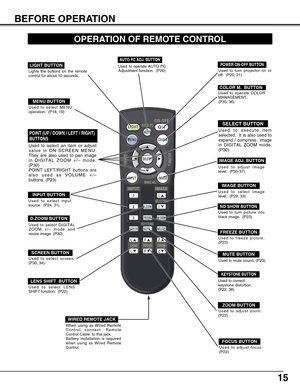

OPERATION OF REMOTE CONTROL
LIGHT BUTTON
Lights the buttons on the remote
control for about 10 seconds.
Used to select input
source.  (P24, 31)
POWER ON-OFF BUTTON
Used to turn projector on or
off.  (P20, 21)
MENU BUTTON
Used to select MENU
operation.  (P18, 19)
INPUT BUTTON
MUTE BUTTON
Used to mute sound....

16
BEFORE OPERATION

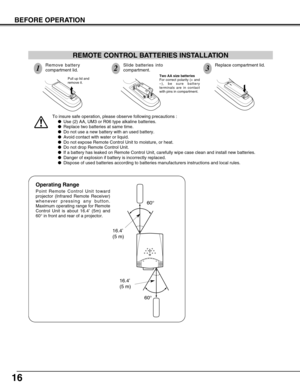

To insure safe operation, please observe following precautions :


Use (2) AA, UM3 or R06 type alkaline batteries.


Replace two batteries at same time.


Do not use a new battery with an used battery.


Avoid contact with water or liquid.


Do not expose Remote Control Unit to moisture, or heat.


Do not drop Remote Control Unit.


If a battery has leaked on Remote Control Unit, carefully wipe case clea\
n and install new batteries.


Danger of explosion if battery is...

17
BEFORE OPERATION

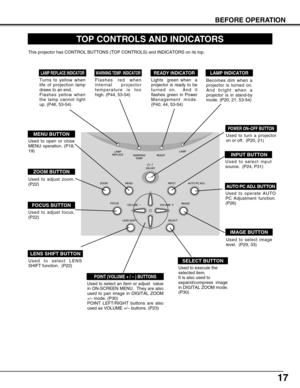

TOP CONTROLS AND INDICATORS

Used to open or close
MENU operation. (P18,
19)

MENU BUTTON
IMAGE BUTTON
READY INDICATOR
SELECT BUTTON
POWER ON–OFF BUTTON
INPUT BUTTON
WARNING TEMP. INDICATORLAMP INDICATOR
POINT (VOLUME + /  – ) BUTTONS
LAMP REPLACE INDICATOR

Used to select image
level.  (P29, 33)
Lights  green when  a
projector is ready to be
turned on.  And it
flashes green in Power
Management mode.
(P40, 44, 53-54)Becomes dim when a
projector is turned on.
And bright when a...

18
BEFORE OPERATION

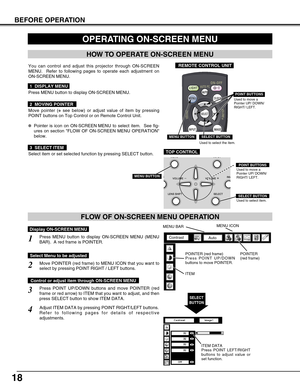

HOW TO OPERATE ON-SCREEN MENU
You can control and adjust this projector through ON-SCREEN
MENU.  Refer to following pages to operate each adjustment on
ON-SCREEN MENU.
2  MOVING POINTER
3  SELECT ITEM
Move pointer (✽see below) or adjust value of item by pressing
POINT buttons on Top Control or on Remote Control Unit.
Select item or set selected function by pressing SELECT button.
OPERATING ON-SCREEN MENU
✽ Pointer is icon on ON-SCREEN MENU to select item.  See fig-
ures on section...

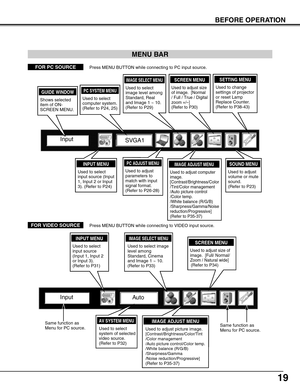

19
BEFORE OPERATION
MENU BAR
FOR PC SOURCEPress MENU BUTTON while connecting to PC input source.
FOR VIDEO SOURCEPress MENU BUTTON while connecting to VIDEO input source.

PC SYSTEM MENU

Used to select
computer system.
(Refer to P24, 25)

SETTING MENU

Used to change
settings of projector
or reset Lamp
Replace Counter.
(Refer to P38-43)

IMAGE SELECT MENU

Used to select
image level among
Standard, Real
and Image 1 ~ 10.
(Refer to P29)
GUIDE WINDOW

Shows selected
item of ON-
SCREEN MENU.

SCREEN...

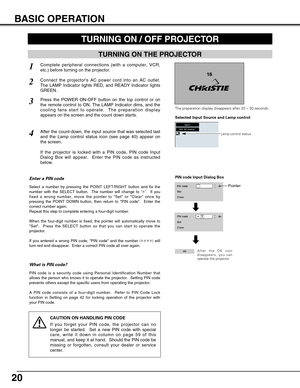

20
BASIC OPERATION
TURNING ON THE PROJECTOR
TURNING ON / OFF PROJECTOR
Connect the projectors AC power cord into an AC outlet.
The LAMP Indicator lights RED, and READY Indicator lights
GREEN.
Press the POWER ON-OFF button on the top control or on
the remote control to ON. The LAMP Indicator dims, and the
cooling fans start to operate.  The preparation display
appears on the screen and the count down starts.
2
3
1

16

The preparation display disappears after 20
~
30 seconds.

4
After the count-down,...
