Christie Projector Roadie HD+35K User Manual

Section 6: Specifications
Roadie HD+35K User Manual6-5020-100340-02 Rev. 1  (01-2010)

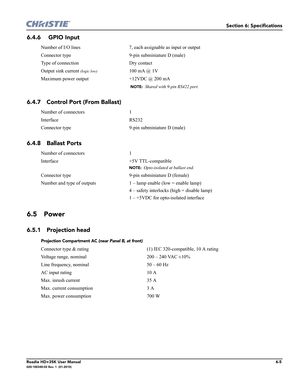

6.4.6  GPIO Input
6.4.7 Control Port (From Ballast)
6.4.8 Ballast Ports
6.5 Power
6.5.1 Projection head
Number of I/O lines 7, each assignable as input or output
Connector type 9-pin subminiature D (male)
Type of connection Dry contact
Output sink current
(logic low)100 mA @ 1V
Maximum power output +12VDC @ 200 mA

NOTE:  Shared with 9-pin RS422 port.
Number of connectors 1
Interface RS232
Connector type 9-pin...

6-6Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 6: Specifications

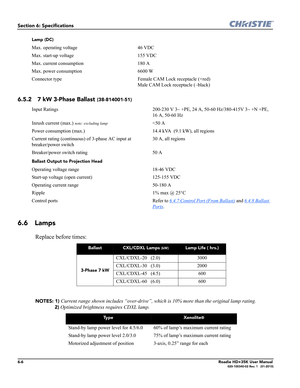

6.5.2 7 kW 3-Phase Ballast (38-814001-51)
6.6 Lamps
Replace before times:
NOTES: 1) Current range shown includes “over-drive”, which is 10% more than the original lamp rating.
2) Optimized brightness requires CDXL lamp.
Lamp (DC)
Max. operating voltage 46 VDC
Max. start-up voltage 155 VDC
Max. current consumption 180 A
Max. power consumption 6600 W
Connector type Female CAM Lock receptacle (+red)
Male CAM Lock...

Section 6: Specifications
Roadie HD+35K User Manual6-7020-100340-02 Rev. 1  (01-2010)

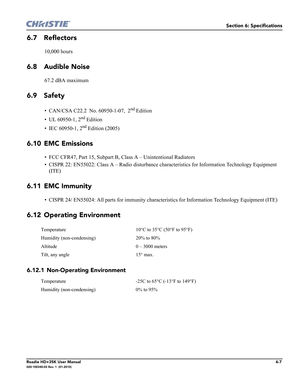

6.7 Reflectors
10,000 hours
6.8 Audible Noise
67.2 dBA maximum
6.9 Safety
• CAN/CSA C22.2  No. 60950-1-07,  2nd Edition
• UL 60950-1, 2
nd Edition
• IEC 60950-1, 2
nd Edition (2005)
6.10 EMC Emissions
• FCC CFR47, Part 15, Subpart B, Class A – Unintentional Radiators
• CISPR 22: EN55022: Class A – Radio disturbance characteristics for Information Technology Equipment
(ITE)
6.11 EMC Immunity
• CISPR 24/ EN55024: All...

6-8Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 6: Specifications

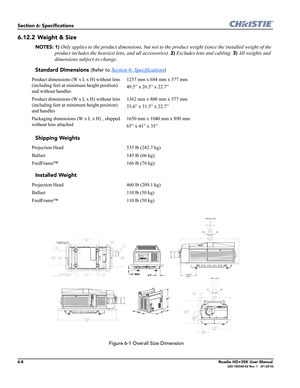

6.12.2 Weight & Size
NOTES: 1) Only applies to the product dimensions, but not to the product weight (since the installed weight of the
product includes the heaviest lens, and all accessories).
2) Excludes lens and cabling. 3) All weights and
dimensions subject-to-change.
Standard Dimensions (Refer to Section 6: Specifications)
Shipping Weights
Installed Weight
 Figure 6-1 Overall Size Dimension Product dimensions...

Section 6: Specifications
Roadie HD+35K User Manual6-9020-100340-02 Rev. 1  (01-2010)

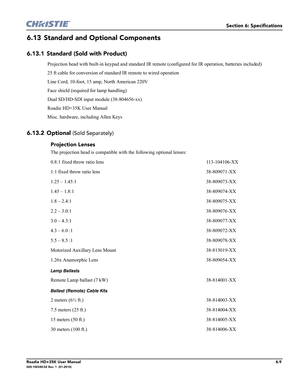

6.13 Standard and Optional Components
6.13.1 Standard (Sold with Product)
6.13.2 Optional
(Sold Separately)
Projection head with built-in keypad and standard IR remote (configured for IR operation, batteries included)
25 ft cable for conversion of standard IR remote to wired operation
Line Cord, 10-foot, 15 amp, North American 220V
Face shield (required for lamp handling)
Dual SD/HD-SDI input module (38-804656-xx)...

6-10Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 6: Specifications

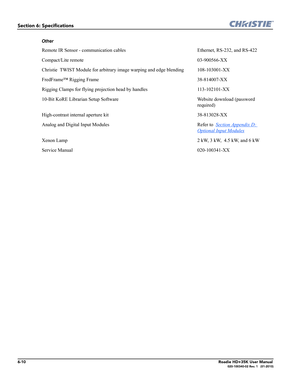

Other
Remote IR Sensor - communication cables  Ethernet, RS-232, and RS-422
Compact/Lite remote 03-900566-XX
Christie  TWIST Module for arbitrary image warping and edge blending  108-103001-XX
FredFrame™ Rigging Frame   38-814007-XX
Rigging Clamps for flying projection head by handles  113-102101-XX
10-Bit KoRE Librarian Setup Software Website download (password
required)
High-contrast internal aperture kit...

Roadie HD+35K User ManualA-1020-100340-02 Rev. 1 (01-2010)

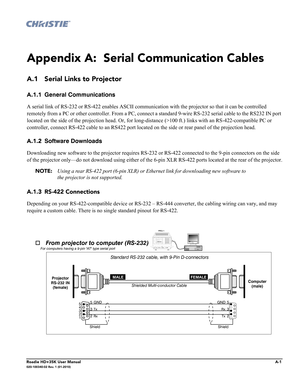

Appendix A:  Serial Communication Cables
A.1 Serial Links to Projector
A.1.1General Communications
A serial link of RS-232 or RS-422 enables ASCII communication with the projector so that it can be controlled
remotely from a PC or other controller. From a PC, connect a standard 9-wire RS-232 serial cable to the RS232 IN port
located on the side of the projection head. Or, for long-distance (>100 ft.) links with an RS-422-compatible PC or...

A-2Roadie HD+35K User Manual020-100340-02 Rev. 1 (01-2010)
Appendix A: Serial Communication Cables
Shielded Multi-conductor Cable
MALE
2 1
3
4
56
8 7
9
Projector
RS-422 IN
(female)
Wiring

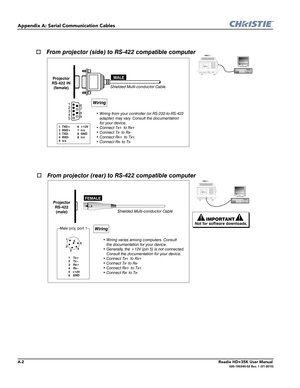

From projector (side) to RS-422 compatible computer
• Wiring from your controller (or RS-232-to-RS-422
adapter) may vary. Consult the documentation
for your device.
• Connect Tx+  to Rx+
• Connect Tx- to Rx-
• Connect Rx+  to Tx+
• Connect Rx- to Tx-
1  TXD+
2  RXD+
3  TXD-
4  RXD-
5  n/c6  +12V
7  n/c
8  GND
9  n/c...

Appendix A: Serial Communication Cables
Roadie HD+35K User ManualA-3020-100340-02 Rev. 1 (01-2010)
Shielded Multi-conductor Cable
MALE FEMALE
From projector to projector via RS-232
Standard RS-232 cable,with 9-Pin D Connectors
Projector
RS-232 OUT
(male)Projector
RS-232 IN
(female)
ShieldShield
22
5
4
3
2
13 5
3
5GNDGND
Tx
Rx
Rx
Tx
PROJ 2PROJ 1
Shielded Multi-conductor RS-422 Cablewith 6-pin XLR Connectors

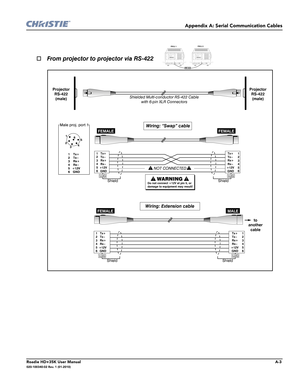

From projector to projector via RS-422
Projector
RS-422
(male)Projector
RS-422
(male)
MALE...

A-4Roadie HD+35K User Manual020-100340-02 Rev. 1 (01-2010)
Appendix A: Serial Communication Cables
Shielded Multi-conductor Cable
MALE FEMALE

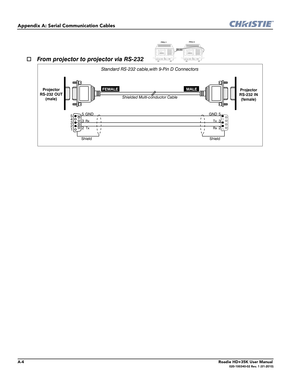

From projector to projector via RS-232
Standard RS-232 cable,with 9-Pin D Connectors
Projector
RS-232 OUT
(male)Projector
RS-232 IN
(female)
ShieldShield
22
5
4
3
2
135
3
5GNDGND
Tx
Rx
Rx
Tx
PROJ 2PROJ 1
