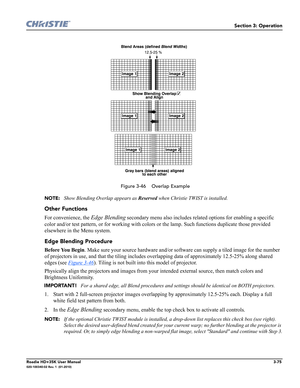

 Figure 3-46    Overlap Example
NOTE:
Show Blending Overlap appears as Reserved when Christie TWIST is installed.
Other Functions
For convenience, the Edge Blending secondary menu also includes related options for enabling a specific
color and/or test pattern, or for working with colors or the lamp. Such functions duplicate those provided
elsewhere in the Menu system.
Edge Blending Procedure
Before You Begin. Make...

3-76Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation

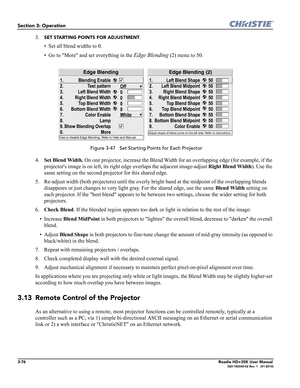

3.SET STARTING POINTS FOR ADJUSTMENT.
• Set all blend widths to 0.
• Go to More and set everything in the
Edge Blending (2) menu to 50.
 Figure 3-47   Set Starting Points for Each Projector
4.Set Blend Width. On one projector, increase the Blend Width for an overlapping edge (for example, if the
projectors image is on left, its right edge overlaps the adjacent image-adjust Right Blend Width). Use the
same setting on the...

Section 3: Operation
Roadie HD+35K User Manual3-77020-100340-02 Rev. 1  (01-2010)

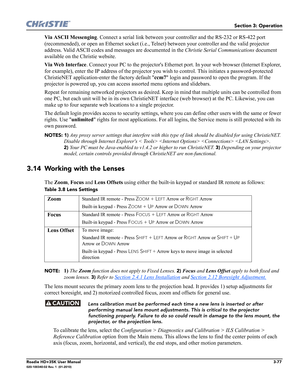

Via ASCII Messenging. Connect a serial link between your controller and the RS-232 or RS-422 port
(recommended), or open an Ethernet socket (i.e., Telnet) between your controller and the valid projector
address. Valid ASCII codes and messages are documented in the Christie Serial Communications document
available on the Christie website.
Via Web Interface. Connect your PC to the projectors Ethernet port. In your web...

3-78Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation

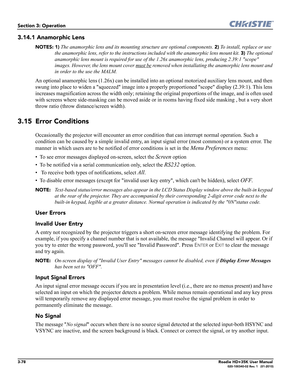

3.14.1 Anamorphic Lens
NOTES: 1) The anamorphic lens and its mounting structure are optional components. 2) To install, replace or use
the anamorphic lens, refer to the instructions included with the anamorphic lens mount kit.
3) The optional
anamorphic lens mount is required for use of the 1.26x anamorphic lens, producing 2.39:1 scope
images. However, the lens mount cover must be
 removed when installating the...

Section 3: Operation
Roadie HD+35K User Manual3-79020-100340-02 Rev. 1  (01-2010)

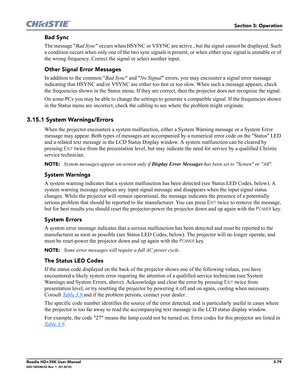

Bad Sync
The message Bad Sync occurs when HSYNC or VSYNC are active , but the signal cannot be displayed. Such
a condition occurs when only one of the two sync signals is present, or when either sync signal is unstable or of
the wrong frequency. Correct the signal or select another input.
Other Signal Error Messages
In addition to the common Bad Sync and No Signal errors, you may encounter a signal error message...

3-80Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation

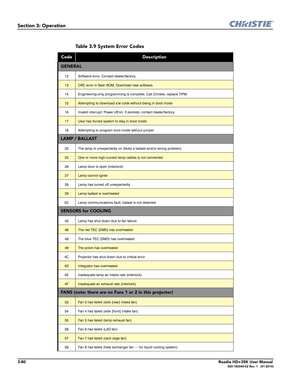

Table 3.9 System Error Codes
CodeDescription
GENERAL
12 Software error. Contact dealer/factory.
13CRC error in flash ROM. Download new software.
14 Engineering-only programming is complete. Call Christie, replace TIPM.
15Attempting to download s/w code without being in boot mode
16 Invalid interrupt. Power off/on. If persists, contact dealer/factory.
17User has forced system to stay in boot mode
18 Attempting to program...

Section 3: Operation
Roadie HD+35K User Manual3-81020-100340-02 Rev. 1  (01-2010)

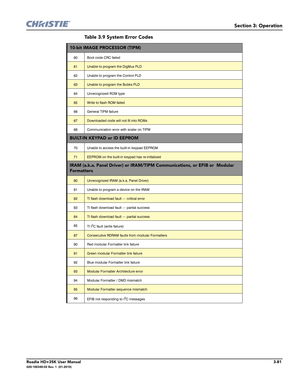

10-bit IMAGE PROCESSOR (TIPM)
60 Boot code CRC failed
61Unable to program the DigMux PLD
62 Unable to program the Control PLD
63Unable to program the Bubks PLD
64 Unrecognized ROM type
65Write to flash ROM failed
66 General TIPM failure
67Downloaded code will not fit into ROMs
68 Communication error with scaler on TIPM
BUILT-IN KEYPAD or ID EEPROM
70 Unable to access the built-in keypad EEPROM
71EEPROM on the built-in...

3-82Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation

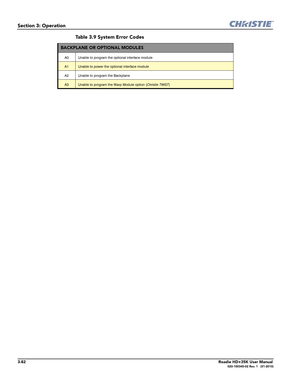

BACKPLANE OR OPTIONAL MODULES
A0 Unable to program the optional interface module
A1Unable to power the optional interface module
A2 Unable to program the Backplane
A3Unable to program the Warp Module option (Christie TWIST)
Table 3.9 System Error Codes

Roadie HD+35K User Manual4-1020-100340-02 Rev. 1   (01-2010)

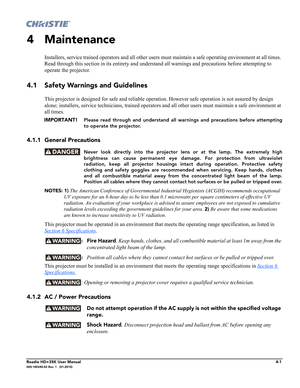

4 Maintenance
Installers, service trained operators and all other users must maintain a safe operating environment at all times.
Read through this section in its entirety and understand all warnings and precautions before attempting to
operate the projector.
4.1 Safety Warnings and Guidelines
This projector is designed for safe and reliable operation. However safe operation is not assured by design
alone; installers, service technicians,...

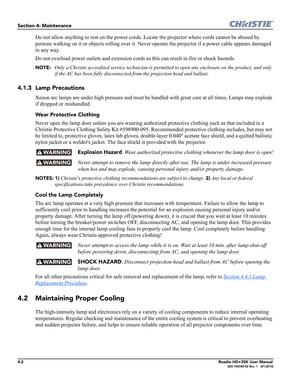

4-2Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 4: Maintenance
Do not allow anything to rest on the power cords. Locate the projector where cords cannot be abused by
persons walking on it or objects rolling over it. Never operate the projector if a power cable appears damaged
in any way.
Do not overload power outlets and extension cords as this can result in fire or shock hazards.
NOTE: Only a Christie accredited service technician is permitted to open any enclosure on the product,...
