Christie Projector Roadie HD+35K User Manual

Section 3: Operation
Roadie HD+35K User Manual3-55020-100340-02 Rev. 1  (01-2010)

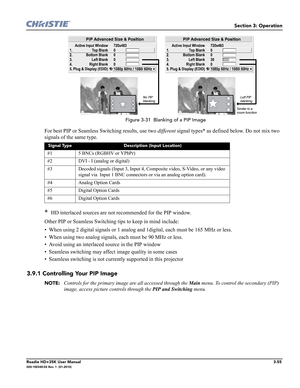

For best PIP or Seamless Switching results, use two different signal types* as defined below. Do not mix two
signals of the same type.
*  HD interlaced sources are not recommended for the PIP window.
Other PIP or Seamless Switching tips to keep in mind include:
• When using 2 digital signals or 1 analog and 1digital, each must be 165 MHz or less.
• When using two analog signals, each must be 90 MHz or less.
• Avoid...

3-56Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation

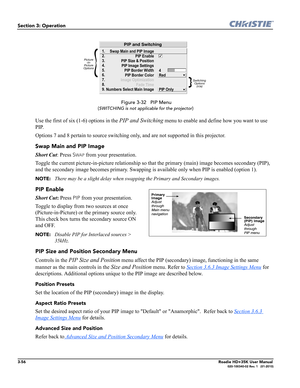

 Figure 3-32   PIP Menu
(
SWITCHING is not applicable for the projector)
Use the first of six (1-6) options in the PIP and Switching menu to enable and define how you want to use
PIP.
Options 7 and 8 pertain to source switching only, and are not supported in this projector.
Swap Main and PIP Image
Short Cut: Press SWAP from your presentation.
Toggle the current picture-in-picture relationship so that the primary (main)...

Section 3: Operation
Roadie HD+35K User Manual3-57020-100340-02 Rev. 1  (01-2010)

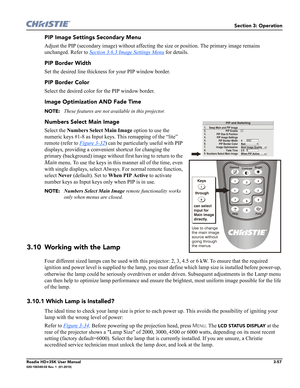

PIP Image Settings Secondary Menu
Adjust the PIP (secondary image) without affecting the size or position. The primary image remains
unchanged. Refer to Section 3.6.3 Image Settings Menu
 for details.
PIP Border Width
Set the desired line thickness for your PIP window border.
PIP Border Color
Select the desired color for the PIP window border.
Image Optimization AND Fade Time
NOTE: These features are not available in...

3-58Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation

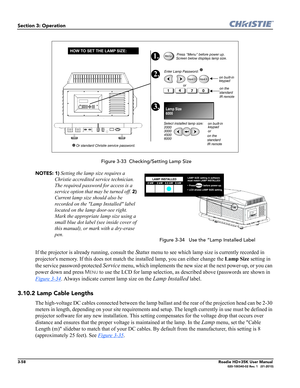

 Figure 3-33  Checking/Setting Lamp Size
NOTES: 1)
 Setting the lamp size requires a
Christie accredited service technician.
The required password for access is a
service option that may be turned off.
2)
Current lamp size should also be
recorded on the Lamp Installed label
located on the lamp door-see right.
Mark the appropriate lamp size using a
small blue dot label (see inside cover of
this manual), or mark...

Section 3: Operation
Roadie HD+35K User Manual3-59020-100340-02 Rev. 1  (01-2010)

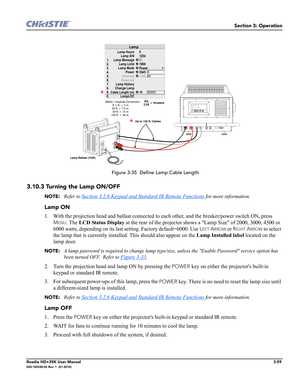

 Figure 3-35  Define Lamp Cable Length
3.10.3 Turning the Lamp ON/OFF
NOTE: Refer to Section 3.2.6 Keypad and Standard IR Remote Functions for more information.
Lamp ON
1. With the projection head and ballast connected to each other, and the breaker/power switch ON, press
MENU. The LCD Status Display at the rear of the projector shows a Lamp Size of 2000, 3000, 4500 or
6000 watts, depending on its last setting. Factory...

3-60Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation

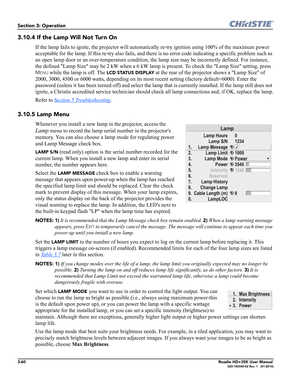

3.10.4 If the Lamp Will Not Turn On
If the lamp fails to ignite, the projector will automatically re-try ignition using 100% of the maximum power
acceptable for the lamp. If this re-try also fails, and there is no error code indicating a specific problem such as
an open lamp door or an over-temperature condition, the lamp size may be incorrectly defined. For instance,
the defined Lamp Size may be 2 kW when a 6 kW lamp...

Section 3: Operation
Roadie HD+35K User Manual3-61020-100340-02 Rev. 1  (01-2010)

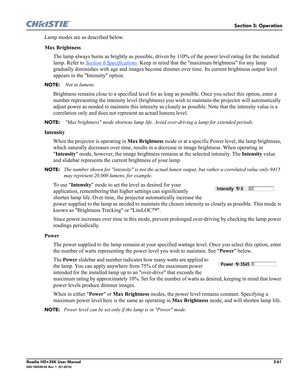

Lamp modes are as described below.
Max Brightness
The lamp always burns as brightly as possible, driven by 110% of the power level rating for the installed
lamp. Refer to Section 6 Specifications
. Keep in mind that the maximum brightness for any lamp
gradually diminishes with age and images become dimmer over time. Its current brightness output level
appears in the Intensity option.
NOTE: Not in lumens.
Brightness...

3-62Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation

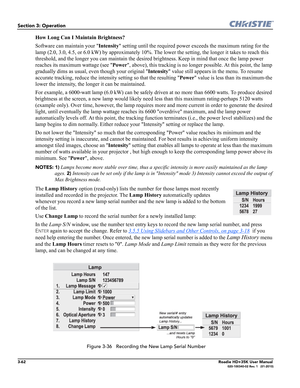

How Long Can I Maintain Brightness?
Software can maintain your Intensity setting until the required power exceeds the maximum rating for the
lamp (2.0, 3.0, 4.5, or 6.0 kW) by approximately 10%. The lower the setting, the longer it takes to reach this
threshold, and the longer you can maintain the desired brightness. Keep in mind that once the lamp power
reaches its maximum wattage (see Power, above), this tracking is...

Section 3: Operation
Roadie HD+35K User Manual3-63020-100340-02 Rev. 1  (01-2010)

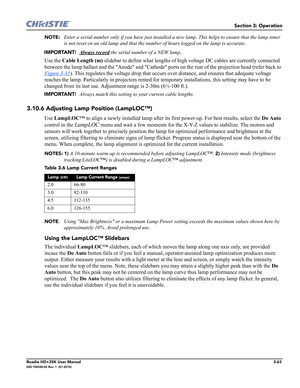

NOTE: Enter a serial number only if you have just installed a new lamp. This helps to ensure that the lamp timer
is not reset on an old lamp and that the number of hours logged on the lamp is accurate.
IMPORTANT
! Always record the serial number of a NEW lamp.
Use the Cable Length (m) slidebar to define what lengths of high voltage DC cables are currently connected
between the lamp ballast and the Anode and Cathode ports...

3-64Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation

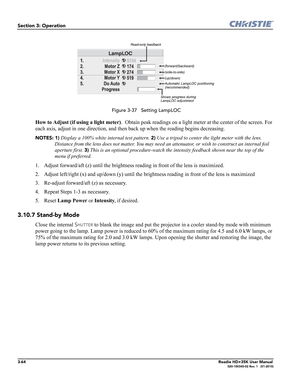

 Figure 3-37   Setting LampLOC
How to Adjust (if using a light meter).  Obtain peak readings on a light meter at the center of the screen. For
each axis, adjust in one direction, and then back up when the reading begins decreasing.
NOTES: 1) Display a 100% white internal test pattern. 2) Use a tripod to center the light meter with the lens.
Distance from the lens does not matter. You may need an attenuator, or wish to...
