Christie Projector Roadie HD+35K User Manual

Section 3: Operation
Roadie HD+35K User Manual3-65020-100340-02 Rev. 1  (01-2010)

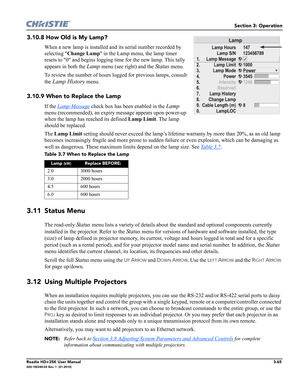

3.10.8 How Old is My Lamp?
When a new lamp is installed and its serial number recorded by
selecting Change Lamp in the Lamp menu, the lamp timer
resets to 0 and begins logging time for the new lamp. This tally
appears in both the
Lamp menu (see right) and the Status menu.
To review the number of hours logged for previous lamps, consult
the
Lamp History menu.
3.10.9 When to Replace the Lamp
If the Lamp Message check...

3-66Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation

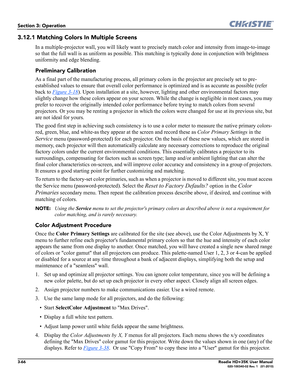

3.12.1 Matching Colors In Multiple Screens
In a multiple-projector wall, you will likely want to precisely match color and intensity from image-to-image
so that the full wall is as uniform as possible. This matching is typically done in conjunction with brightness
uniformity and edge blending.
Preliminary Calibration
As a final part of the manufacturing process, all primary colors in the projector are precisely set to...

Section 3: Operation
Roadie HD+35K User Manual3-67020-100340-02 Rev. 1  (01-2010)

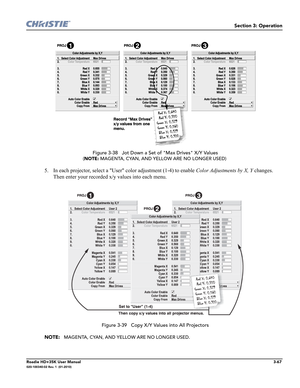

 Figure 3-38   Jot Down a Set of "Max Drives" X/Y Values
(NOTE: MAGENTA, CYAN, AND YELLOW ARE NO LONGER USED)
5. In each projector, select a User color adjustment (1-4) to enable Color Adjustments by X, Y changes.
Then enter your recorded x/y values into each menu.
 Figure 3-39   Copy X/Y Values into All Projectors
NOTE:
  MAGENTA, CYAN, AND YELLOW ARE NO LONGER USED.

3-68Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation

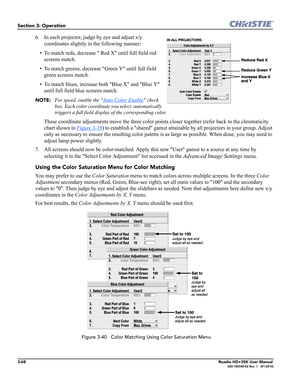

6. In each projector, judge by eye and adjust x/y
coordinates slightly in the following manner:
• To match reds, decrease  Red X until full field red
screens match.
• To match greens, decrease Green Y until full field
green screens match.
• To match blues, increase both Blue X and Blue Y
until full field blue screens match.
NOTE: For speed, enable the Auto Color Enable check
box. Each color coordinate you select...

Section 3: Operation
Roadie HD+35K User Manual3-69020-100340-02 Rev. 1  (01-2010)

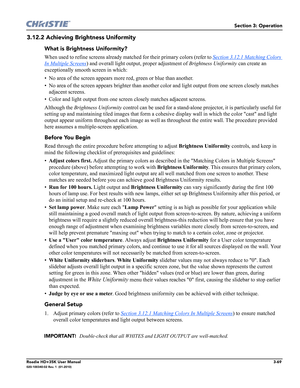

3.12.2 Achieving Brightness Uniformity
What is Brightness Uniformity?
When used to refine screens already matched for their primary colors (refer to Section 3.12.1 Matching Colors
In Multiple Screens) and overall light output, proper adjustment of Brightness Uniformity can create an
exceptionally smooth screen in which:
• No area of the screen appears more red, green or blue than another.
• No area of the screen appears...

3-70Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation

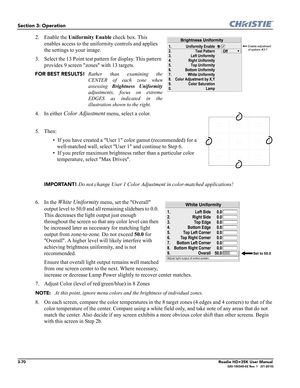

2. Enable the Uniformity Enable check box. This
enables access to the uniformity controls and applies
the settings to your image.
3. Select the 13 Point test pattern for display. This pattern
provides 9 screen zones with 13 targets.
FOR BEST RESULTS!Rather than examining the
CENTER of each zone when
assessing Brightness Uniformity
adjustments, focus on extreme
EDGES as indicated in the
illustration shown to the...

Section 3: Operation
Roadie HD+35K User Manual3-71020-100340-02 Rev. 1  (01-2010)

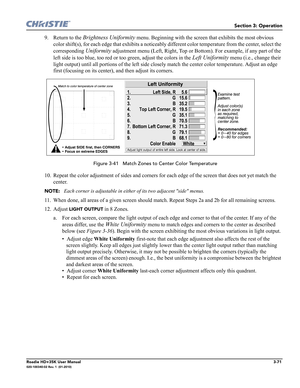

9. Return to the Brightness Uniformity menu. Beginning with the screen that exhibits the most obvious
color shift(s), for each edge that exhibits a noticeably different color temperature from the center, select the
corresponding
Uniformity adjustment menu (Left, Right, Top or Bottom). For example, if any part of the
left side is too blue, too red or too green, adjust the colors in the
Left Uniformity menu (i.e., change...

3-72Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation

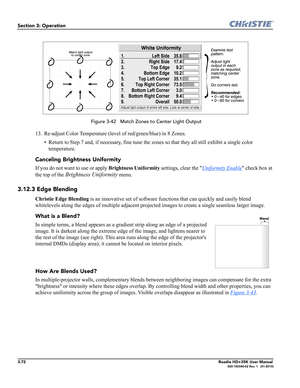

 Figure 3-42   Match Zones to Center Light Output
13. Re-adjust Color Temperature (level of red/green/blue) in 8 Zones.
• Return to Step 7 and, if necessary, fine tune the zones so that they all still exhibit a single color
temperature.
Canceling Brightness Uniformity
If you do not want to use or apply Brightness Uniformity settings, clear the Uniformity Enable check box at
the top of the
Brightness Uniformity menu....

Section 3: Operation
Roadie HD+35K User Manual3-73020-100340-02 Rev. 1  (01-2010)

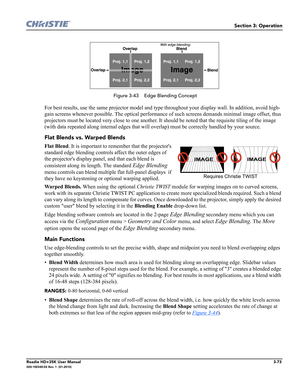

 Figure 3-43    Edge Blending Concept
For best results, use the same projector model and type throughout your display wall. In addition, avoid high-
gain screens whenever possible. The optical performance of such screens demands minimal image offset, thus
projectors must be located very close to one another. It should be noted that the requisite tiling of the image
(with data repeated along internal edges that will...

3-74Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation

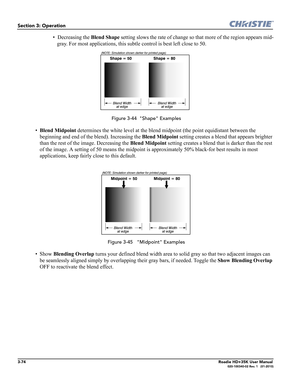

• Decreasing the Blend Shape setting slows the rate of change so that more of the region appears mid-
gray. For most applications, this subtle control is best left close to 50.
 Figure 3-44  "Shape" Examples
•Blend Midpoint determines the white level at the blend midpoint (the point equidistant between the
beginning and end of the blend). Increasing the Blend Midpoint setting creates a blend that appears brighter...
