1 Introduction
Every effort has been made to ensure the information in this document is accurate and reliable; however, due to
constant research, the information in this document is subject to change without notice.
1.1 Using this Manual
USERS/OPERATORS: This manual is intended for trained users authorized to operate professional high-
brightness projection systems, located in restricted areas, such as projection rooms in theatres. Such users...

1-2Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 1: Introduction

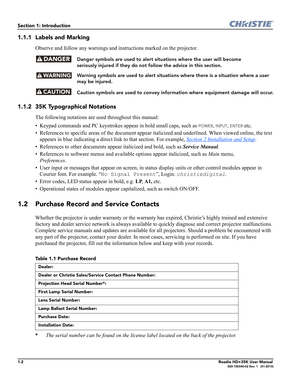

1.1.1 Labels and Marking
Observe and follow any warnings and instructions marked on the projector.
  Danger symbols are used to alert situations where the user will become
seriously injured if they do not follow the advice in this section.
  Warning symbols are used to alert situations where there is a situation where a user
may be injured.
  Caution symbols are used to convey information where equipment damage will...

Section 1: Introduction
Roadie HD+35K User Manual1-3020-100340-02 Rev. 1  (01-2010)

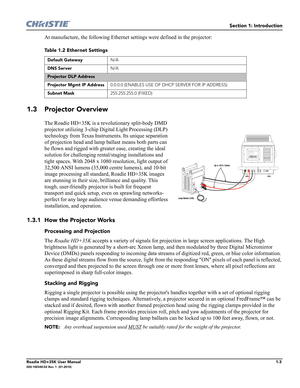

At manufacture, the following Ethernet settings were defined in the projector:
1.3 Projector Overview
The Roadie HD+35K is a revolutionary split-body DMD
projector utilizing 3-chip Digital Light Processing (DLP)
technology from Texas Instruments. Its unique separation
of projection head and lamp ballast means both parts can
be flown and rigged with greater ease, creating the ideal
solution for challenging...

1-4Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 1: Introduction

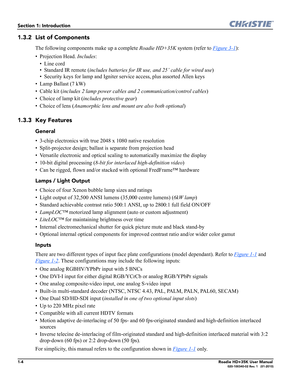

1.3.2 List of Components
The following components make up a complete Roadie HD+35K system (refer to Figure 3-1):
• Projection Head. Includes:
•Line cord
• Standard IR remote (includes batteries for IR use, and 25’ cable for wired use)
• Security keys for lamp and Igniter service access, plus assorted Allen keys
• Lamp Ballast (7 kW)
• Cable kit (includes 2 lamp power cables and 2 communication/control cables)
• Choice...

Section 1: Introduction
Roadie HD+35K User Manual1-5020-100340-02 Rev. 1  (01-2010)

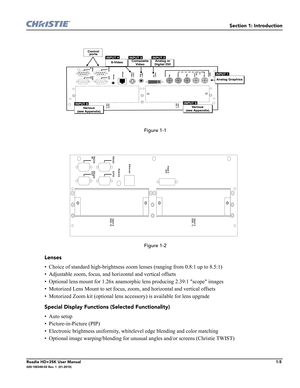

 Figure 1-1
 Figure 1-2
Lenses
• Choice of standard high-brightness zoom lenses (ranging from 0.8:1 up to 8.5:1)
• Adjustable zoom, focus, and horizontal and vertical offsets
• Optional lens mount for 1.26x anamorphic lens producing 2.39:1 scope images
• Motorized Lens Mount to set focus, zoom, and horizontal and vertical offsets
• Motorized Zoom kit (optional lens accessory) is available for lens upgrade
Special Display...

1-6Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 1: Introduction

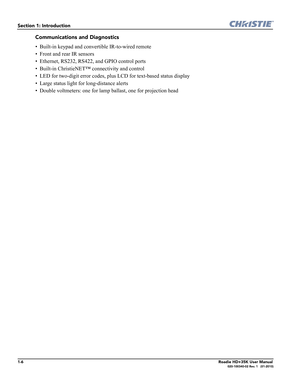

Communications and Diagnostics
• Built-in keypad and convertible IR-to-wired remote
• Front and rear IR sensors
• Ethernet, RS232, RS422, and GPIO control ports
• Built-in ChristieNET™ connectivity and control
• LED for two-digit error codes, plus LCD for text-based status display
• Large status light for long-distance alerts
• Double voltmeters: one for lamp ballast, one for projection head

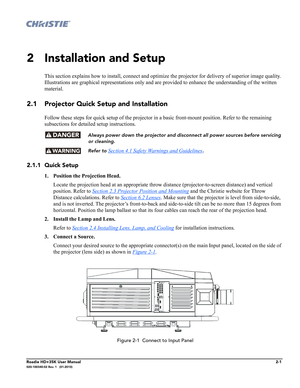

Roadie HD+35K User Manual2-1020-100340-02 Rev. 1   (01-2010)
2 Installation and Setup
This section explains how to install, connect and optimize the projector for delivery of superior image quality.
Illustrations are graphical representations only and are provided to enhance the understanding of the written
material.
2.1 Projector Quick Setup and Installation
Follow these steps for quick setup of the projector in a basic front-mount position. Refer to the remaining
subsections for detailed setup...

2-2Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 2: Installation and  Setup

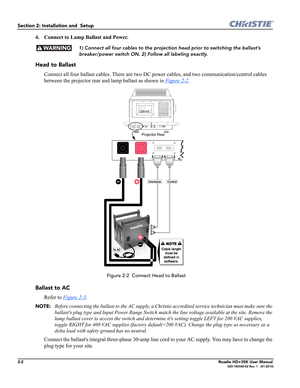

4. Connect to Lamp Ballast and Power.

1) Connect all four cables to the projection head prior to switching the ballast’s
breaker/power switch ON. 2) Follow all labeling exactly.
Head to Ballast
Connect all four ballast cables. There are two DC power cables, and two communication/control cables
between the projector rear and lamp ballast as shown in Figure 2-2
.
 Figure 2-2  Connect Head to Ballast...

Section 2: Installation and  Setup
Roadie HD+35K User Manual2-3020-100340-02 Rev. 1  (01-2010)

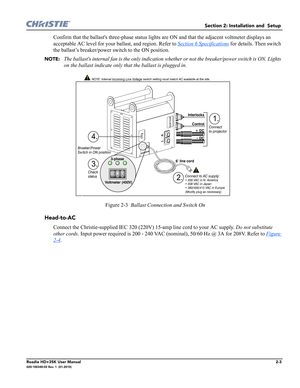

Confirm that the ballasts three-phase status lights are ON and that the adjacent voltmeter displays an
acceptable AC level for your ballast, and region. Refer to Section 6 Specifications
 for details. Then switch
the ballast’s breaker/power switch to the ON position.
NOTE:  The ballasts internal fan is the only indication whether or not the breaker/power switch is ON. Lights
on the ballast indicate only...

2-4Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 2: Installation and  Setup

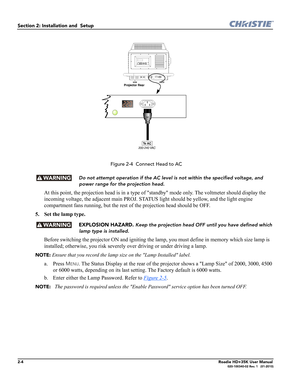

 Figure 2-4  Connect Head to AC
  Do not attempt operation if the AC level is not within the specified voltage, and
power range for the projection head.
At this point, the projection head is in a type of standby mode only. The voltmeter should display the
incoming voltage, the adjacent main PROJ. STATUS light should be yellow, and the light engine
compartment fans running, but the rest of the projection...
