Christie Projector Roadie HD+35K User Manual

Section 2: Installation and  Setup
Roadie HD+35K User Manual2-25020-100340-02 Rev. 1  (01-2010)

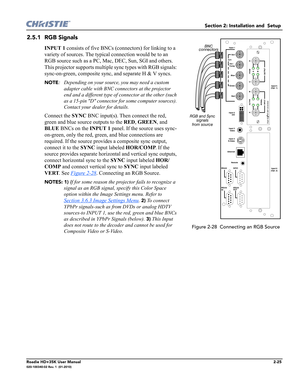

2.5.1 RGB Signals
INPUT 1 consists of five BNCs (connectors) for linking to a
variety of sources. The typical connection would be to an
RGB source such as a PC, Mac, DEC, Sun, SGI and others.
This projector supports multiple sync types with RGB signals:
sync-on-green, composite sync, and separate H & V syncs.
NOTE: Depending on your source, you may need a custom
adapter cable with BNC connectors at the...

2-26Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 2: Installation and  Setup

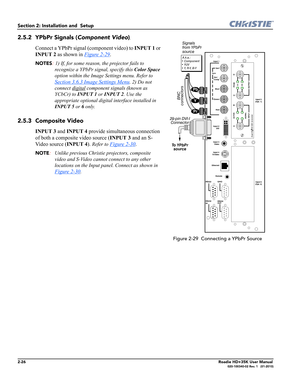

2.5.2 YPbPr Signals (Component Video).
Connect a YPbPr signal (component video) to INPUT 1 or
INPUT 2 as shown in Figure 2-29
.
NOTES: 1) If, for some reason, the projector fails to
recognize a YPbPr signal, specify this Color Space
option within the Image Settings menu. Refer to
Section 3.6.3 Image Settings Menu. 2) Do not
connect digital
 component signals (known as
YCbCr) to INPUT 1 or INPUT 2. Use...

Section 2: Installation and  Setup
Roadie HD+35K User Manual2-27020-100340-02 Rev. 1  (01-2010)

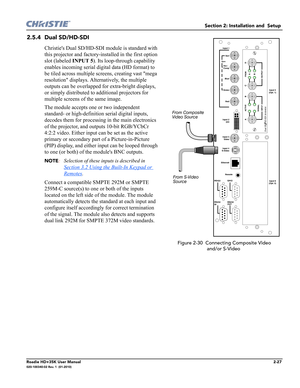

2.5.4 Dual SD/HD-SDI
Christies Dual SD/HD-SDI module is standard with
this projector and factory-installed in the first option
slot (labeled INPUT 5). Its loop-through capability
enables incoming serial digital data (HD format) to
be tiled across multiple screens, creating vast mega
resolution displays. Alternatively, the multiple
outputs can be overlapped for extra-bright displays,
or simply...

2-28Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 2: Installation and  Setup

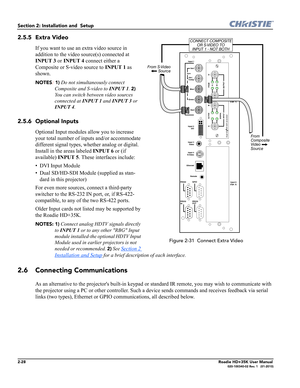

2.5.5 Extra Video
If you want to use an extra video source in
addition to the video source(s) connected at
INPUT 3 or
 INPUT 4 connect either a
Composite or S-video source to
 INPUT 1 as
shown.
NOTES: 1) Do not simultaneously connect
Composite and S-video to INPUT 1.
2)
You can switch between video sources
connected at INPUT 1 and INPUT 3 or
INPUT 4.
2.5.6 Optional Inputs
Optional Input modules...

Section 2: Installation and  Setup
Roadie HD+35K User Manual2-29020-100340-02 Rev. 1  (01-2010)

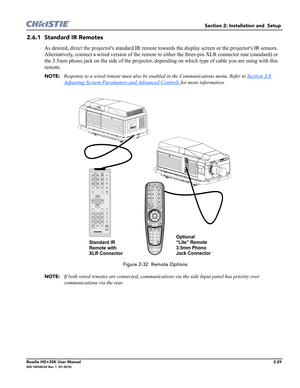

2.6.1 Standard IR Remotes
As desired, direct the projectors standard IR remote towards the display screen or the projectors IR sensors.
Alternatively, connect a wired version of the remote to either the three-pin XLR connector rear (standard) or
the 3.5mm phono jack on the side of the projector, depending on which type of cable you are using with this
remote.
NOTE:Response to a wired remote must also be...

2-30Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 2: Installation and  Setup

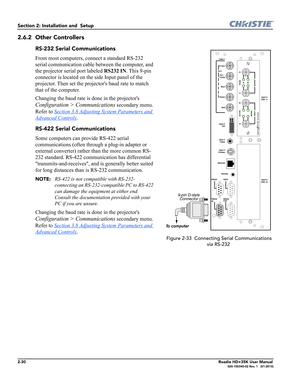

2.6.2 Other Controllers
RS-232 Serial Communications
From most computers, connect a standard RS-232
serial communication cable between the computer, and
the projector serial port labeled RS232 IN. This 9-pin
connector is located on the side Input panel of the
projector. Then set the projectors baud rate to match
that of the computer.
Changing the baud rate is done in the projectors
Configuration >...

Section 2: Installation and  Setup
Roadie HD+35K User Manual2-31020-100340-02 Rev. 1  (01-2010)

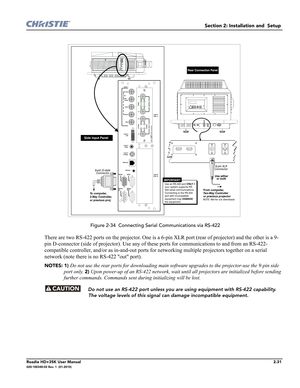

 Figure 2-34  Connecting Serial Communications via RS-422
There are two RS-422 ports on the projector. One is a 6-pin XLR port (rear of projector) and the other is a 9-
pin D-connector (side of projector). Use any of these ports for communications to and from an RS-422-
compatible controller, and/or as in-and-out ports for networking multiple projectors together on a serial
network (note there is no RS-422...

2-32Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 2: Installation and  Setup

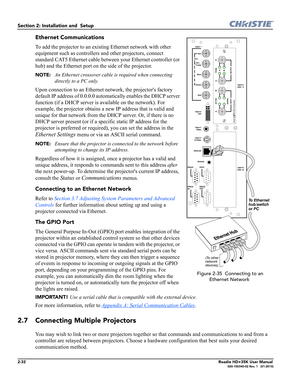

Ethernet Communications
To add the projector to an existing Ethernet network with other
equipment such as controllers and other projectors, connect
standard CAT5 Ethernet cable between your Ethernet controller (or
hub) and the Ethernet port on the side of the projector.
NOTE: An Ethernet crossover cable is required when connecting
directly to a PC only.
Upon connection to an Ethernet network, the...

Section 2: Installation and  Setup
Roadie HD+35K User Manual2-33020-100340-02 Rev. 1  (01-2010)

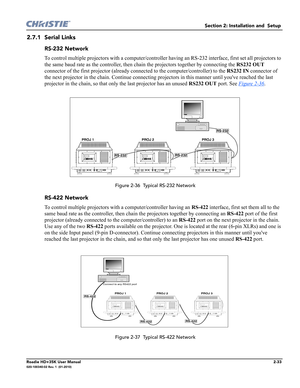

2.7.1 Serial Links
RS-232 Network
To control multiple projectors with a computer/controller having an RS-232 interface, first set all projectors to
the same baud rate as the controller, then chain the projectors together by connecting the RS232 OUT
connector of the first projector (already connected to the computer/controller) to the RS232 IN connector of
the next projector in the chain. Continue...

2-34Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 2: Installation and  Setup

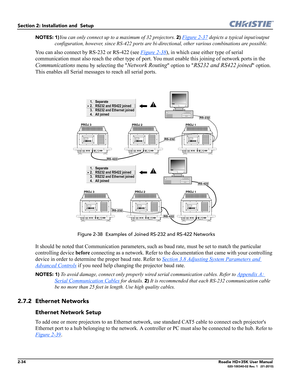

NOTES: 1)You can only connect up to a maximum of 32 projectors. 2) Figure 2-37 depicts a typical input/output
configuration, however, since RS-422 ports are bi-directional, other various combinations are possible.
You can also connect by RS-232 or RS-422 (see Figure 2-38), in which case either type of serial
communication must also reach the other type of port. You must enable this joining of network ports...
