Christie Projector Roadie HD+35K User Manual

Section 2: Installation and  Setup
Roadie HD+35K User Manual2-35020-100340-02 Rev. 1  (01-2010)

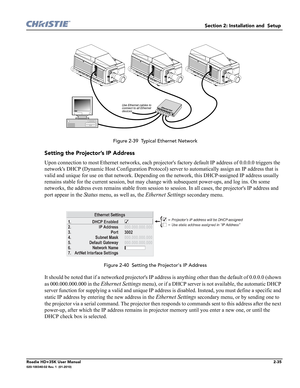

 Figure 2-39  Typical Ethernet Network
Setting the Projector’s IP Address
Upon connection to most Ethernet networks, each projectors factory default IP address of 0.0.0.0 triggers the
networks DHCP (Dynamic Host Configuration Protocol) server to automatically assign an IP address that is
valid and unique for use on that network. Depending on the network, this DHCP-assigned IP address usually
remains stable...

2-36Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 2: Installation and  Setup

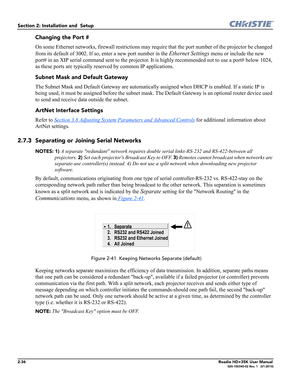

Changing the Port #
On some Ethernet networks, firewall restrictions may require that the port number of the projector be changed
from its default of 3002. If so, enter a new port number in the
Ethernet Settings menu or include the new
port# in an XIP serial command sent to the projector. It is highly recommended not to use a port# below 1024,
as these ports are typically reserved by common IP...

Section 2: Installation and  Setup
Roadie HD+35K User Manual2-37020-100340-02 Rev. 1  (01-2010)

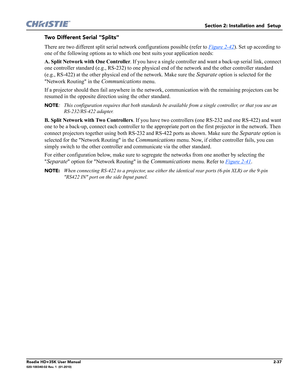

Two Different Serial "Splits"
There are two different split serial network configurations possible (refer to Figure 2-42). Set up according to
one of the following options as to which one best suits your application needs:
A. Split Network with One Controller. If you have a single controller and want a back-up serial link, connect
one controller standard (e.g., RS-232) to one physical end of the...

2-38Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 2: Installation and  Setup

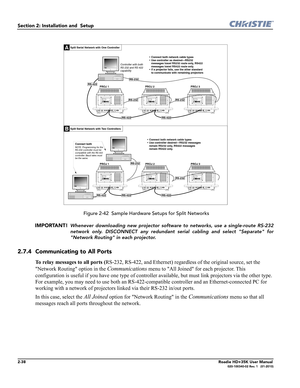

 Figure 2-42  Sample Hardware Setups for Split Networks
IMPORTANT! Whenever downloading new projector software to networks, use a single-route RS-232
network only. DISCONNECT any redundant serial cabling and select "Separate" for
"Network Routing" in each projector.
2.7.4 Communicating to All Ports
To relay messages to all ports (RS-232, RS-422, and Ethernet) regardless of the original...

Section 2: Installation and  Setup
Roadie HD+35K User Manual2-39020-100340-02 Rev. 1  (01-2010)

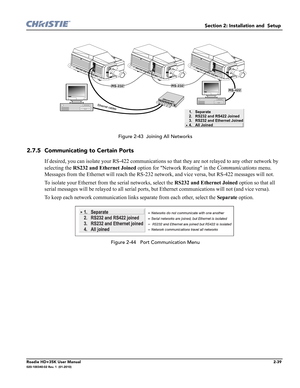

 Figure 2-43  Joining All Networks
2.7.5 Communicating to Certain Ports
If desired, you can isolate your RS-422 communications so that they are not relayed to any other network by
selecting the RS232 and Ethernet Joined option for Network Routing in the
Communications menu.
Messages from the Ethernet will reach the RS-232 network, and vice versa, but RS-422 messages will not.
To isolate your Ethernet from...

2-40Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 2: Installation and  Setup
2.7.6 Projector Numbers
It is helpful to define a unique 3-digit projector number to each projector connected in a serial network (for
instance, 001, 002, 003, etc.). These numbers enable you to direct commands to a single projector rather than
always broadcasting to the entire network. For complete information on how to assign and use projector
numbers on a serial network, refer to Section 3.8 Adjusting...

Section 2: Installation and  Setup
Roadie HD+35K User Manual2-41020-100340-02 Rev. 1  (01-2010)

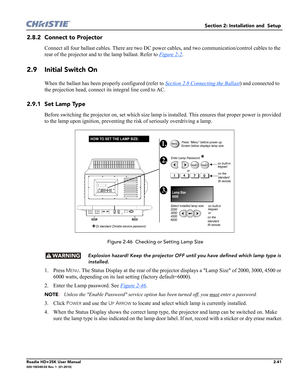

2.8.2 Connect to Projector
Connect all four ballast cables. There are two DC power cables, and two communication/control cables to the
rear of the projector and to the lamp ballast. Refer to Figure 2-2
.
2.9 Initial Switch On
When the ballast has been properly configured (refer to Section 2.8 Connecting the Ballast) and connected to
the projection head, connect its integral line cord to AC.
2.9.1 Set Lamp...

2-42Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 2: Installation and  Setup

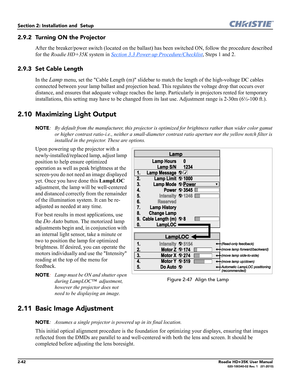

2.9.2 Turning ON the Projector
After the breaker/power switch (located on the ballast) has been switched ON, follow the procedure described
for the Roadie HD+35K system in Section 3.3 Power-up Procedure/Checklist
, Steps 1 and 2.
2.9.3 Set Cable Length
In the Lamp menu, set the Cable Length (m) slidebar to match the length of the high-voltage DC cables
connected between your lamp ballast and projection...

Section 2: Installation and  Setup
Roadie HD+35K User Manual2-43020-100340-02 Rev. 1  (01-2010)

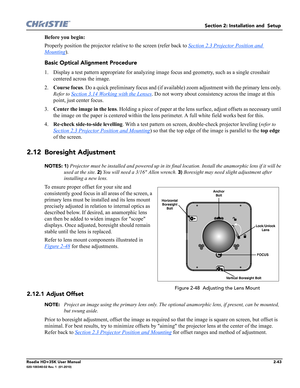

Before you begin:
Properly position the projector relative to the screen (refer back to Section 2.3 Projector Position and
Mounting).
Basic Optical Alignment Procedure
1. Display a test pattern appropriate for analyzing image focus and geometry, such as a single crosshair
centered across the image.
2.Course focus. Do a quick preliminary focus and (if available) zoom adjustment with the primary lens only....

2-44Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 2: Installation and  Setup

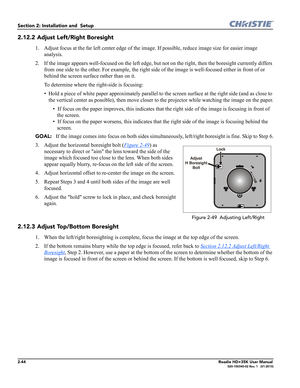

2.12.2 Adjust Left/Right Boresight
1. Adjust focus at the far left center edge of the image. If possible, reduce image size for easier image
analysis.
2. If the image appears well-focused on the left edge, but not on the right, then the boresight currently differs
from one side to the other. For example, the right side of the image is well-focused either in front of or
behind the screen surface rather...
