Christie Projector Roadie HD+35K User Manual

Section 2: Installation and  Setup
Roadie HD+35K User Manual2-45020-100340-02 Rev. 1  (01-2010)

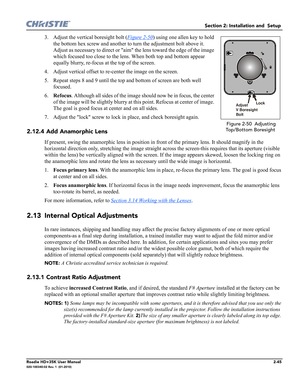

3. Adjust the vertical boresight bolt (Figure 2-50) using one allen key to hold
the bottom hex screw and another to turn the adjustment bolt above it.
Adjust as necessary to direct or aim the lens toward the edge of the image
which focused too close to the lens. When both top and bottom appear
equally blurry, re-focus at the top of the screen.
4. Adjust vertical offset to re-center the image on the...

2-46Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 2: Installation and  Setup

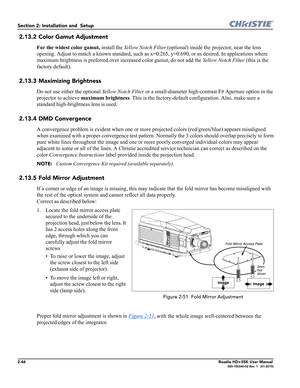

2.13.2 Color Gamut Adjustment
For the widest color gamut, install the Yellow Notch Filter (optional) inside the projector, near the lens
opening. Adjust to match a known standard, such as x=0.265, y=0.690, or as desired. In applications where
maximum brightness is preferred over increased color gamut, do not add the Yellow Notch Filter (this is the
factory default).
2.13.3 Maximizing Brightness
Do not use...

Section 2: Installation and  Setup
Roadie HD+35K User Manual2-47020-100340-02 Rev. 1  (01-2010)

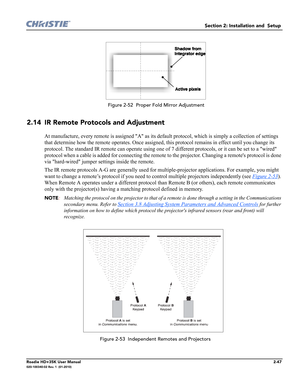

2.14 IR Remote Protocols and Adjustment
At manufacture, every remote is assigned A as its default protocol, which is simply a collection of settings
that determine how the remote operates. Once assigned, this protocol remains in effect until you change its
protocol. The standard IR remote can operate using one of 7 different protocols, or it can be set to a wired
protocol when a cable is added for...

2-48Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 2: Installation and  Setup

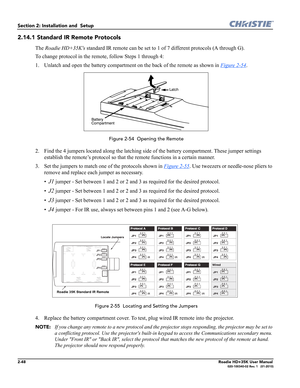

2.14.1 Standard IR Remote Protocols
The Roadie HD+35Ks standard IR remote can be set to 1 of 7 different protocols (A through G).
To change protocol in the remote, follow Steps 1 through 4:
1. Unlatch and open the battery compartment on the back of the remote as shown in Figure 2-54
.
 Figure 2-54  Opening the Remote
2. Find the 4 jumpers located along the latching side of the battery compartment. These...

Section 2: Installation and  Setup
Roadie HD+35K User Manual2-49020-100340-02 Rev. 1  (01-2010)
Shortcut Method

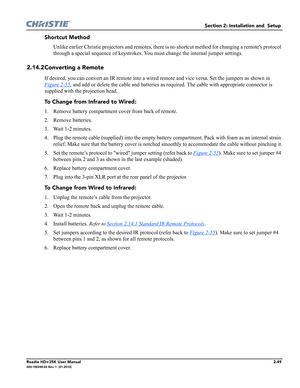

Unlike earlier Christie projectors and remotes, there is no shortcut method for changing a remotes protocol
through a special sequence of keystrokes. You must change the internal jumper settings.
2.14.2Converting a Remote
If desired, you can convert an IR remote into a wired remote and vice versa. Set the jumpers as shown in
Figure 2-55
, and add or delete the cable and batteries as...

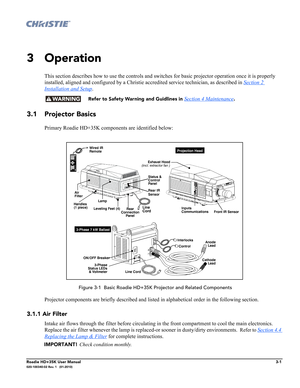

Roadie HD+35K User Manual3-1020-100340-02 Rev. 1   (01-2010)
3 Operation
This section describes how to use the controls and switches for basic projector operation once it is properly
installed, aligned and configured by a Christie accredited service technician, as described in Section 2
Installation and Setup.
  Refer to Safety Warning and Guidlines in Section 4 Maintenance.
3.1 Projector Basics
Primary Roadie HD+35K components are identified below:
 Figure 3-1  Basic Roadie HD+35K Projector and...

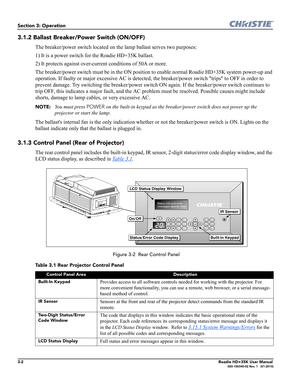

3-2Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation
3.1.2 Ballast Breaker/Power Switch (ON/OFF)
The breaker/power switch located on the lamp ballast serves two purposes:
1) It is a power switch for the Roadie HD+35K ballast.
2) It protects against over-current conditions of 50A or more.
The breaker/power switch must be in the ON position to enable normal Roadie HD+35K system power-up and
operation. If faulty or major excessive AC is detected, the breaker/power switch...

Section 3: Operation
Roadie HD+35K User Manual3-3020-100340-02 Rev. 1  (01-2010)

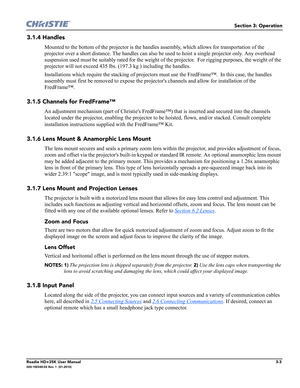

3.1.4 Handles
Mounted to the bottom of the projector is the handles assembly, which allows for transportation of the
projector over a short distance. The handles can also be used to hoist a single projector only. Any overhead
suspension used must be suitably rated for the weight of the projector.  For rigging purposes, the weight of the
projector will not exceed 435 lbs. (197.3 kg.) including the handles.
Installations...

3-4Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation

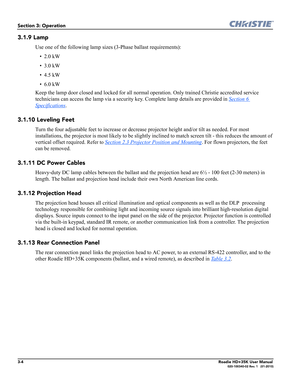

3.1.9 Lamp
Use one of the following lamp sizes (3-Phase ballast requirements):
•2.0 kW
•3.0 kW
•4.5 kW
•6.0 kW
Keep the lamp door closed and locked for all normal operation. Only trained Christie accredited service
technicians can access the lamp via a security key. Complete lamp details are provided in Section 6
Specifications.
3.1.10 Leveling Feet
Turn the four adjustable feet to increase or decrease projector height...
