Dukane Projector 6860WSS User Manual

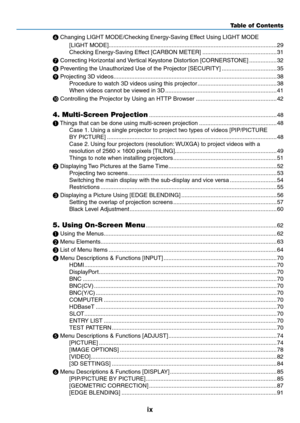

ix
❻	Changing	LIGHT	MODE/Checking	Energy-Saving	Effect	Using	LIGHT	MODE
[LIGHT	MODE]........................................................................\
................................29
Checking	Energy-Saving	Effect	[CARBON	METER] ..............................................31
❼
	Correcting	Horizontal	and	Vertical	Keystone	Distortion	[CORNERSTONE] .................32
❽
	Preventing	the	Unauthorized	Use	of	the	Projector	[SECURITY] ..................................35
❾
	Projecting	3D...

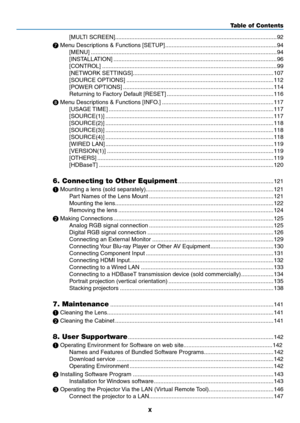

x
[MULTI	SCREEN]........................................................................\
............................92
❼
	Menu	Descriptions	&	Functions	[SETUP] .....................................................................94
[MENU]
 ........................................................................\
...........................................94
[INSTALLATION]
 ........................................................................\
.............................96
[CONTROL]...

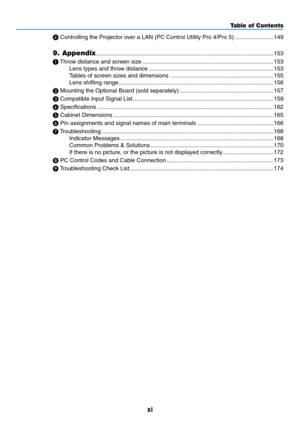

xi
❹	Controlling	the	Projector	over	a	LAN	(PC	Control	Utility	Pro	4/Pro	5) ........................149
9. Appendix ........................................................................\
......................................153
❶
	Throw	distance	and	screen	size ........................................................................\
.........153
Lens	types	and	throw	distance ........................................................................\
.....153
Tables	of	screen	sizes	and	dimensions...

1
1. Introduction

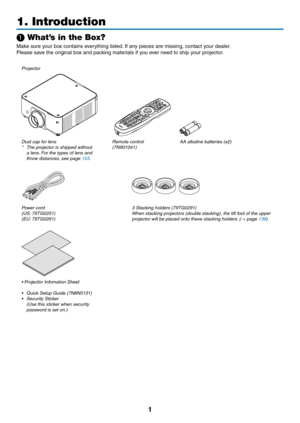

❶ What’s in the Box?
Make	sure	your	box	contains	everything	listed.	If	any	pieces	are	missing,	contact	your	dealer.
Please	save	the	original	box	and	packing	materials	if	you	ever	need	to	ship	your	projector.
Projector
Dust	cap	for	lens*	 The	projector	is	shipped	without	a	lens.	For	the	types	of	lens	and	throw	distances,	see	page	153.
Remote	control(7N901041)AA	alkaline	batteries	(x2)
Power	cord(US:	79TG0251)(EU:	79TG0261)
3	Stacking	holders	(79TG0291)When	stacking	projectors	(double...

2

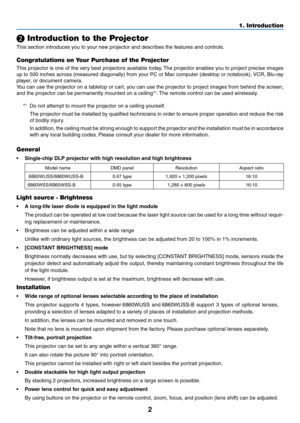

❷ Introduction to the Projector
This	section	introduces	you	to	your	new	projector	and	describes	the	features	and	controls.
Congratulations on Your Purchase of the Projector
This	projector	is	one	of	the	very	best	projectors	available	today.	The	projector	enables	you	to	project	precise	images
up	to	500	inches	across	(measured	diagonally)	from	your	PC	or	Mac	computer	(desktop	or	notebook),	VCR,	Blu-ray
player,	or	document	camera.
You	can	use	the	projector	on	a	tabletop	or	cart,	you	can	use	the	projector...

3

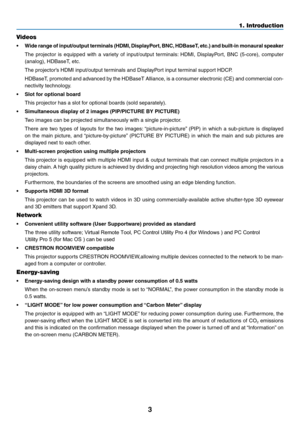

Videos
•	 Wide	range	of	input/output	terminals	(HDMI,	DisplayPort,	BNC,	HDBaseT,	etc.)	and	built-in	monaural	speaker
	 The	projector	is	equipped	with	a	variety	of	input/output	terminals:	HDMI,	DisplayPort,	BNC	(5-core),	computer
(analog),	HDBaseT,	etc.
	 The	projector’s	HDMI	input/output	terminals	and	DisplayPort	input	terminal	support	HDCP.
	 HDBaseT,	promoted	and	advanced	by	the	HDBaseT	Alliance,	is	a	consumer	electronic	(CE)	and	commercial	con-
nectivity	technology.
•	 Slot	for	optional	board...

4

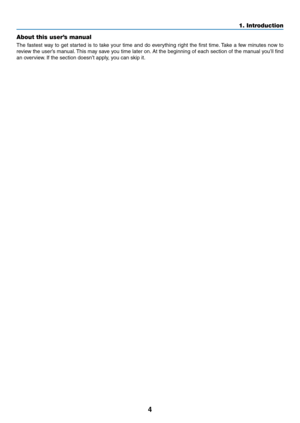

About this user’s manual
The	fastest	way	to	get	started	is	to	take	your	time	and	do	everything	right	the	first	time.	Take	a	few	minutes	now	to
review	the	user’s	manual.	This	may	save	you	time	later	on.	At	the	beginning	of	each	section	of	the	manual	you’ll	find
an	overview.	If	the	section	doesn’t	apply,	you	can	skip	it.
1. Introduction

5

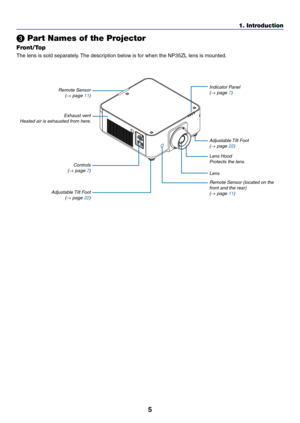

❸ Part Names of the Projector
Front/Top
The	lens	is	sold	separately.	The	description	below	is	for	when	the	NP35ZL	lens	is	mounted.
Controls(→	page	7)Lens
Remote	Sensor(→	page	11)
Lens	HoodProtects	the	lens.
Remote	Sensor	(located	on	the	front	and	the	rear)(→	page	11)
Adjustable	Tilt	Foot
(→	page	22)
Indicator	Panel(→	page	7)
Adjustable	Tilt	Foot(→	page	22)
Exhaust	ventHeated	air	is	exhausted	from	here.
1. Introduction

6

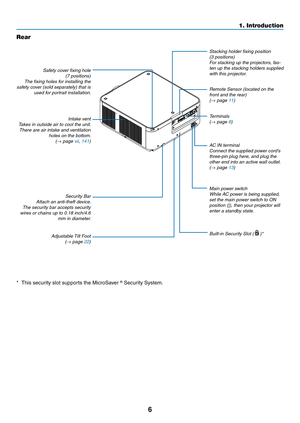

Rear
Stacking	holder	fixing	position		(3	positions)For	stacking	up	the	projectors,	fas-ten	up	the	stacking	holders	supplied	with	this	projector.Safety	cover	fixing	hole		(7	positions)	The	fixing	holes	for	installing	the	safety	cover	(sold	separately)	that	is	used	for	portrait	installation.Remote	Sensor	(located	on	the	front	and	the	rear)(→	page	11)
AC	IN	terminalConnect	the	supplied	power	cord’s	three-pin	plug	here,	and	plug	the	other	end	into	an	active	wall	outlet.	(→	page	13)
Main	power	switchWhile...

7
Controls/Indicator Panel
11107
2345
8
1
6
13
14
15 16 17
129
1. 	(POWER)	Button
	(→	page	14,	24)
2.	 POWER	Indicator
	(→	page	14,	15,	24,	168)
3. STATUS Indicator
	(→	page	168)
4. LIGHT Indicator
	(→	page	29,	169)
5.	 TEMP.	Indicator
	(→	page	169)
6.	 SOURCE	Button
	(→	page	16)
7.	 AUTO	ADJ.	Button
	(→	page	23)
8.	 3D	REFORM	Button
	(→	page	32)
9.	 MENU	Button
	(→	page	62)
10.	 ▲▼◀▶
	Buttons
	( →	page	62)
11.	ENTER	Button
	(→	page	62)
12.	EXIT	Button
	(→	page	62)
13.	SHUTTER	Button
	(→	page...
