Dukane Projector 6860WSS User Manual

18

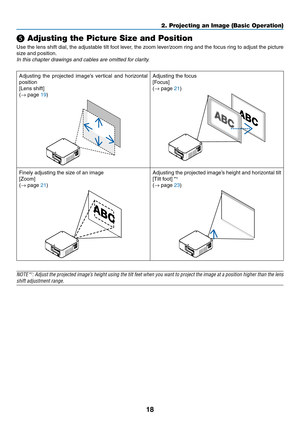

❺ Adjusting the Picture Size and Position
Use	the	lens	shift	dial,	the	adjustable	tilt	foot	lever,	the	zoom	lever/zoom	ring	and	the	focus	ring	to	adjust	the	picture
size	and	position.
In	this	chapter	drawings	and	cables	are	omitted	for	clarity.
Adjusting	the	projected	image’s	vertical	and	horizontal
position
[Lens	shift]
(→	page	19)
Adjusting	the	focus
[Focus]
(→
	page	21)
Finely	adjusting	the	size	of	an	image
[Zoom]
(→
	page	21)
Adjusting	the	projected	image’s	height	and	horizontal	tilt
[Tilt	foot]...

19

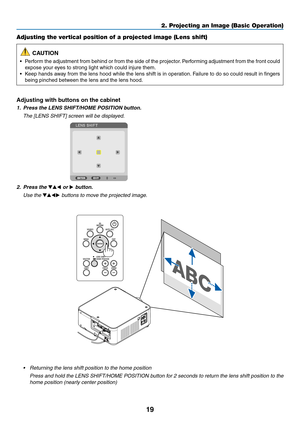

Adjusting the vertical position of a projected image (Lens shift)
 CAUTION
•	 Perform	the	adjustment	from	behind	or	from	the	side	of	the	projector.	Performing	adjustment	from	the	front	could
expose	your	eyes	to	strong	light	which	could	injure	them.
•	 Keep	hands	away	from	the	lens	hood	while	the	lens	shift	is	in	operation.	Failure	to	do	so	could	result	in	fingers
being	pinched	between	the	lens	and	the	lens	hood.
Adjusting with buttons on the cabinet
1. Press the LENS SHIFT/HOME POSITION button....

20

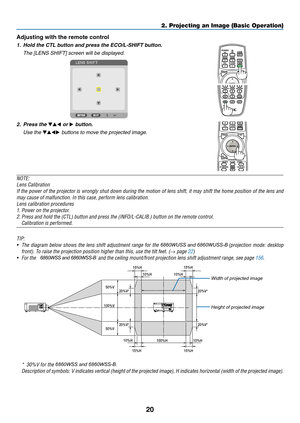

Adjusting with the remote control
1.	 Hold	the	CTL	button	and	press	the	ECO/L-SHIFT	button.
	 The	[LENS	SHIFT]	screen	will	be	displayed.
2. Press the ▼▲◀ or ▶ button.
	 Use	the	▼▲◀▶	buttons	to	move	the	projected	image.
NOTE:
Lens	Calibration
If	the	power	of	the	projector	is	wrongly	shut	down	during	the	motion	of	lens	shift,	it	may	shift	the	home	position	of	the	lens	and
may	cause	of	malfunction.	In	this	case,	perform	lens	calibration.
Lens	calibration	procedures
1.	Power	on	the	projector.
2.	Press...

21

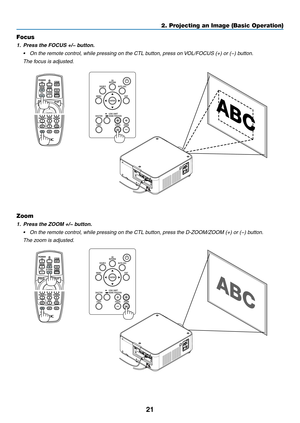

Focus
1.	 Press	the	FOCUS	+/−	button.
•	 On	the	remote	control,	while	pressing	on	the	CTL	button,	press	on	VOL/FOCUS	(+)	or	(−)	button.
	 The	focus	is	adjusted.
Zoom
1. Press the ZOOM +/− button.
•	 On	the	remote	control,	while	pressing	on	the	CTL	button,	press	the	D-ZOOM/ZOOM	(+)	or	(−)	button.
	 The	zoom	is	adjusted.
2. Projecting an Image (Basic Operation)

22

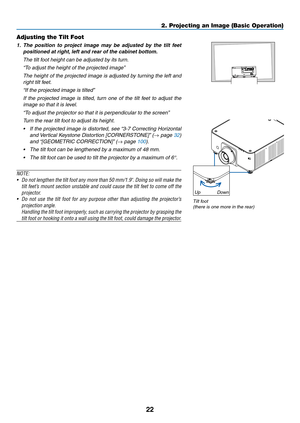

Adjusting the Tilt Foot
1.	 The	position	to	project	image	may	be	adjusted	by	the	tilt	feet
positioned	at	right,	left	and	rear	of	the	cabinet	bottom.
	 The	tilt	foot	height	can	be	adjusted	by	its	turn.
	 “To	adjust	the	height	of	the	projected	image”
	 The	height	of	the	projected	image	is	adjusted	by	turning	the	left	and
right	tilt	feet.
	 “If	the	projected	image	is	tilted”
	 If	the	projected	image	is	tilted,	turn	one	of	the	tilt	feet	to	adjust	the
image	so	that	it	is	level.
	 “To	adjust	the...

23

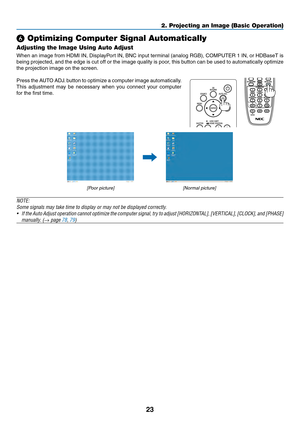

❻ Optimizing Computer Signal Automatically
Adjusting the Image Using Auto Adjust
When	an	image	from	HDMI	IN,	DisplayPort	IN,	BNC	input	terminal	(analog	RGB),	COMPUTER	1	IN,	or	HDBaseT	is
being	projected,	and	the	edge	is	cut	off	or	the	image	quality	is	poor,	this	button	can	be	used	to	automatically	optimize
the	projection	image	on	the	screen.
Press	the	AUTO	ADJ.	button	to	optimize	a	computer	image	automatically.
This	adjustment	may	be	necessary	when	you	connect	your	computer
for	the	first	time....

24

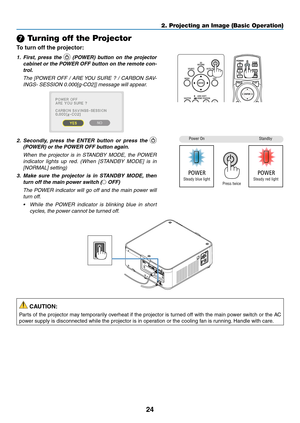

❼ Turning off the Projector
To turn off the projector:
1. First, press the  (POWER) button on the projector
cabinet or the POWER OFF button on the remote con-
trol.
	 The	[POWER	OFF	/	ARE	YOU	SURE	?	/	CARBON	SAV-
INGS-	SESSION	0.000[g-CO2]]	message	will	appear.

2. Secondly, press the ENTER button or press the
(POWER) or the POWER OFF button again.
	 When	the	projector	is	in	STANDBY	MODE,	the	POWER
indicator	lights	up	red.	(When	[STANDBY	MODE]	is	in
[NORMAL]	setting)
3. Make sure the projector...

25

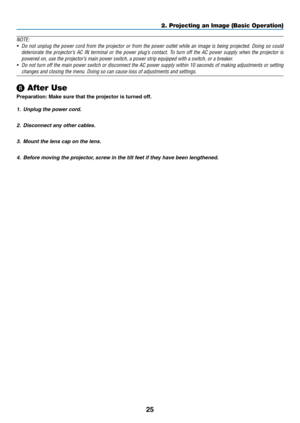

NOTE:
•	 Do	not	unplug	the	power	cord	from	the	projector	or	from	the	power	outlet	while	an	image	is	being	projected.	Doing	so	could
deteriorate	the	projector’s	AC	IN	terminal	or	the	power	plug’s	contact.	To	turn	off	the	AC	power	supply	when	the	projector	is
powered	on,	use	the	projector’s	main	power	switch,	a	power	strip	equipped	with	a	switch,	or	a	breaker.
•	 Do	not	turn	off	the	main	power	switch	or	disconnect	the	AC	power	supply	within	10	seconds	of	making	adjustments	or	setting
changes	and...

26

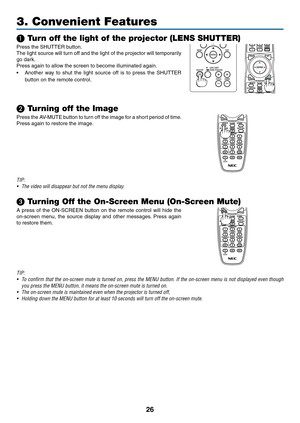

3. Convenient Features
❶ Turn off the light of the projector (LENS SHUTTER)
Press	the	SHUTTER	button.
The	light	source	will	turn	off	and	the	light	of	the	projector	will	temporarily
go	dark.
Press	again	to	allow	the	screen	to	become	illuminated	again.
•	 Another	way	to	shut	the	light	source	off	is	to	press	the	SHUTTER
button	on	the	remote	control.


❷ Turning off the Image
Press	the	AV-MUTE	button	to	turn	off	the	image	for	a	short	period	of	time.
Press	again	to	restore	the	image.
TIP:
•	 The...

27

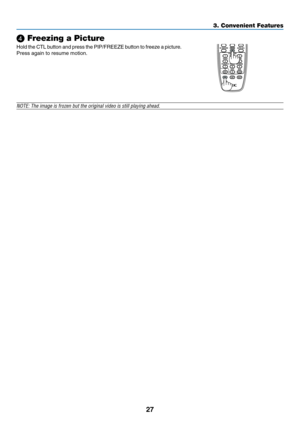

❹ Freezing a Picture
Hold	the	CTL	button	and	press	the	PIP/FREEZE	button	to	freeze	a	picture.
Press	again	to	resume	motion.
NOTE: The image is frozen but the original video is still playing ahead.\
3. Convenient Features
