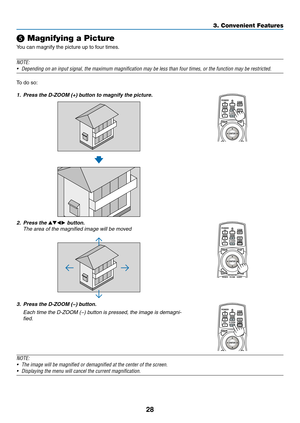

❺ Magnifying a Picture
You	can	magnify	the	picture	up	to	four	times.
NOTE:
•	 Depending	on	an	input	signal,	the	maximum	magnification	may	be	less	than	four	times,	or	the	function	may	be	restricted.
To	do	so:
1.	 Press	the	D-ZOOM	(+)	button	to	magnify	the	picture.
2. Press the ▲▼◀▶ button.
	 The	area	of	the	magnified	image	will	be	moved
3. Press the D-ZOOM (−) button.
	 Each	time	the	D-ZOOM	(−)	button	is	pressed,	the	image	is	demagni-
fied.
NOTE:
•	 The	image	will	be	magnified	or	demagnified	at	the...

29

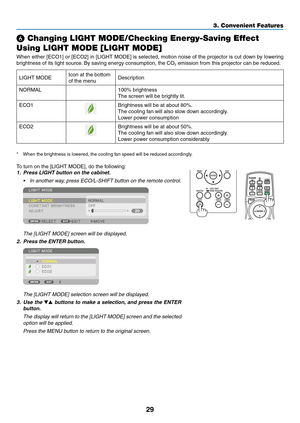

❻ Changing LIGHT MODE/Checking Energy-Saving Effect
Using LIGHT MODE [LIGHT MODE]
When	either	[ECO1]	or	[ECO2]	in	[LIGHT	MODE]	is	selected,	motion	noise	of	the	projector	is	cut	down	by	lowering
brightness	of	its	light	source.	By	saving	energy	consumption,	the	CO2	emission	from	this	projector	can	be	reduced.
LIGHT	MODEIcon	at	the	bottom
of	the	menuDescription
NORMAL
100%	brightness
The	screen	will	be	brightly	lit.
ECO1Brightness	will	be	at	about	80%.
The	cooling	fan	will	also	slow	down	accordingly....

30

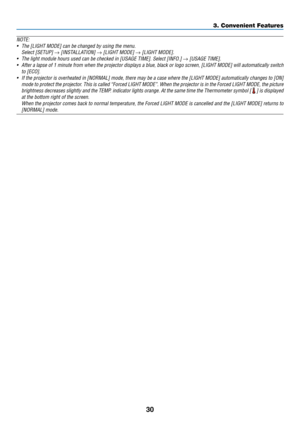

NOTE:
•	 The	[LIGHT	MODE]	can	be	changed	by	using	the	menu.
	 Select	[SETUP]	→	[INSTALLATION]	→	[LIGHT	MODE]	→	[LIGHT	MODE].
•	 The	light	module	hours	used	can	be	checked	in	[USAGE	TIME].	Select	[INFO.]	→	[USAGE	TIME].
•	 After	a	lapse	of	1	minute	from	when	the	projector	displays	a	blue,	black	or	logo	screen,	[LIGHT	MODE]	will	automatically	switch
to	[ECO].
•	 If	the	projector	is	overheated	in	[NORMAL]	mode,	there	may	be	a	case	where	the	[LIGHT	MODE]	automatically	changes	to	[ON]
mode	to	protect...

31

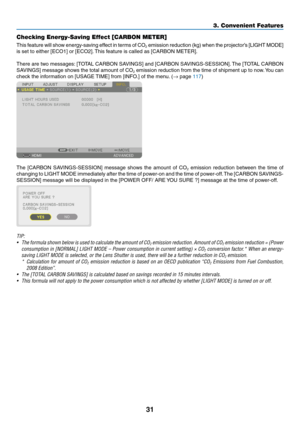

Checking Energy-Saving Effect [CARBON METER]
This	feature	will	show	energy-saving	effect	in	terms	of	CO2	emission	reduction	(kg)	when	the	projector’s	[LIGHT	MODE]
is	set	to	either	[ECO1]	or	[ECO2].	This	feature	is	called	as	[CARBON	METER].
There	are	two	messages:	[TOTAL	CARBON	SAVINGS]	and	[CARBON	SAVINGS-SESSION].	The	[TOTAL	CARBON
SAVINGS]	message	shows	the	total	amount	of	CO2	emission	reduction	from	the	time	of	shipment	up	to	now.	You	can
check	the	information	on	[USAGE	TIME]	from	[INFO.]	of	the...

32

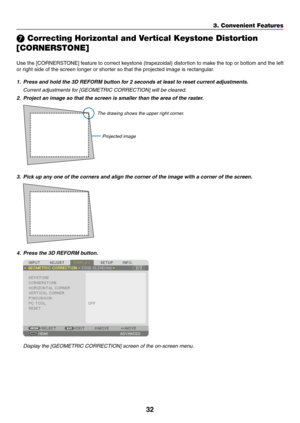

❼ Correcting Horizontal and Vertical Keystone Distortion
[CORNERSTONE]
Use	the	[CORNERSTONE]	feature	to	correct	keystone	(trapezoidal)	distortion	to	make	the	top	or	bottom	and	the	left
or	right	side	of	the	screen	longer	or	shorter	so	that	the	projected	image	is	rectangular.
1.	 Press	and	hold	the	3D	REFORM	button	for	2	seconds	at	least	to	reset	current	adjustments.
	 Current	adjustments	for	[GEOMETRIC	CORRECTION]	will	be	cleared.
2.	 Project	an	image	so	that	the	screen	is	smaller	than	the	area	of...

33

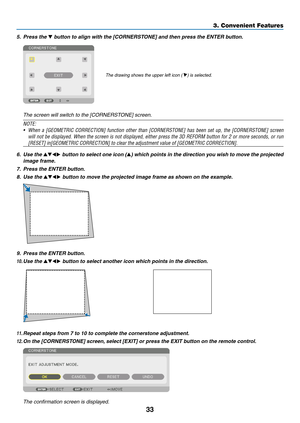

5. Press the ▼	button	to	align	with	the	[CORNERSTONE]	and	then	press	the	ENTER	button.
The	drawing	shows	the	upper	left	icon	(	)	is	selected.
	 The	screen	will	switch	to	the	[CORNERSTONE]	screen.
NOTE:
•	 When	a	[GEOMETRIC	CORRECTION]	function	other	than	[CORNERSTONE]	has	been	set	up,	the	[CORNERSTONE]	screen
will	not	be	displayed.	When	the	screen	is	not	displayed,	either	press	the	3D	REFORM	button	for	2	or	more	seconds,	or	run
[RESET]	in[GEOMETRIC	CORRECTION]	to	clear	the	adjustment	value	of...

34

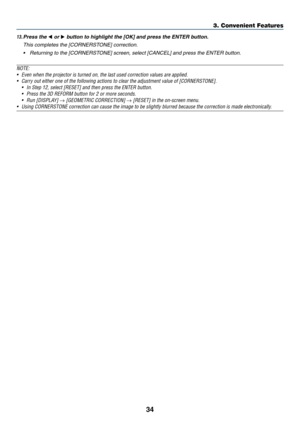

13. Press  the ◀ or ▶	button	to	highlight	the	[OK]	and	press	the	ENTER	button.
	 This	completes	the	[CORNERSTONE]	correction.
•	 Returning	to	the	[CORNERSTONE]	screen,	select	[CANCEL]	and	press	the	ENTER	button.
NOTE:
•	 Even	when	the	projector	is	turned	on,	the	last	used	correction	values	are	applied.
•	 Carry	out	either	one	of	the	following	actions	to	clear	the	adjustment	value	of	[CORNERSTONE].
•	 In	Step	12,	select	[RESET]	and	then	press	the	ENTER	button.
•	 Press	the	3D	REFORM	button	for	2	or...

35

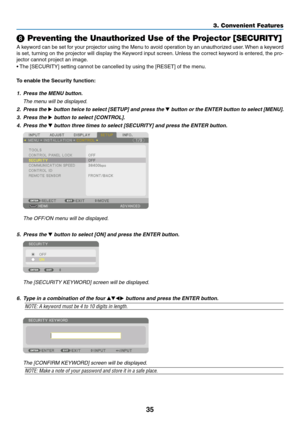

❽ Preventing the Unauthorized Use of the Projector [SECURITY]
A	keyword	can	be	set	for	your	projector	using	the	Menu	to	avoid	operation	by	an	unauthorized	user.	When	a	keyword
is	set,	turning	on	the	projector	will	display	the	Keyword	input	screen.	Unless	the	correct	keyword	is	entered,	the	pro-
jector	cannot	project	an	image.
•	The	[SECURITY]	setting	cannot	be	cancelled	by	using	the	[RESET]	of	the	menu.
To	enable	the	Security	function:
1. Press the MENU button.
	 The	menu	will	be	displayed.
2. Press...

36

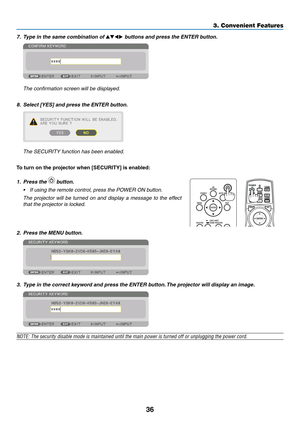

7.	 Type	in	the	same	combination	of	▲▼◀▶ buttons and press the ENTER button.
	 The	confirmation	screen	will	be	displayed.
8.	 Select	[YES]	and	press	the	ENTER	button.
	 The	SECURITY	function	has	been	enabled.
To	turn	on	the	projector	when	[SECURITY]	is	enabled:
1. Press the  button.
•	 If	using	the	remote	control,	press	the	POWER	ON	button.
	 The	projector	will	be	turned	on	and	display	a	message	to	the	effect
that	the	projector	is	locked.

2. Press the MENU button.
3. Type in the correct keyword and...

37

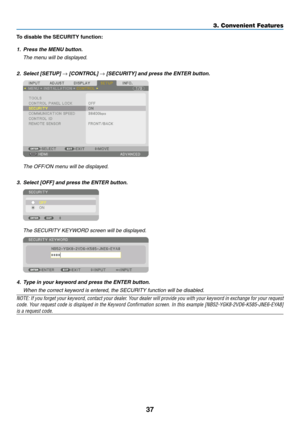

To	disable	the	SECURITY	function:
1. Press the MENU button.
	 The	menu	will	be	displayed.
2.	 Select	[SETUP]	→	[CONTROL]	→	[SECURITY]	and	press	the	ENTER	button.
	 The	OFF/ON	menu	will	be	displayed.
3.	 Select	[OFF]	and	press	the	ENTER	button.
	 The	SECURITY	KEYWORD	screen	will	be	displayed.
4. Type in your keyword and press the ENTER button.
	 When	the	correct	keyword	is	entered,	the	SECURITY	function	will	be	disabled.
NOTE:	If	you	forget	your	keyword,	contact	your	dealer.	Your	dealer	will	provide...
