Dukane Projector 6860WSS User Manual

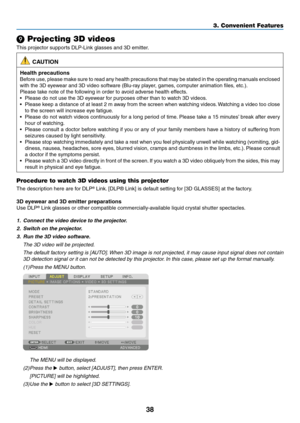

38
❾ Projecting 3D videos
This	projector	supports	DLP-Link	glasses	and	3D	emitter.
 CAUTION
Health precautions
Before	use,	please	make	sure	to	read	any	health	precautions	that	may	be	stated	in	the	operating	manuals	enclosed
with	the	3D	eyewear	and	3D	video	software	(Blu-ray	player,	games,	computer	animation	files,	etc.).
Please	take	note	of	the	following	in	order	to	avoid	adverse	health	effects.
•	 Please	do	not	use	the	3D	eyewear	for	purposes	other	than	to	watch	3D	videos.
•	 Please	keep	a	distance	of...

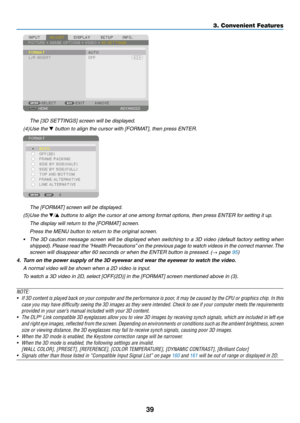

39
	 The	[3D	SETTINGS]	screen	will	be	displayed.
(4)	Use	the	▼	button	to	align	the	cursor	with	[FORMAT],	then	press	ENTER.
	 The	[FORMAT]	screen	will	be	displayed.
(5)	Use	the	▼/▲	buttons	to	align	the	cursor	at	one	among	format	options,	then	press	ENTER	for	setting	it	up.
	 The	display	will	return	to	the	[FORMAT]	screen.
	 Press	the	MENU	button	to	return	to	the	original	screen.
•	 The	3D	caution	message	screen	will	be	displayed	when	switching	to	a	3D	video	(default	factory	setting	when
shipped).	Please...

40

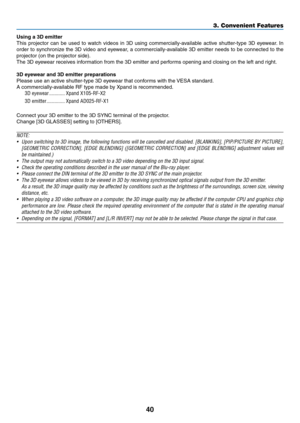

Using a 3D emitter
This	projector	can	be	used	to	watch	videos	in	3D	using	commercially-available	active	shutter-type	3D	eyewear.	In
order	to	synchronize	the	3D	video	and	eyewear,	a	commercially-available	3D	emitter	needs	to	be	connected	to	the
projector	(on	the	projector	side).
The	3D	eyewear	receives	information	from	the	3D	emitter	and	performs	opening	and	closing	on	the	left	and	right.
3D	eyewear	and	3D	emitter	preparations
Please	use	an	active	shutter-type	3D	eyewear	that	conforms	with	the	VESA...

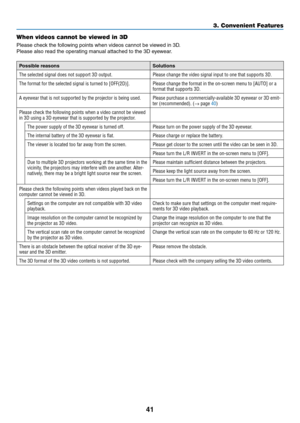

41
When videos cannot be viewed in 3D
Please	check	the	following	points	when	videos	cannot	be	viewed	in	3D.
Please	also	read	the	operating	manual	attached	to	the	3D	eyewear.
Possible	reasonsSolutions
The selected signal does not support 3D output�Please change the video signal input to one that supports 3D�
The format for the selected signal is turned to [OFF(2D)]�Please change the format in the on-screen menu to [AUTO] or a format that supports 3D�
A eyewear that is not supported by the projector is...

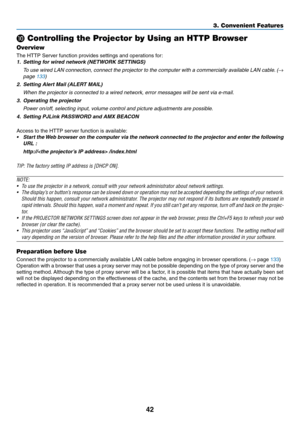

42
❿ Controlling the Projector by Using an HTTP Browser
Overview
The	HTTP	Server	function	provides	settings	and	operations	for:
1.	 Setting	for	wired	network	(NETWORK	SETTINGS)
	 To	use	wired	LAN	connection,	connect	the	projector	to	the	computer	with	a	commercially	available	LAN	cable.	(→
page	133)
2. Setting Alert Mail (ALERT MAIL)
	 When	the	projector	is	connected	to	a	wired	network,	error	messages	will	be	sent	via	e-mail.
3. Operating the projector
	 Power	on/off,	selecting	input,	volume	control	and...

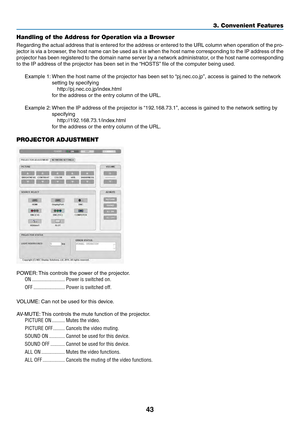

43
Handling of the Address for Operation via a Browser
Regarding	the	actual	address	that	is	entered	for	the	address	or	entered	to	the	URL	column	when	operation	of	the	pro-
jector	is	via	a	browser,	the	host	name	can	be	used	as	it	is	when	the	host	name	corresponding	to	the	IP	address	of	the
projector	has	been	registered	to	the	domain	name	server	by	a	network	administrator,	or	the	host	name	corresponding
to	the	IP	address	of	the	projector	has	been	set	in	the	“HOSTS”	file	of	the	computer	being	used....

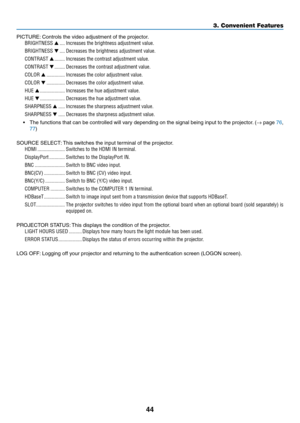

44
PICTURE:	Controls	the	video	adjustment	of	the	projector.
BRIGHTNESS ▲ ����Increases the brightness adjustment value�
BRIGHTNESS ▼ ����Decreases the brightness adjustment value�
CONTRAST ▲ ��������Increases the contrast adjustment value�
CONTRAST ▼ ��������Decreases the contrast adjustment value�
COLOR ▲ ��������������Increases the color adjustment value�
COLOR ▼ ��������������Decreases the color adjustment value�
HUE ▲ �������������������Increases the hue adjustment value�
HUE ▼...

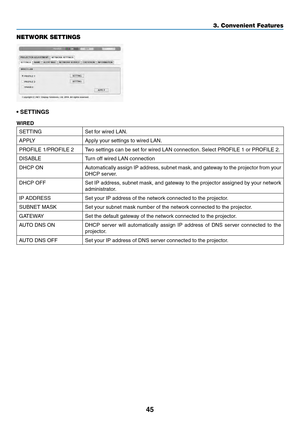

45
NETWORK SETTINGS
•	SETTINGS
WIRED
SETTINGSet	for	wired	LAN.
APPLYApply	your	settings	to	wired	LAN.
PROFILE	1/PROFILE	2Two	settings	can	be	set	for	wired	LAN	connection.	Select	PROFILE	1	or	PROFILE	2.
DISABLETurn	off	wired	LAN	connection
DHCP	ONAutomatically	assign	IP	address,	subnet	mask,	and	gateway	to	the	projector	from	your
DHCP	server.
DHCP	OFFSet	IP	address,	subnet	mask,	and	gateway	to	the	projector	assigned	by	your	network
administrator.
IP	ADDRESSSet	your	IP	address	of	the	network	connected...

46

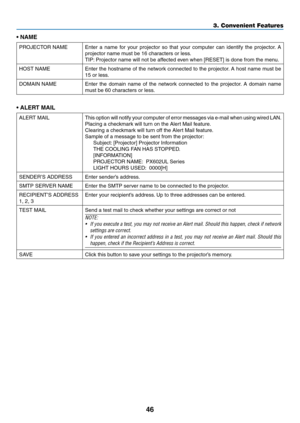

•	NAME
PROJECTOR	NAMEEnter	a	name	for	your	projector	so	that	your	computer	can	identify	the	projector.	A
projector	name	must	be	16	characters	or	less.
TIP:	Projector	name	will	not	be	affected	even	when	[RESET]	is	done	from	the	menu.
HOST	NAMEEnter	the	hostname	of	the	network	connected	to	the	projector.	A	host	name	must	be
15	or	less.
DOMAIN	NAMEEnter	the	domain	name	of	the	network	connected	to	the	projector.	A	domain	name
must	be	60	characters	or	less.
•	ALERT	MAIL
ALERT	MAILThis	option	will...

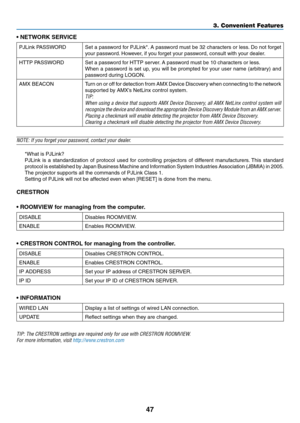

47
•	NETWORK	SERVICE
PJLink	PASSWORDSet	a	password	for	PJLink*.	A	password	must	be	32	characters	or	less.	Do	not	forget
your	password.	However,	if	you	forget	your	password,	consult	with	your	dealer.
HTTP	PASSWORDSet	a	password	for	HTTP	server.	A	password	must	be	10	characters	or	less.
When	a	password	is	set	up,	you	will	be	prompted	for	your	user	name	(arbitrary)	and
password	during	LOGON.
AMX	BEACONTurn	on	or	off	for	detection	from	AMX	Device	Discovery	when	connecting	to	the	network
supported	by	AMX’s...
