Dukane Projector 6860WUSS-B User Manual

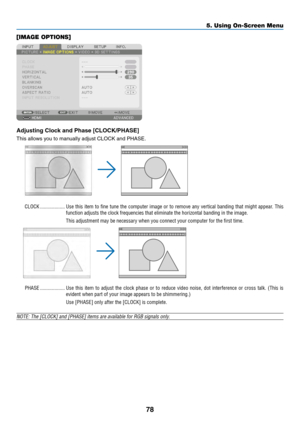

78
[IMAGE OPTIONS]
Adjusting	Clock	and	Phase	[CLOCK/PHASE]
This	allows	you	to	manually	adjust	CLOCK	and	PHASE.
CLOCK �������������������Use this item to fine tune the computer image or to remove any vertical banding that might appear� This
function adjusts the clock frequencies that eliminate the horizontal ban\
ding in the image�
This adjustment may be necessary when you connect your computer for the first time�
PHASE �������������������Use this item to adjust the clock phase or to reduce video noise,...

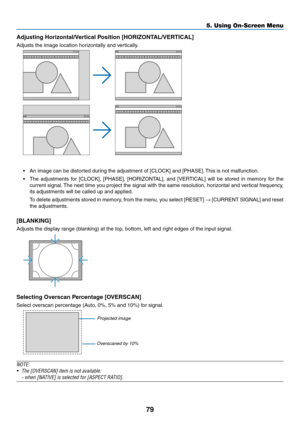

79
Adjusting	Horizontal/Vertical	Position	[HORIZONTAL/VERTICAL]
Adjusts	the	image	location	horizontally	and	vertically.
•	 An	image	can	be	distorted	during	the	adjustment	of	[CLOCK]	and	[PHASE].	This	is	not	malfunction.
•	 The	adjustments	for	[CLOCK],	[PHASE],	[HORIZONTAL],	and	[VERTICAL]	will	be	stored	in	memory	for	the
current	signal.	The	next	time	you	project	the	signal	with	the	same	resolution,	horizontal	and	vertical	frequency,
its	adjustments	will	be	called	up	and	applied.
	 To	delete	adjustments...

80

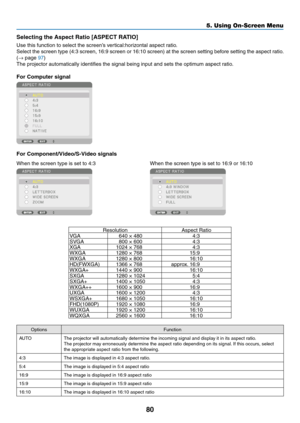

Selecting	the	Aspect	Ratio	[ASPECT	RATIO]
Use	this	function	to	select	the	screen’s	vertical:horizontal	aspect	ratio.
Select	the	screen	type	(4:3	screen,	16:9	screen	or	16:10	screen)	at	the	screen	setting	before	setting	the	aspect	ratio.
(→	page	97)
The	projector	automatically	identifies	the	signal	being	input	and	sets	the	optimum	aspect	ratio.
For Computer signal
For	Component/Video/S-Video	signals
When	the	screen	type	is	set	to	4:3When	the	screen	type	is	set	to	16:9	or	16:10
ResolutionAspect...

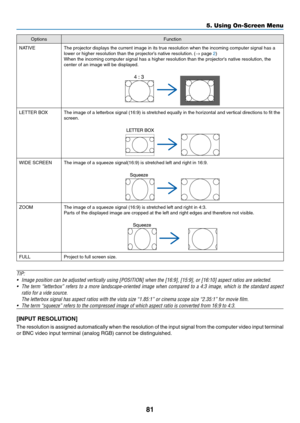

81
OptionsFunction
NATIVE
The	projector	displays	the	current	image	in	its	true	resolution	when	the	incoming	computer	signal	has	a	lower	or	higher	resolution	than	the	projector’s	native	resolution.	(→	page	2)When	the	incoming	computer	signal	has	a	higher	resolution	than	the	projector's	native	resolution,	the	center	of	an	image	will	be	displayed.
LETTER	BOXThe	image	of	a	letterbox	signal	(16:9)	is	stretched	equally	in	the	horizontal	and	vertical	directions	to	fit	the	screen.
WIDE	SCREENThe	image	of	a...

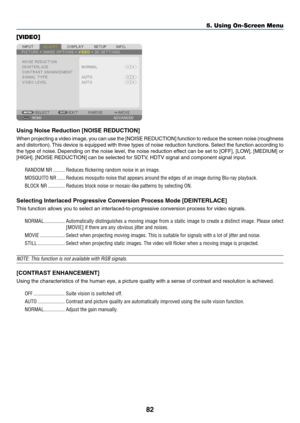

82
[VIDEO]
Using	Noise	Reduction	[NOISE	REDUCTION]
When	projecting	a	video	image,	you	can	use	the	[NOISE	REDUCTION]	function	to	reduce	the	screen	noise	(roughness
and	distortion).	This	device	is	equipped	with	three	types	of	noise	reduction	functions.	Select	the	function	according	to
the	type	of	noise.	Depending	on	the	noise	level,	the	noise	reduction	effect	can	be	set	to	[OFF],	[LOW],	[MEDIUM]	or
[HIGH].	[NOISE	REDUCTION]	can	be	selected	for	SDTV,	HDTV	signal	and	component	signal	input.
RANDOM NR...

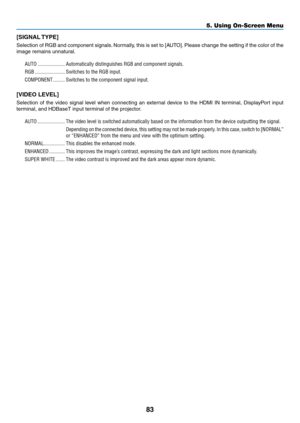

83
[SIGNAL	TYPE]
Selection	of	RGB	and	component	signals.	Normally,	this	is	set	to	[AUTO].	Please	change	the	setting	if	the	color	of	the
image	remains	unnatural.
AUTO ���������������������Automatically distinguishes RGB and component signals�
RGB �����������������������Switches to the RGB input�
COMPONENT ���������Switches to the component signal input�
[VIDEO	LEVEL]
Selection	of	the	video	signal	level	when	connecting	an	external	device	to	the	HDMI	IN	terminal,	DisplayPort	input
terminal,	and	HDBaseT...

84

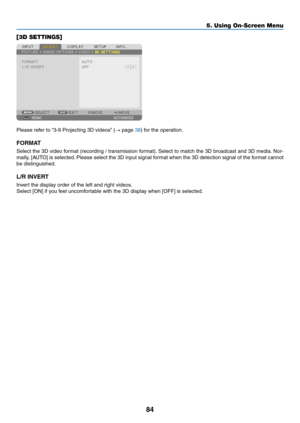

[3D SETTINGS]
Please	refer	to	“3-9	Projecting	3D	videos”	(→	page	38)	for	the	operation.
FORMAT
Select	the	3D	video	format	(recording	/	transmission	format).	Select	to	match	the	3D	broadcast	and	3D	media.	Nor-
mally,	[AUTO]	is	selected.	Please	select	the	3D	input	signal	format	when	the	3D	detection	signal	of	the	format	cannot
be	distinguished.
L/R	INVERT
Invert	the	display	order	of	the	left	and	right	videos.
Select	[ON]	if	you	feel	uncomfortable	with	the	3D	display	when	[OFF]	is	selected.
5. Using...

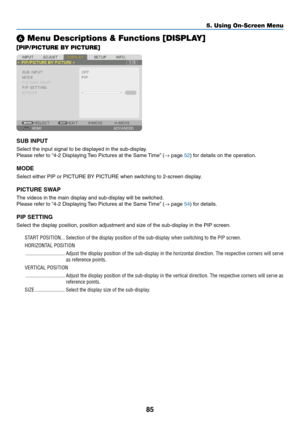

85
❻ Menu Descriptions & Functions [DISPLAY]
[PIP/PICTURE BY PICTURE]
SUB	INPUT
Select	the	input	signal	to	be	displayed	in	the	sub-display.
Please	refer	to	“4-2	Displaying	Two	Pictures	at	the	Same	Time”	(→	page	52)	for	details	on	the	operation.
MODE
Select	either	PIP	or	PICTURE	BY	PICTURE	when	switching	to	2-screen	display.
PICTURE	SWAP
The	videos	in	the	main	display	and	sub-display	will	be	switched.
Please	refer	to	“4-2	Displaying	Two	Pictures	at	the	Same	Time”	(→	page	54)	for	details.
PIP	SETTING...

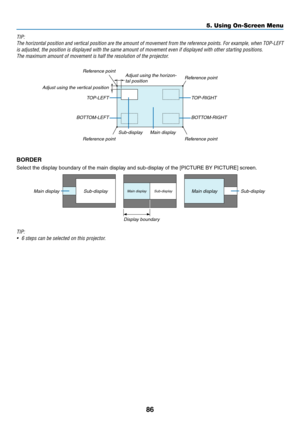

86
TIP:
The	horizontal	position	and	vertical	position	are	the	amount	of	movement	from	the	reference	points.	For	example,	when	TOP-LEFT
is adjusted, the position is displayed with the same amount of movement \
even if displayed with other starting positions.
The maximum amount of movement is half the resolution of the projector.
Reference	point
Adjust	using	the	horizon-
tal	position
Sub-display Main
	display
Reference
	point
Adjust
	using	the	vertical	position
TOP-LEFT TOP-RIGHT
BOTTOM-LEFT BOTTOM-RIGHT...

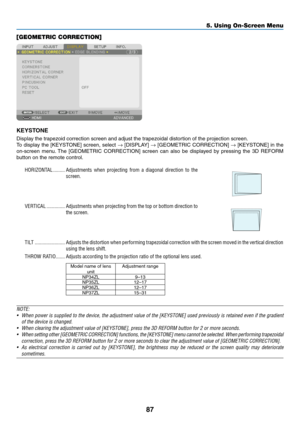

87
[GEOMETRIC CORRECTION]
KEYSTONE
Display	the	trapezoid	correction	screen	and	adjust	the	trapezoidal	distortion	of	the	projection	screen.
To	display	the	[KEYSTONE]	screen,	select	→	[DISPLAY]	→	[GEOMETRIC	CORRECTION]	→	[KEYSTONE]	in	the
on-screen	menu.	The	[GEOMETRIC	CORRECTION]	screen	can	also	be	displayed	by	pressing	the	3D	REFORM
button	on	the	remote	control.
HORIZONTAL ���������Adjustments when projecting from a diagonal direction to the
screen�
VERTICAL ��������������Adjustments when projecting...
