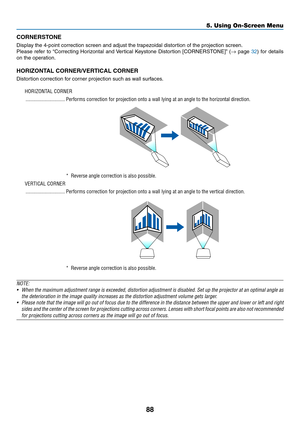

CORNERSTONE
Display	the	4-point	correction	screen	and	adjust	the	trapezoidal	distortion	of	the	projection	screen.
Please	refer	to	“Correcting	Horizontal	and	Vertical	Keystone	Distortion	[CORNERSTONE]”	(→	page	32)	for	details
on	the	operation.
HORIZONTAL	CORNER/VERTICAL	CORNER
Distortion	correction	for	corner	projection	such	as	wall	surfaces.
HORIZONTAL CORNER
 ������������������������������Performs correction for projection onto a wall lying at an angle to the hor\
izontal direction�
* Reverse angle...

89

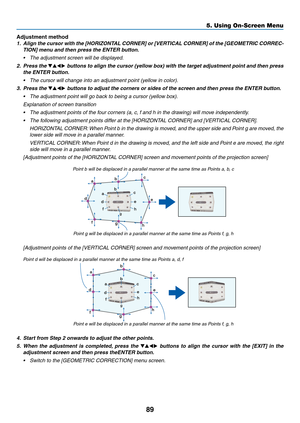

Adjustment method
1.	 Align	the	cursor	with	the	[HORIZONTAL	CORNER]	or	[VERTICAL	CORNER]	of	the	[GEOMETRIC	CORREC-
TION]	menu	and	then	press	the	ENTER	button.
•	 The	adjustment	screen	will	be	displayed.
2. Press the ▼▲◀▶ buttons to align the cursor (yellow box) with the target adjustment point and then press
the ENTER button.
•	 The	cursor	will	change	into	an	adjustment	point	(yellow	in	color).
3. Press the ▼▲◀▶	buttons	to	adjust	the	corners	or	sides	of	the	screen	and	then	press	the	ENTER	button.
•...

90

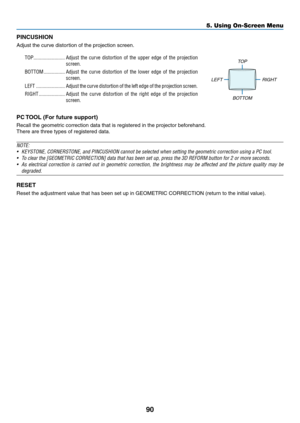

PINCUSHION
Adjust	the	curve	distortion	of	the	projection	screen.
TOP ������������������������Adjust the curve distortion of the upper edge of the projection
screen�
BOTTOM ����������������Adjust the curve distortion of the lower edge of the projection
screen�
LEFT ����������������������Adjust the curve distortion of the left edge of the projection screen�
RIGHT ��������������������Adjust the curve distortion of the right edge of the projection
screen�
TOP
LEFT RIGHT
BOTTOM
PC	TOOL	(For	future...

91

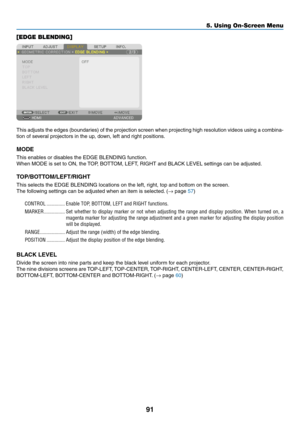

[EDGE BLENDING]
This	adjusts	the	edges	(boundaries)	of	the	projection	screen	when	projecting	high	resolution	videos	using	a	combina-
tion	of	several	projectors	in	the	up,	down,	left	and	right	positions.
MODE
This	enables	or	disables	the	EDGE	BLENDING	function.
When	MODE	is	set	to	ON,	the	TOP,	BOTTOM,	LEFT,	RIGHT	and	BLACK	LEVEL	settings	can	be	adjusted.
TOP/BOTTOM/LEFT/RIGHT
This	selects	the	EDGE	BLENDING	locations	on	the	left,	right,	top	and	bottom	on	the	screen.
The	following	settings	can	be...

92

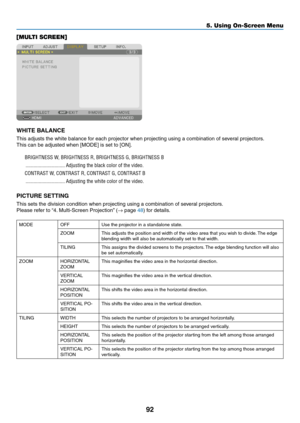

[MULTI SCREEN]
WHITE	BALANCE
This	adjusts	the	white	balance	for	each	projector	when	projecting	using	a	combination	of	several	projectors.
This	can	be	adjusted	when	[MODE]	is	set	to	[ON].
BRIGHTNESS W, BRIGHTNESS R, BRIGHTNESS G, BRIGHTNESS B
 ������������������������������Adjusting the black color of the video�
CONTRAST W, CONTRAST R, CONTRAST G, CONTRAST B
 ������������������������������Adjusting the white color of the video�
PICTURE	SETTING
This	sets	the	division	condition	when	projecting	using	a...

93

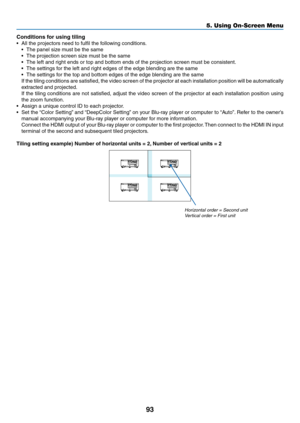

Conditions for using tiling
•	 All	the	projectors	need	to	fulfil	the	following	conditions.
•	 The	panel	size	must	be	the	same
•	 The	projection	screen	size	must	be	the	same
•	 The	left	and	right	ends	or	top	and	bottom	ends	of	the	projection	screen	must	be	consistent.
•	 The	settings	for	the	left	and	right	edges	of	the	edge	blending	are	the	same
•	 The	settings	for	the	top	and	bottom	edges	of	the	edge	blending	are	the	same
	 If	the	tiling	conditions	are	satisfied,	the	video	screen	of	the	projector	at...

94

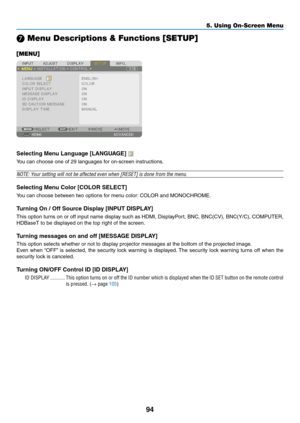

❼ Menu Descriptions & Functions [SETUP]
[MENU]
Selecting	Menu	Language	[LANGUAGE]
You	can	choose	one	of	29	languages	for	on-screen	instructions.
NOTE:	Your	setting	will	not	be	affected	even	when	[RESET]	is	done	from	the	menu.
Selecting	Menu	Color	[COLOR	SELECT]
You	can	choose	between	two	options	for	menu	color:	COLOR	and	MONOCHROME.
Turning	On	/	Off	Source	Display	[INPUT	DISPLAY]
This	option	turns	on	or	off	input	name	display	such	as	HDMI,	DisplayPort,	BNC,	BNC(CV),	BNC(Y/C),	COMPUTER,
HDBaseT	to	be...

95

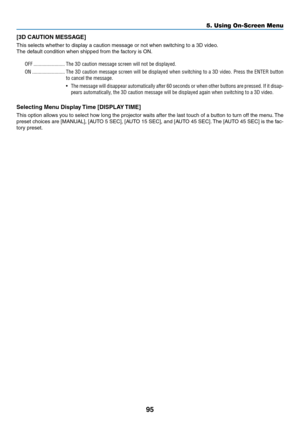

[3D	CAUTION	MESSAGE]
This	selects	whether	to	display	a	caution	message	or	not	when	switching	to	a	3D	video.
The	default	condition	when	shipped	from	the	factory	is	ON.
OFF ������������������������The 3D caution message screen will not be displayed�
ON �������������������������The 3D caution message screen will be displayed when switching to a 3D v\
ideo� Press the ENTER button
to cancel the message�
•	 The	message	will	disappear	automatically	after	60	seconds	or	when	other	buttons	are	pressed.	If	it...

96

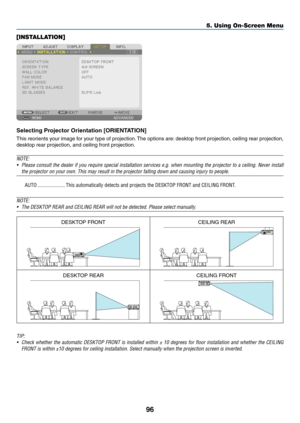

[INSTALLATION]
Selecting	Projector	Orientation	[ORIENTATION]
This	reorients	your	image	for	your	type	of	projection.	The	options	are:	desktop	front	projection,	ceiling	rear	projection,
desktop	rear	projection,	and	ceiling	front	projection.
NOTE:
•	 Please	consult	the	dealer	if	you	require	special	installation	services	e.g.	when	mounting	the	projector	to	a	ceiling.	Never	install
the projector on your own. This may result in the projector falling down\
 and causing injury to people.AUTO...

97

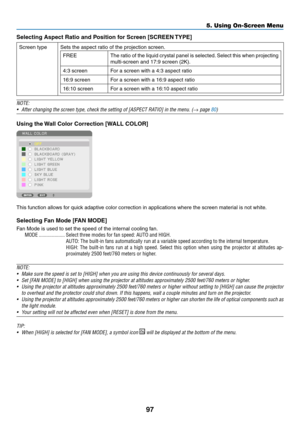

Selecting	Aspect	Ratio	and	Position	for	Screen	[SCREEN	TYPE]
Screen	typeSets	the	aspect	ratio	of	the	projection	screen.
FREEThe	ratio	of	the	liquid	crystal	panel	is	selected.	Select	this	when	projecting
multi-screen	and	17:9	screen	(2K).
4:3	screenFor	a	screen	with	a	4:3	aspect	ratio
16:9	screenFor	a	screen	with	a	16:9	aspect	ratio
16:10	screenFor	a	screen	with	a	16:10	aspect	ratio
NOTE:
•
After	changing	the	screen	type,	check	the	setting	of	[ASPECT	RATIO]	in	the	menu.	(→ page 80)
Using	the	Wall...
