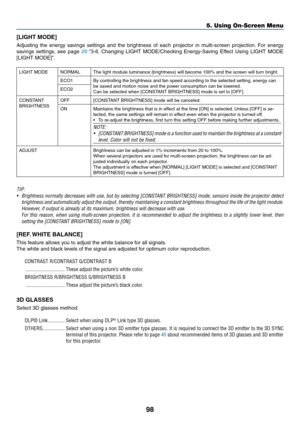

[LIGHT	MODE]
Adjusting	the	energy	savings	settings	and	the	brightness	of	each	projector	in	multi-screen	projection.	For	energy
savings	settings,	see	page	29	“3-6.	Changing	LIGHT	MODE/Checking	Energy-Saving	Effect	Using	LIGHT	MODE
[LIGHT	MODE]”.
LIGHT	MODENORMALThe	light	module	luminance	(brightness)	will	become	100%	and	the	screen	will	turn	bright.
ECO1By	controlling	the	brightness	and	fan	speed	according	to	the	selected	setting,	energy	can	be	saved	and	motion	noise	and	the	power	consumption	can	be...

99

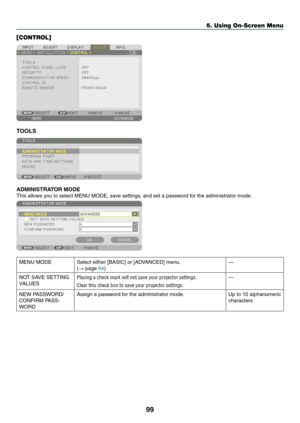

[CONTROL]
TOOLS
ADMINISTRATOR	MODE
This	allows	you	to	select	MENU	MODE,	save	settings,	and	set	a	password	for	the	administrator	mode.
MENU	MODESelect	either	[BASIC]	or	[ADVANCED]	menu.
(→	page	64)—
NOT	SAVE	SETTING
VALUES
Placing a check mark will not save your projector settings�
Clear this check box to save your projector settings�
—
NEW	PASSWORD/
CONFIRM	PASS-
WORD
Assign	a	password	for	the	administrator	mode.Up	to	10	alphanumeric
characters
5. Using On-Screen Menu

100
PROGRAM	TIMER
This	option	turns	on/standby	the	projector	and	changes	video	signals,	and	selects	ECO	mode	automatically	at	a
specified	time.
NOTE:
•	 Before	using	[PROGRAM	TIMER],	make	sure	that	the	[DATE	AND	TIME]	feature	is	set.	(→ page 103)
	 Make	sure	that	the	projector	is	in	the	standby	condition	with	the	POWER	cord	connected.
	 The	projector	has	a	built-in	clock.	The	clock	will	keep	working	for	about	two	weeks	after	the	main	power	is	turned	off.	If	the	main
power	is	not	supplied	to	the...

101

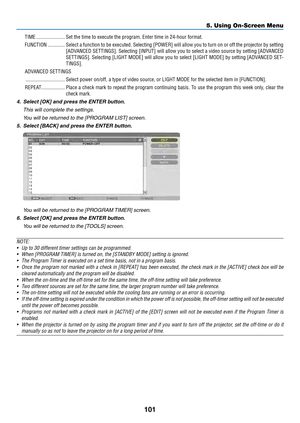

TIME ����������������������Set the time to execute the program� Enter time in 24-hour format�
FUNCTION �������������Select a function to be executed� Selecting [POWER] will allow you to turn on or off the projector by set\
ting
[ADVANCED SETTINGS]� Selecting [INPUT] will allow you to select a video source by setting [ADVANCED
SETTINGS]� Selecting [LIGHT MODE] will allow you to select [LIGHT MODE] by setting\
 [ADVANCED SET-
TINGS]�
ADVANCED SETTINGS
 ������������������������������Select power...

102

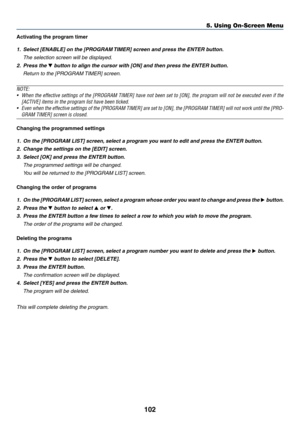

Activating the program timer
1.	 Select	[ENABLE]	on	the	[PROGRAM	TIMER]	screen	and	press	the	ENTER	button.
	 The	selection	screen	will	be	displayed.
2. Press the ▼	button	to	align	the	cursor	with	[ON]	and	then	press	the	ENTER	button.
	 Return	to	the	[PROGRAM	TIMER]	screen.
NOTE:
•	 When	the	effective	settings	of	the	[PROGRAM	TIMER]	have	not	been	set	to	[ON],	the	program	will	not	be	executed	even	if	the
[ACTIVE]	items	in	the	program	list	have	been	ticked.
•	 Even	when	the	effective	settings	of	the...

103

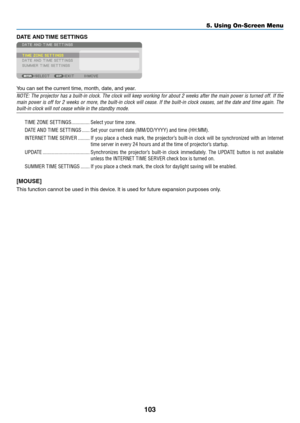

DATE	AND	TIME	SETTINGS
You	can	set	the	current	time,	month,	date,	and	year.
NOTE:	The	projector	has	a	built-in	clock.	The	clock	will	keep	working	for	about	2	weeks	after	the	main	power	is	turned	off.	If	the
main	power	is	off	for	2	weeks	or	more,	the	built-in	clock	will	cease.	If	the	built-in	clock	ceases,	set	the	date	and	time	again.	The
built-in clock will not cease while in the standby mode.TIME ZONE SETTINGS
 ��������������Select your time zone�
DATE AND TIME SETTINGS ������Set your current date...

104

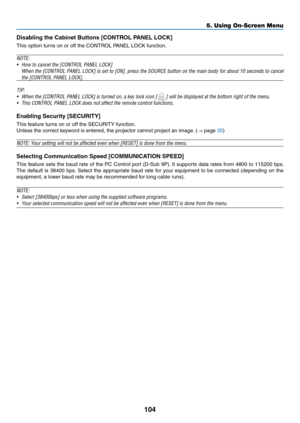

Disabling	the	Cabinet	Buttons	[CONTROL	PANEL	LOCK]
This	option	turns	on	or	off	the	CONTROL	PANEL	LOCK	function.
NOTE:
•	 How	to	cancel	the	[CONTROL	PANEL	LOCK]
	 When	the	[CONTROL	PANEL	LOCK]	is	set	to	[ON],	press	the	SOURCE	button	on	the	main	body	for	about	10	seconds	to	cancel
the	[CONTROL	PANEL	LOCK].
TIP:
•	 When	the	[CONTROL	PANEL	LOCK]	is	turned	on,	a	key	lock	icon	[		]	will	be	displayed	at	the	bottom	right	of	the	menu.
•	 This	CONTROL	PANEL	LOCK	does	not	affect	the	remote	control	functions....

105

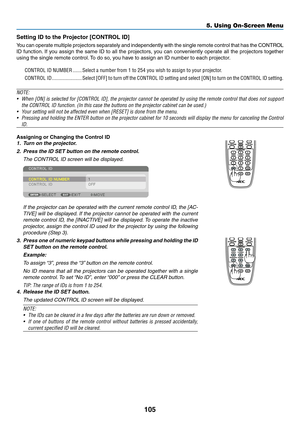

Setting	ID	to	the	Projector	[CONTROL	ID]
You	can	operate	multiple	projectors	separately	and	independently	with	the	single	remote	control	that	has	the	CONTROL
ID	function.	If	you	assign	the	same	ID	to	all	the	projectors,	you	can	conveniently	operate	all	the	projectors	together
using	the	single	remote	control.	To	do	so,	you	have	to	assign	an	ID	number	to	each	projector.
CONTROL ID NUMBER �������Select a number from 1 to 254 you wish to assign to your projector�
CONTROL ID...

106

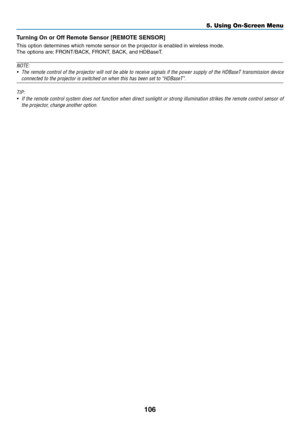

Turning	On	or	Off	Remote	Sensor	[REMOTE	SENSOR]
This	option	determines	which	remote	sensor	on	the	projector	is	enabled	in	wireless	mode.
The	options	are:	FRONT/BACK,	FRONT,	BACK,	and	HDBaseT.
NOTE:
•	 The	remote	control	of	the	projector	will	not	be	able	to	receive	signals	if	the	power	supply	of	the	HDBaseT	transmission	device
connected	to	the	projector	is	switched	on	when	this	has	been	set	to	“HDBaseT”.
TIP:
•	 If	the	remote	control	system	does	not	function	when	direct	sunlight	or	strong...

107

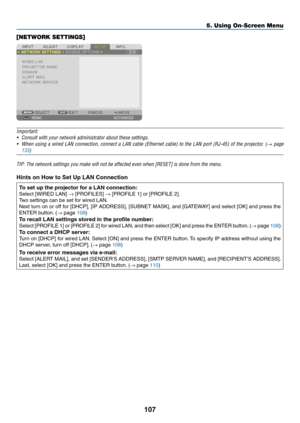

[NETWORK SETTINGS]
Important:
•	 Consult	with	your	network	administrator	about	these	settings.
•	 When	using	a	wired	LAN	connection,	connect	a	LAN	cable	(Ethernet	cable)	to	the	LAN	port	(RJ-45)	of	the	projector.	(→ page
133
)
TIP:	The	network	settings	you	make	will	not	be	affected	even	when	[RESET]	is	done	from	the	menu.
Hints on How to Set Up LAN Connection
To set up the projector for a LAN connection:
Select	[WIRED	LAN]	→	[PROFILES]	→	[PROFILE	1]	or	[PROFILE	2].
Two	settings	can	be	set	for	wired...
