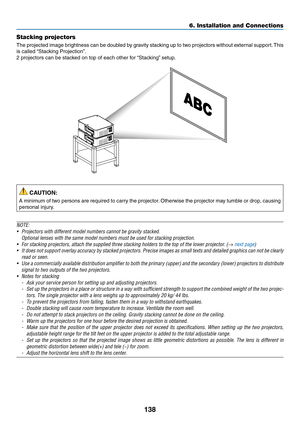

Stacking projectors
The	projected	image	brightness	can	be	doubled	by	gravity	stacking	up	to	two	projectors	without	external	support.	This
is	called	“Stacking	Projection”.
2	projectors	can	be	stacked	on	top	of	each	other	for	“Stacking”	setup.
 CAUTION:
A	minimum	of	two	persons	are	required	to	carry	the	projector.	Otherwise	the	projector	may	tumble	or	drop,	causing
personal	injury.
NOTE:
•	 Projectors	with	different	model	numbers	cannot	be	gravity	stacked.
 Optional lenses with the same model numbers...

139

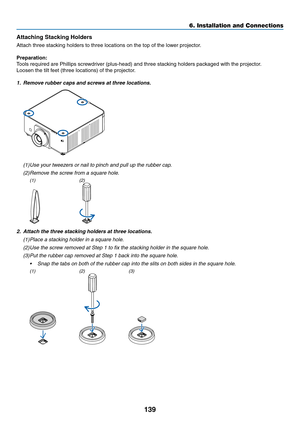

Attaching	Stacking	Holders
Attach	three	stacking	holders	to	three	locations	on	the	top	of	the	lower	projector.
Preparation:
Tools	required	are	Phillips	screwdriver	(plus-head)	and	three	stacking	holders	packaged	with	the	projector.
Loosen	the	tilt	feet	(three	locations)	of	the	projector.
1. Remove rubber caps and screws at three locations.
(1)	Use	your	tweezers	or	nail	to	pinch	and	pull	up	the	rubber	cap.
(2)	Remove	the	screw	from	a	square	hole.
(1)(2)
2. Attach the three stacking holders at three...

140

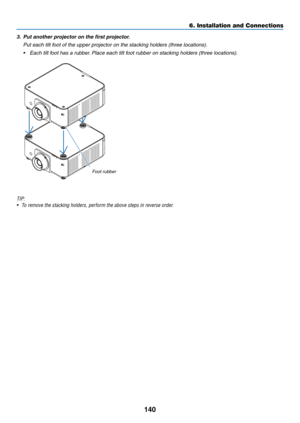

3.	 Put	another	projector	on	the	first	projector.
	 Put	each	tilt	foot	of	the	upper	projector	on	the	stacking	holders	(three	locations).
•	 Each	tilt	foot	has	a	rubber.	Place	each	tilt	foot	rubber	on	stacking	holders	(three	locations).
Foot	rubber
TIP:
•	 To	remove	the	stacking	holders,	perform	the	above	steps	in	reverse	order.
6. Installation and Connections

141

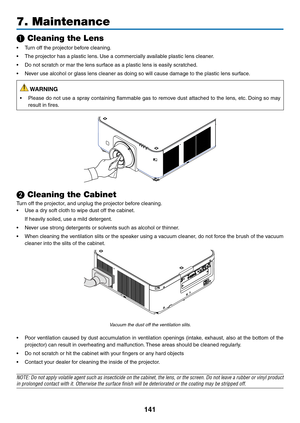

7. Maintenance
❶ Cleaning the Lens
•	 Turn	off	the	projector	before	cleaning.
•	 The	projector	has	a	plastic	lens.	Use	a	commercially	available	plastic	lens	cleaner.
•	 Do	not	scratch	or	mar	the	lens	surface	as	a	plastic	lens	is	easily	scratched.
•	 Never	use	alcohol	or	glass	lens	cleaner	as	doing	so	will	cause	damage	to	the	plastic	lens	surface.
 WARNING
•	 Please	do	not	use	a	spray	containing	flammable	gas	to	remove	dust	attached	to	the	lens,	etc.	Doing	so	may
result	in	fires.
❷ Cleaning the...

142

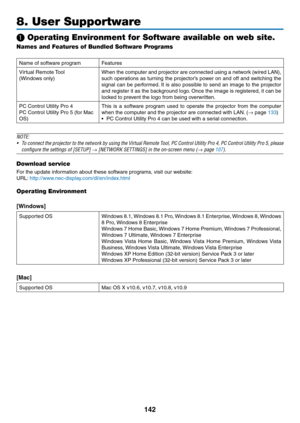

8. User Supportware
❶ Operating Environment for Software available on web site.
Names and Features of Bundled Software Programs
Name	of	software	programFeatures
Virtual	Remote	Tool
(Windows	only)
When	the	computer	and	projector	are	connected	using	a	network	(wired	LAN),
such	operations	as	turning	the	projector’s	power	on	and	off	and	switching	the
signal	can	be	performed.	It	is	also	possible	to	send	an	image	to	the	projector
and	register	it	as	the	background	logo.	Once	the	image	is	registered,	it...

143

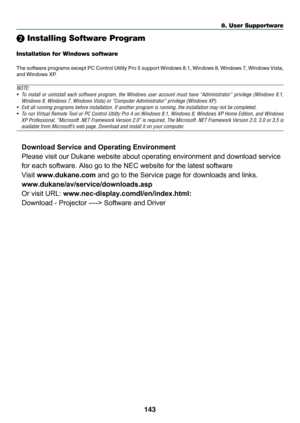

❷ Installing Software Program
Installation for Windows software
The	software	programs	except	PC	Control	Utility	Pro	5	support	Windows	8.1,	Windows	8,	Windows	7,	Windows	Vista,
and	Windows	XP.
NOTE:
•	 To	install	or	uninstall	each	software	program,	the	Windows	user	account	must	have	“Administrator”	privilege	(Windows	8.1,
Windows	8,	Windows	7,	Windows	Vista)	or	“Computer	Administrator”	privilege	(Windows	XP).
•	 Exit	all	running	programs	before	installation.	If	another	program	is	running,	the...

144

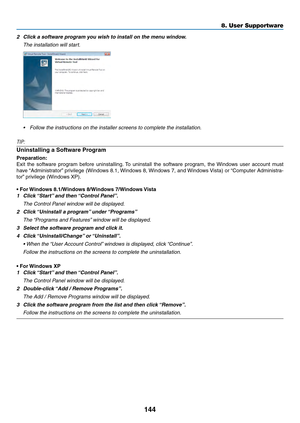

2	 Click	a	software	program	you	wish	to	install	on	the	menu	window.
	 The	installation	will	start.
•	 Follow	the	instructions	on	the	installer	screens	to	complete	the	installation.
TIP:
Uninstalling	a	Software	Program
Preparation:
Exit	the	software	program	before	uninstalling.	To	uninstall	the	software	program,	the	Windows	user	account	must
have	“Administrator”	privilege	(Windows	8.1,	Windows	8,	Windows	7,	and	Windows	Vista)	or	“Computer	Administra-
tor”	privilege	(Windows	XP).
•	For	Windows...

145

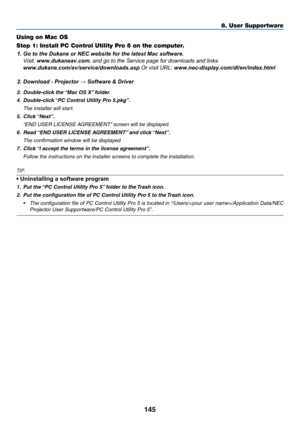

Using on Mac OS
Step 1: Install PC Control Utility Pro 5 on the computer.
3.	 Double-click	the	“Mac	OS	X”	folder.
4.	 Double-click	“PC	Control	Utility	Pro	5.pkg”.
	 The	installer	will	start.
5.	 Click	“Next”.
	 “END	USER	LICENSE	AGREEMENT”	screen	will	be	displayed.
6.	 Read	“END	USER	LICENSE	AGREEMENT”	and	click	“Next”.
	 The	confirmation	window	will	be	displayed
7.	 Click	“I	accept	the	terms	in	the	license	agreement”.
	 Follow	the	instructions	on	the	installer	screens	to	complete	the...

146

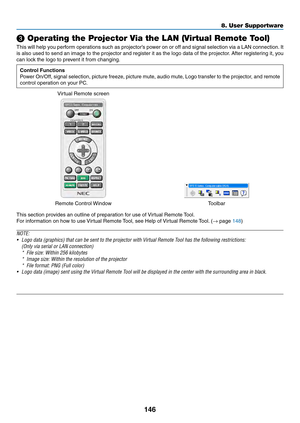

❸ Operating the Projector Via the LAN (Virtual Remote Tool)
This	will	help	you	perform	operations	such	as	projector’s	power	on	or	off	and	signal	selection	via	a	LAN	connection.	It
is	also	used	to	send	an	image	to	the	projector	and	register	it	as	the	logo	data	of	the	projector.	After	registering	it,	you
can	lock	the	logo	to	prevent	it	from	changing.
Control Functions
Power	On/Off,	signal	selection,	picture	freeze,	picture	mute,	audio	mute,	Logo	transfer	to	the	projector,	and	remote
control...

147

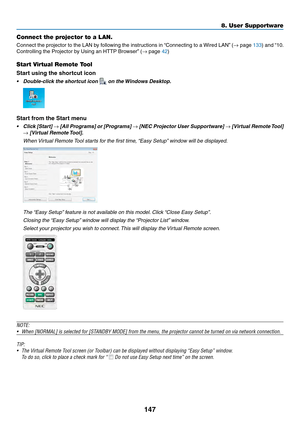

Connect the projector to a LAN.
Connect	the	projector	to	the	LAN	by	following	the	instructions	in	“Connecting	to	a	Wired	LAN”	(→	page	133)	and	“10.
Controlling	the	Projector	by	Using	an	HTTP	Browser”	(→	page	42)
Start Virtual Remote Tool
Start using the shortcut icon
•	 Double-click	the	shortcut	icon	 on the Windows Desktop.
Start from the Start menu
•	 Click	[Start]	→	[All	Programs]	or	[Programs]	→	[NEC	Projector	User	Supportware]	→	[Virtual	Remote	Tool]
→	[Virtual	Remote	Tool].
	 When	Virtual...
