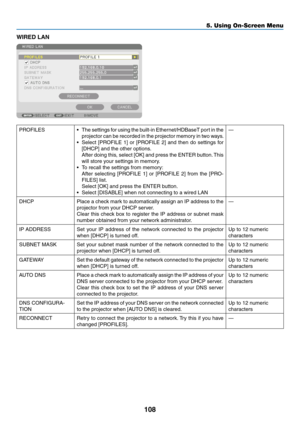

![Page 121
108
WIRED LAN
PROFILES• The settings for using the built-in Ethernet/HDBaseT port in the
projector can be recorded in the projector memory in two ways.
• Select [PROFILE 1] or [PROFILE 2] and then do settings for
[DHCP] and the other options.
After doing this, select [OK] and press the ENTER button. This
will store your settings in memory.
• To recall the settings from memory:
After selecting [PROFILE 1] or [PROFILE 2] from the [PRO-
FILES] list.
Select [OK] and press the ENTER button.
•...](http://img.usermanuals.tech/thumb/5762/100299/w300_projector_manual_9360_d-120.png "Page 121
108
WIRED LAN
PROFILES• The settings for using the built-in Ethernet/HDBaseT port in the
projector can be recorded in the projector memory in two ways.
• Select [PROFILE 1] or [PROFILE 2] and then do settings for
[DHCP] and the other options.
After doing this, select [OK] and press the ENTER button. This
will store your settings in memory.
• To recall the settings from memory:
After selecting [PROFILE 1] or [PROFILE 2] from the [PRO-
FILES] list.
Select [OK] and press the ENTER button.
•...")
108 WIRED LAN PROFILES• The settings for using the built-in Ethernet/HDBaseT port in the projector can be recorded in the projector memory in two ways. • Select [PROFILE 1] or [PROFILE 2] and then do settings for [DHCP] and the other options. After doing this, select [OK] and press the ENTER button. This will store your settings in memory. • To recall the settings from memory: After selecting [PROFILE 1] or [PROFILE 2] from the [PRO- FILES] list. Select [OK] and press the ENTER button. •...
Page 122

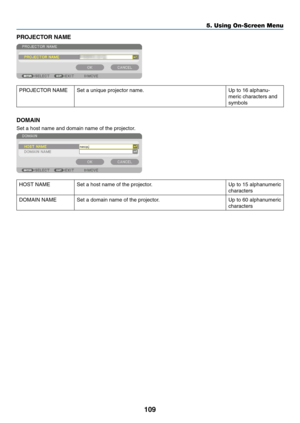

109 PROJECTOR NAME PROJECTOR NAMESet a unique projector name. Up to 16 alphanu- meric characters and symbols DOMAIN Set a host name and domain name of the projector. HOST NAMESet a host name of the projector.Up to 15 alphanumeric characters DOMAIN NAMESet a domain name of the projector.Up to 60 alphanumeric characters 5. Using On-Screen Menu
Page 123
![Page 123
110

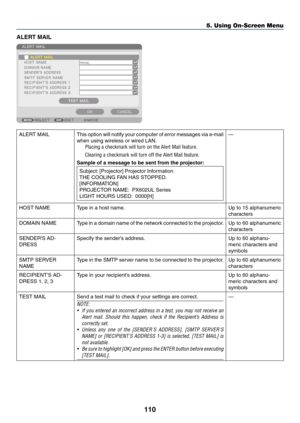

ALERT MAIL
ALERT MAILThis option will notify your computer of error messages via e-mail
when using wireless or wired LAN.
Placing a checkmark will turn on the Alert Mail feature�
Clearing a checkmark will turn off the Alert Mail feature�
Sample of a message to be sent from the projector:
Subject: [Projector] Projector Information
THE COOLING FAN HAS STOPPED.
[INFORMATION]
PROJECTOR NAME: PX602UL Series
LIGHT HOURS USED: 0000[H]
—
HOST NAMEType in a host name.Up to 15 alphanumeric
characters...](http://img.usermanuals.tech/thumb/5762/100299/w300_projector_manual_9360_d-122.png "Page 123
110
ALERT MAIL
ALERT MAILThis option will notify your computer of error messages via e-mail
when using wireless or wired LAN.
Placing a checkmark will turn on the Alert Mail feature�
Clearing a checkmark will turn off the Alert Mail feature�
Sample of a message to be sent from the projector:
Subject: [Projector] Projector Information
THE COOLING FAN HAS STOPPED.
[INFORMATION]
PROJECTOR NAME: PX602UL Series
LIGHT HOURS USED: 0000[H]
—
HOST NAMEType in a host name.Up to 15 alphanumeric
characters...")
110 ALERT MAIL ALERT MAILThis option will notify your computer of error messages via e-mail when using wireless or wired LAN. Placing a checkmark will turn on the Alert Mail feature� Clearing a checkmark will turn off the Alert Mail feature� Sample of a message to be sent from the projector: Subject: [Projector] Projector Information THE COOLING FAN HAS STOPPED. [INFORMATION] PROJECTOR NAME: PX602UL Series LIGHT HOURS USED: 0000[H] — HOST NAMEType in a host name.Up to 15 alphanumeric characters...
Page 124

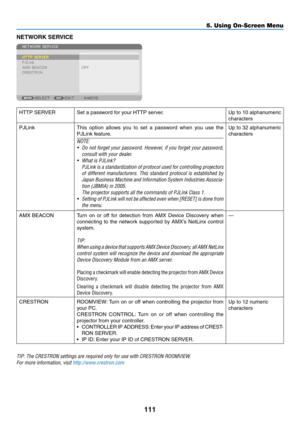

111 NETWORK SERVICE HTTP SERVERSet a password for your HTTP server.Up to 10 alphanumeric characters PJLink This option allows you to set a password when you use the PJLink feature. NOTE: • Do not forget your password. However, if you forget your password, consult with your dealer. • What is PJLink? PJLink is a standardization of protocol used for controlling projectors of different manufacturers. This standard protocol is established by Japan Business Machine and Information System Industries...
Page 125
![Page 125
112

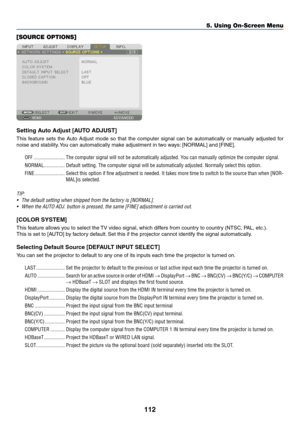

[SOURCE OPTIONS]
Setting Auto Adjust [AUTO ADJUST]
This feature sets the Auto Adjust mode so that the computer signal can be automatically or manually adjusted for
noise and stability. You can automatically make adjustment in two ways: [NORMAL] and [FINE].
OFF ������������������������The computer signal will not be automatically adjusted� You can manually optimize the computer signal�
NORMAL ����������������Default setting� The computer signal will be automatically adjusted� Normally select this...](http://img.usermanuals.tech/thumb/5762/100299/w300_projector_manual_9360_d-124.png "Page 125
112
[SOURCE OPTIONS]
Setting Auto Adjust [AUTO ADJUST]
This feature sets the Auto Adjust mode so that the computer signal can be automatically or manually adjusted for
noise and stability. You can automatically make adjustment in two ways: [NORMAL] and [FINE].
OFF ������������������������The computer signal will not be automatically adjusted� You can manually optimize the computer signal�
NORMAL ����������������Default setting� The computer signal will be automatically adjusted� Normally select this...")
112 [SOURCE OPTIONS] Setting Auto Adjust [AUTO ADJUST] This feature sets the Auto Adjust mode so that the computer signal can be automatically or manually adjusted for noise and stability. You can automatically make adjustment in two ways: [NORMAL] and [FINE]. OFF ������������������������The computer signal will not be automatically adjusted� You can manually optimize the computer signal� NORMAL ����������������Default setting� The computer signal will be automatically adjusted� Normally select this...
Page 126
![Page 126
113

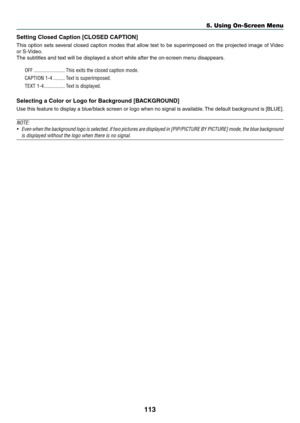

Setting Closed Caption [CLOSED CAPTION]
This option sets several closed caption modes that allow text to be superimposed on the projected image of Video
or S-Video.
The subtitles and text will be displayed a short while after the on-screen menu disappears.
OFF ������������������������This exits the closed caption mode�
CAPTION 1-4 ���������Text is superimposed�
TEXT 1-4 ����������������Text is displayed�
Selecting a Color or Logo for Background [BACKGROUND]
Use this feature to display a blue/black...](http://img.usermanuals.tech/thumb/5762/100299/w300_projector_manual_9360_d-125.png "Page 126
113
Setting Closed Caption [CLOSED CAPTION]
This option sets several closed caption modes that allow text to be superimposed on the projected image of Video
or S-Video.
The subtitles and text will be displayed a short while after the on-screen menu disappears.
OFF ������������������������This exits the closed caption mode�
CAPTION 1-4 ���������Text is superimposed�
TEXT 1-4 ����������������Text is displayed�
Selecting a Color or Logo for Background [BACKGROUND]
Use this feature to display a blue/black...")
113 Setting Closed Caption [CLOSED CAPTION] This option sets several closed caption modes that allow text to be superimposed on the projected image of Video or S-Video. The subtitles and text will be displayed a short while after the on-screen menu disappears. OFF ������������������������This exits the closed caption mode� CAPTION 1-4 ���������Text is superimposed� TEXT 1-4 ����������������Text is displayed� Selecting a Color or Logo for Background [BACKGROUND] Use this feature to display a blue/black...
Page 127
![Page 127
114

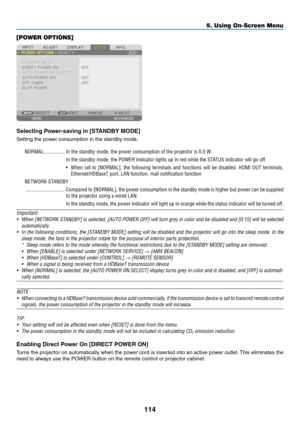

[POWER OPTIONS]
Selecting Power-saving in [STANDBY MODE]
Setting the power consumption in the standby mode.
NORMAL ����������������In the standby mode, the power consumption of the projector is 0�5 W�
In the standby mode, the POWER indicator lights up in red while the STATUS indicator will go off�
• When set to [NORMAL], the following terminals and functions will be disabled. HDMI OUT terminals,
Ethernet/HDBaseT port, LAN function, mail notification function
NETWORK STANDBY...](http://img.usermanuals.tech/thumb/5762/100299/w300_projector_manual_9360_d-126.png "Page 127
114
[POWER OPTIONS]
Selecting Power-saving in [STANDBY MODE]
Setting the power consumption in the standby mode.
NORMAL ����������������In the standby mode, the power consumption of the projector is 0�5 W�
In the standby mode, the POWER indicator lights up in red while the STATUS indicator will go off�
• When set to [NORMAL], the following terminals and functions will be disabled. HDMI OUT terminals,
Ethernet/HDBaseT port, LAN function, mail notification function
NETWORK STANDBY...")
114 [POWER OPTIONS] Selecting Power-saving in [STANDBY MODE] Setting the power consumption in the standby mode. NORMAL ����������������In the standby mode, the power consumption of the projector is 0�5 W� In the standby mode, the POWER indicator lights up in red while the STATUS indicator will go off� • When set to [NORMAL], the following terminals and functions will be disabled. HDMI OUT terminals, Ethernet/HDBaseT port, LAN function, mail notification function NETWORK STANDBY...
Page 128
![Page 128

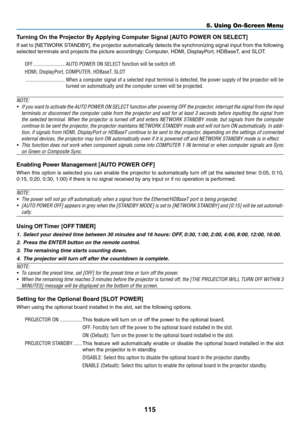

115
Turning On the Projector By Applying Computer Signal [AUTO POWER ON SELECT]
If set to [NETWORK STANDBY], the projector automatically detects the synchronizing signal input from the following
selected terminals and projects the picture accordingly: Computer, HDMI, DisplayPort, HDBaseT, and SLOT.
OFF ������������������������AUTO POWER ON SELECT function will be switch off�
HDMI, DisplayPort, COMPUTER, HDBaseT, SLOT
������������������������������When a computer signal of a selected input terminal is...](http://img.usermanuals.tech/thumb/5762/100299/w300_projector_manual_9360_d-127.png "Page 128
115
Turning On the Projector By Applying Computer Signal [AUTO POWER ON SELECT]
If set to [NETWORK STANDBY], the projector automatically detects the synchronizing signal input from the following
selected terminals and projects the picture accordingly: Computer, HDMI, DisplayPort, HDBaseT, and SLOT.
OFF ������������������������AUTO POWER ON SELECT function will be switch off�
HDMI, DisplayPort, COMPUTER, HDBaseT, SLOT
������������������������������When a computer signal of a selected input terminal is...")
115 Turning On the Projector By Applying Computer Signal [AUTO POWER ON SELECT] If set to [NETWORK STANDBY], the projector automatically detects the synchronizing signal input from the following selected terminals and projects the picture accordingly: Computer, HDMI, DisplayPort, HDBaseT, and SLOT. OFF ������������������������AUTO POWER ON SELECT function will be switch off� HDMI, DisplayPort, COMPUTER, HDBaseT, SLOT ������������������������������When a computer signal of a selected input terminal is...
Page 129
![Page 129
116

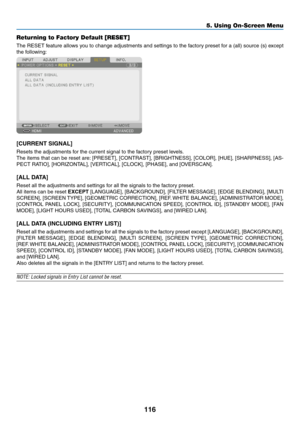

Returning to Factory Default [RESET]
The RESET feature allows you to change adjustments and settings to the factory preset for a (all) source (s) except
the following:
[CURRENT SIGNAL]
Resets the adjustments for the current signal to the factory preset levels.
The items that can be reset are: [PRESET], [CONTRAST], [BRIGHTNESS], [COLOR], [HUE], [SHARPNESS], [AS-
PECT RATIO], [HORIZONTAL], [VERTICAL], [CLOCK], [PHASE], and [OVERSCAN].
[ALL DATA]
Reset all the adjustments and settings for all the...](http://img.usermanuals.tech/thumb/5762/100299/w300_projector_manual_9360_d-128.png "Page 129
116
Returning to Factory Default [RESET]
The RESET feature allows you to change adjustments and settings to the factory preset for a (all) source (s) except
the following:
[CURRENT SIGNAL]
Resets the adjustments for the current signal to the factory preset levels.
The items that can be reset are: [PRESET], [CONTRAST], [BRIGHTNESS], [COLOR], [HUE], [SHARPNESS], [AS-
PECT RATIO], [HORIZONTAL], [VERTICAL], [CLOCK], [PHASE], and [OVERSCAN].
[ALL DATA]
Reset all the adjustments and settings for all the...")
116 Returning to Factory Default [RESET] The RESET feature allows you to change adjustments and settings to the factory preset for a (all) source (s) except the following: [CURRENT SIGNAL] Resets the adjustments for the current signal to the factory preset levels. The items that can be reset are: [PRESET], [CONTRAST], [BRIGHTNESS], [COLOR], [HUE], [SHARPNESS], [AS- PECT RATIO], [HORIZONTAL], [VERTICAL], [CLOCK], [PHASE], and [OVERSCAN]. [ALL DATA] Reset all the adjustments and settings for all the...
Page 130
![Page 130
117

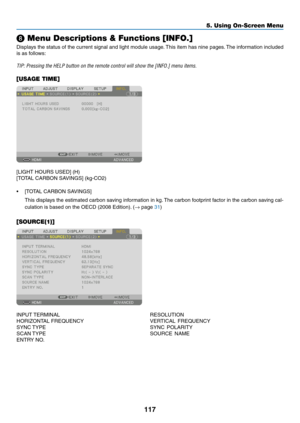

❽ Menu Descriptions & Functions [INFO.]
