Dukane Projector 6860WUSS User Manual

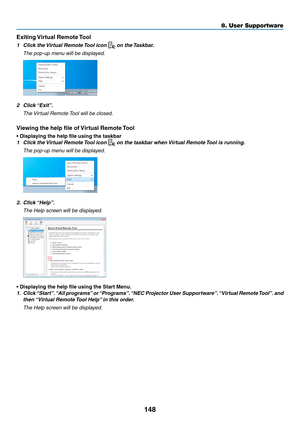

148
Exiting	Virtual	Remote	Tool
1	 Click	the	Virtual	Remote	Tool	icon	 on the Taskbar.
	 The	pop-up	menu	will	be	displayed.
2	 Click	“Exit”.
	 The	Virtual	Remote	Tool	will	be	closed.
Viewing	the	help	file	of	Virtual	Remote	Tool
•	Displaying	the	help	file	using	the	taskbar
1	 Click	the	Virtual	Remote	Tool	icon		on	the	taskbar	when	Virtual	Remote	Tool	is	running.
	 The	pop-up	menu	will	be	displayed.
2.	 Click	“Help”.
	 The	Help	screen	will	be	displayed.
•	Displaying	the	help	file	using	the	Start	Menu.
1....

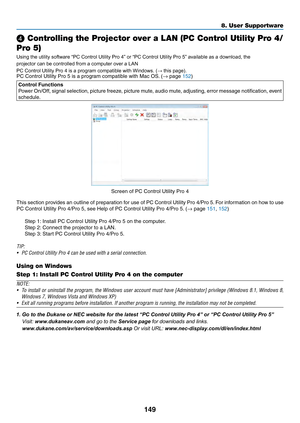

149
❹ Controlling the Projector over a LAN (PC Control Utility Pro 4/
Pro 5)
Using the utility software “PC Control Utility Pro 4” or “PC Control Utility Pro 5” available as a download, the
projector can be controlled from a computer over a LAN
PC Control Utility Pro 4 is a program compatible with Windows. (→ this page).

PC	Control	Utility	Pro	5	is	a	program	compatible	with	Mac	OS.	(→	page	152)
Control Functions
Power	On/Off,	signal	selection,	picture	freeze,	picture	mute,	audio	mute,	adjusting,	error...

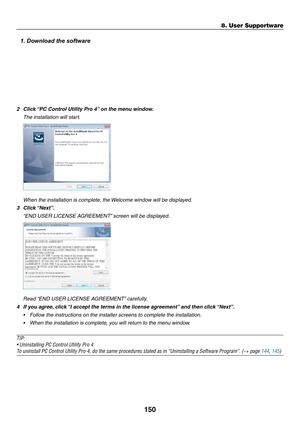

150
2	 Click	“PC	Control	Utility	Pro	4”	on	the	menu	window.
	 The	installation	will	start.
	 When	the	installation	is	complete,	the	Welcome	window	will	be	displayed.
3	 Click	“Next”.
	 “END	USER	LICENSE	AGREEMENT”	screen	will	be	displayed.
	 Read	“END	USER	LICENSE	AGREEMENT”	carefully.
4	 If	you	agree,	click	“I	accept	the	terms	in	the	license	agreement”	and	then	click	“Next”.
•	 Follow	the	instructions	on	the	installer	screens	to	complete	the	installation.
•	 When	the	installation	is	complete,	you	will...

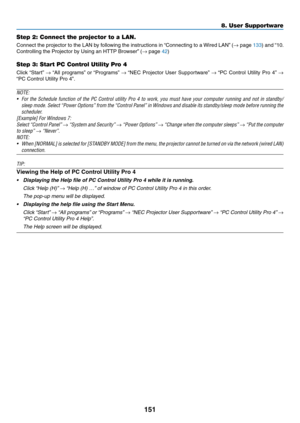

151
Step 2: Connect the projector to a LAN.
Connect	the	projector	to	the	LAN	by	following	the	instructions	in	“Connecting	to	a	Wired	LAN”	(→	page	133)	and	“10.
Controlling	the	Projector	by	Using	an	HTTP	Browser”	(→	page	42)
Step 3: Start PC Control Utility Pro 4
Click	“Start”	→	“All	programs”	or	“Programs”	→	“NEC	Projector	User	Supportware”	→	“PC	Control	Utility	Pro	4”	→
“PC	Control	Utility	Pro	4”.
NOTE:
•	 For	the	Schedule	function	of	the	PC	Control	utility	Pro	4	to	work,	you	must	have	your	computer...

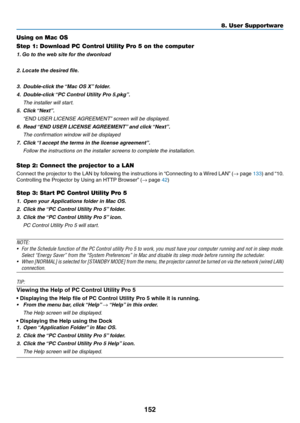

152
Using on Mac OS
Step 1: Download PC Control Utility Pro 5 on the computer
1.	Go to the web site for the dwonload
	The	CD-ROM	icon	will	be	displayed	on	the	desktop.
2.	Locate the desired file.
	The	CD-ROM	window	will	be	displayed.
3.	 Double-click	the	“Mac	OS	X”	folder.
4.	 Double-click	“PC	Control	Utility	Pro	5.pkg”.
	 The	installer	will	start.
5.	 Click	“Next”.
	 “END	USER	LICENSE	AGREEMENT”	screen	will	be	displayed.
6.	 Read	“END	USER	LICENSE	AGREEMENT”	and	click	“Next”.
	 The	confirmation	window...

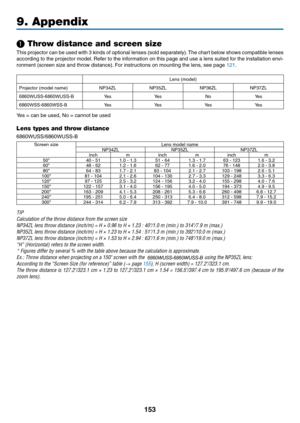

153
9. Appendix
❶ Throw distance and screen size
This	projector	can	be	used	with	3	kinds	of	optional	lenses	(sold	separately).	The	chart	below	shows	compatible	lenses
according	to	the	projector	model.	Refer	to	the	information	on	this	page	and	use	a	lens	suited	for	the	installation	envi-
ronment	(screen	size	and	throw	distance).	For	instructions	on	mounting	the	lens,	see	page	121.
Lens	(model)
Projector	(model	name)NP34ZLNP35ZLNP36ZLNP37ZL
6860WUSS-6860WUSS-B Ye sYe s NoYe s
6860WSS-6860WSS-B Ye sYe sYe...

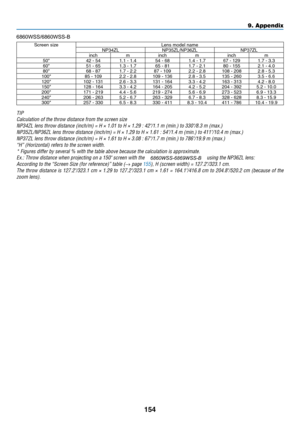

154
6860WSS/6860WSS-B
Screen	sizeLens	model	nameNP34ZLNP35ZL/NP36ZL NP37ZL
inch minch minch m
50"
42	-	541.1 - 1.454	-	681.4	-	1.767	-	1291.7	-	3.360"51	-	651.3	-	1.765	-	811.7	-	2.180	-	1552.1 - 4.0
80"68	-	871.7	-	2.287	-	1092.2	-	2.8108	-	2082.8	-	5.3100"85	-	1092.2	-	2.8109	-	1362.8	-	3.5135	-	2603.5	-	6.6120"102	-	1312.6	-	3.3131	-	1643.3	-	4.2163	-	3134.2	-	8.0150"128	-	1643.3	-	4.2164	-	2054.2	-	5.2204	-	3925.2	-	10.0200"171	-	2194.4	-	5.6219	-	2745.6	-	6.9273	-	5236.9...

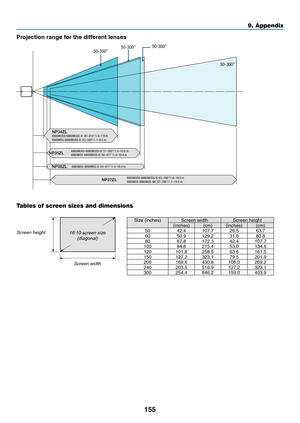

155
Projection	range	for	the	different	lenses
50-300
50-30050-30050-300
NP34ZL6860WUSS-6860WUSS-B: 40–314/1.0–7.9 m
6860WSS-6860WUSS-B: 42–330/1.1–8.3 m
NP36ZL    6860WSS-6860WSS-B: 54–411/1.4–10.4 m
P6860WUSS-6860WUSS-B: 63–748/1.6–19.0 m
P6860WSS-6860WSS-BK: 67–786/1.7–19.9 mNP37ZL
6860WUSS-6860WUSS-B: 51–392/1.3–10.0 m
6860WSS-6860WUSS-B: 54–411/1.4–10.4 m NP35ZL
Tables of screen sizes and dimensions
Screen	height
Screen
	width
16:10	screen	size
(diagonal)
Size	(inches)Screen	widthScreen...

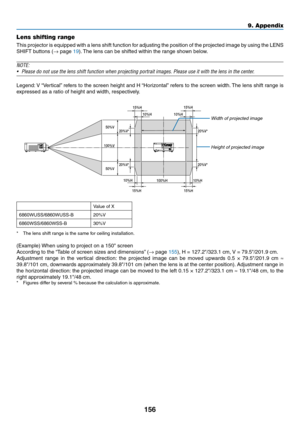

156
Lens shifting range
This	projector	is	equipped	with	a	lens	shift	function	for	adjusting	the	position	of	the	projected	image	by	using	the	LENS
SHIFT	buttons	(→	page	19).	The	lens	can	be	shifted	within	the	range	shown	below.
NOTE:
•	 Please	do	not	use	the	lens	shift	function	when	projecting	portrait	images.	Please	use	it	with	the	lens	in	the	center.
Legend:	V	“Vertical”	refers	to	the	screen	height	and	H	“Horizontal”	refers	to	the	screen	width.	The	lens	shift	range	is
expressed	as	a	ratio	of	height...

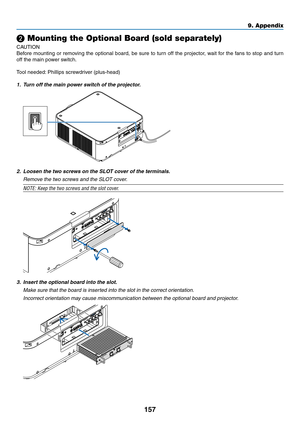

157
❷ Mounting the Optional Board (sold separately)
CAUTION
Before	mounting	or	removing	the	optional	board,	be	sure	to	turn	off	the	projector,	wait	for	the	fans	to	stop	and	turn
off	the	main	power	switch.
Tool	needed:	Phillips	screwdriver	(plus-head)
1.	 Turn	off	the	main	power	switch	of	the	projector.
2.	 Loosen	the	two	screws	on	the	SLOT	cover	of	the	terminals.
	 Remove	the	two	screws	and	the	SLOT	cover.
NOTE:	Keep	the	two	screws	and	the	slot	cover.
3. Insert the optional board into the slot.
	 Make...
