Dukane Projector 6860WUSS User Manual

118

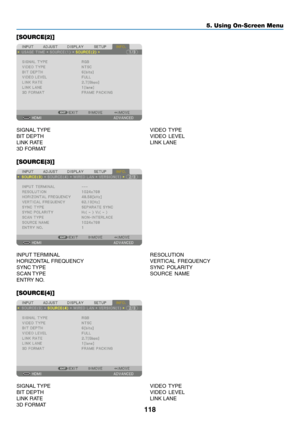

[SOURCE(2)]
SIGNAL	TYPE	VIDEO	TYPE
BIT	DEPTH	 VIDEO	LEVEL
LINK	RATE	LINK	LANE
3D	FORMAT
[SOURCE(3)]
INPUT	TERMINAL	RESOLUTION
HORIZONTAL	FREQUENCY	VERTICAL	FREQUENCY
SYNC	TYPE	 SYNC	POLARITY
SCAN	TYPE	SOURCE	NAME
ENTRY	NO.
[SOURCE(4)]
SIGNAL	TYPE	VIDEO	TYPE
BIT	DEPTH	 VIDEO	LEVEL
LINK	RATE	LINK	LANE
3D	FORMAT
5. Using On-Screen Menu

119

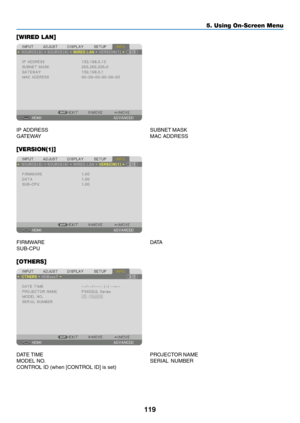

[WIRED LAN]
IP	ADDRESS	SUBNET	MASK
GATEWAY	 MAC	ADDRESS
[VERSION(1)]
FIRMWARE	DATA
SUB-CPU
[OTHERS]
DATE	TIME	PROJECTOR	NAME
MODEL	NO.	SERIAL	NUMBER
CONTROL	ID	(when	[CONTROL	ID]	is	set)
5. Using On-Screen Menu

120

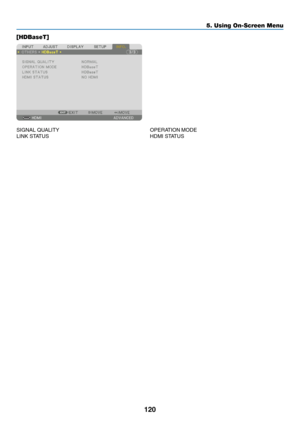

[HDBaseT]
SIGNAL	QUALITY	OPERATION	MODE
LINK	STATUS	 HDMI	STATUS
5. Using On-Screen Menu

121

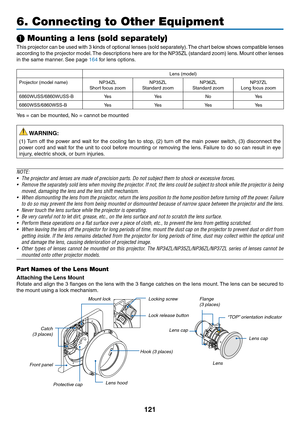

❶ Mounting a lens (sold separately)
This	projector	can	be	used	with	3	kinds	of	optional	lenses	(sold	separately).	The	chart	below	shows	compatible	lenses
according	to	the	projector	model.	The	descriptions	here	are	for	the	NP35ZL	(standard	zoom)	lens.	Mount	other	lenses
in	the	same	manner.	See	page	164	for	lens	options.
Lens	(model)
Projector	(model	name)NP34ZLShort	focus	zoomNP35ZLStandard	zoomNP36ZLStandard	zoomNP37ZLLong	focus	zoom
6860WUSS/6860WUSS-BYe sYe s NoYe s
6860WSS/6860WSS-B Ye sYe sYe...

122

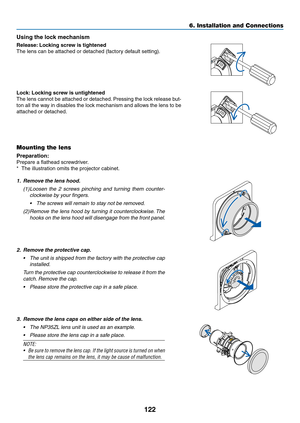

Using	the	lock	mechanism
Release:	Locking	screw	is	tightened
The	lens	can	be	attached	or	detached	(factory	default	setting).
Lock:	Locking	screw	is	untightened
The	lens	cannot	be	attached	or	detached.	Pressing	the	lock	release	but-
ton	all	the	way	in	disables	the	lock	mechanism	and	allows	the	lens	to	be
attached	or	detached.
Mounting the lens
Preparation:
Prepare	a	flathead	screwdriver.
*	 The	illustration	omits	the	projector	cabinet.
1. Remove the lens hood.
(1)	Loosen	the	2	screws	pinching	and...

123

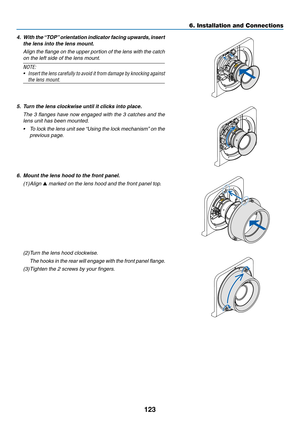

4.	 With	the	“TOP”	orientation	indicator	facing	upwards,	insert
the lens into the lens mount.
	 Align	the	flange	on	the	upper	portion	of	the	lens	with	the	catch
on	the	left	side	of	the	lens	mount.
NOTE:
•	 Insert	the	lens	carefully	to	avoid	it	from	damage	by	knocking	against
the lens mount.
5. Turn the lens clockwise until it clicks into place.
	 The	3	flanges	have	now	engaged	with	the	3	catches	and	the
lens	unit	has	been	mounted.
•	 To	lock	the	lens	unit	see	“Using	the	lock	mechanism”	on	the...

124

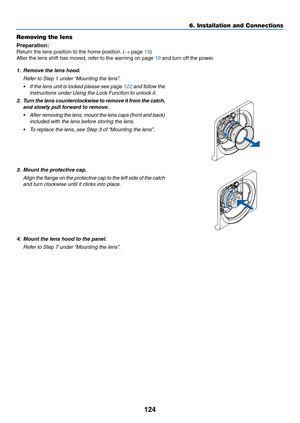

Removing the lens
Preparation:
Return	the	lens	position	to	the	home	position.	(→	page	19)
After	the	lens	shift	has	moved,	refer	to	the	warning	on	page	19	and	turn	off	the	power.
1. Remove the lens hood.
	 Refer	to	Step	1	under	“Mounting	the	lens”.
•	 If	the	lens	unit	is	locked	please	see	page	122	and	follow	the
instructions	under	Using	the	Lock	Function	to	unlock	it.
2.	 Turn	the	lens	counterclockwise	to	remove	it	from	the	catch,
and	slowly	pull	forward	to	remove.
•	 After	removing	the	lens,	mount...

125

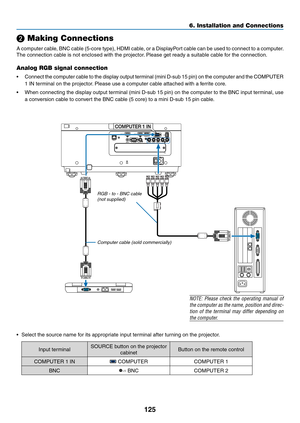

❷ Making Connections
A	computer	cable,	BNC	cable	(5-core	type),	HDMI	cable,	or	a	DisplayPort	cable	can	be	used	to	connect	to	a	computer.
The	connection	cable	is	not	enclosed	with	the	projector.	Please	get	ready	a	suitable	cable	for	the	connection.
Analog RGB signal connection
•	 Connect	the	computer	cable	to	the	display	output	terminal	(mini	D-sub	15	pin)	on	the	computer	and	the	COMPUTER
1	IN	terminal	on	the	projector.	Please	use	a	computer	cable	attached	with	a	ferrite	core.
•	 When	connecting	the...

126

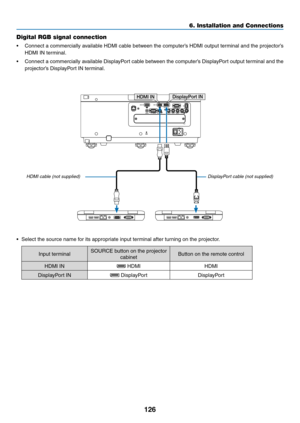

Digital RGB signal connection
•	 Connect	a	commercially	available	HDMI	cable	between	the	computer’s	HDMI	output	terminal	and	the	projector’s
HDMI	IN	terminal.
•	 Connect	a	commercially	available	DisplayPort	cable	between	the	computer’s	DisplayPort	output	terminal	and	the
projector’s	DisplayPort	IN	terminal.
•	 Select	the	source	name	for	its	appropriate	input	terminal	after	turning	on	the	projector.
Input	terminalSOURCE	button	on	the	projector
cabinetButton	on	the	remote	control
HDMI	IN	HDMIHDMI...

127

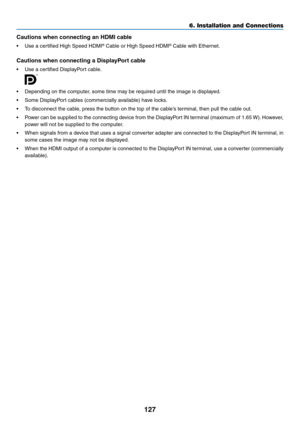

Cautions	when	connecting	an	HDMI	cable
•	 Use	a	certified	High	Speed	HDMI®	Cable	or	High	Speed	HDMI®	Cable	with	Ethernet.
Cautions	when	connecting	a	DisplayPort	cable
•	 Use	a	certified	DisplayPort	cable.

•	 Depending	on	the	computer,	some	time	may	be	required	until	the	image	is	displayed.
•	 Some	DisplayPort	cables	(commercially	available)	have	locks.
•	 To	disconnect	the	cable,	press	the	button	on	the	top	of	the	cable’s	terminal,	then	pull	the	cable	out.
•	 Power	can	be	supplied	to	the	connecting...
