Dukane Projector 8120WIA User Manual

71

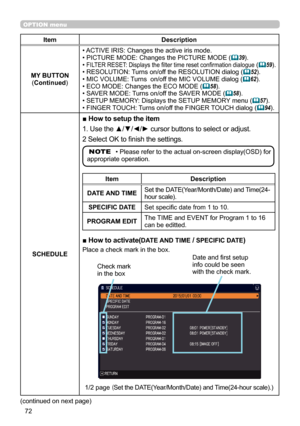

OPTION menu
ItemDescription

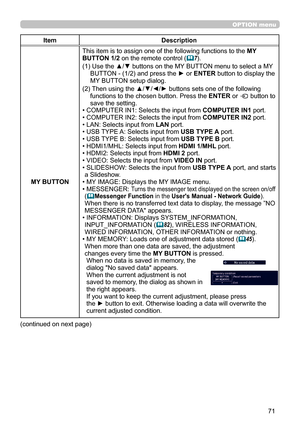

MY BUTTON This item is to assign one of the following functions to the
MY
BUTTON 1/2 on the remote control (
 7).
(1)
  Use the ▲/▼ buttons on the MY BUTTON menu to select a MY
BUTTON - (1/2) and press the ► or  ENTER button to display the
MY BUTT

ON setup dialog.
(2)
  Then using the ▲/▼/◄/► buttons sets one of the following
functions to the chosen button. Press the ENTER or  button to
save the setting.
• COMPUTER IN1: Selects the input from COMPUTER IN1 port.
•...

72
OPTION menu
ItemDescription
MY BUTTON (Continued )•
 ACTIVE IRIS: Changes the active iris mode.
• PICTURE MODE: Changes the PICTURE MODE (
 39).
•  FILTER RESET: Displays the filter time reset confirmation dialogue ( 59
).
•  RESOLUTION: Turns on/off the RESOLUTION dialog ( 52).
•  MIC VOLUME: Turns  on/off the MIC VOLUME dialog ( 62).
•  ECO MODE: Changes the ECO MODE ( 58).
•  SAVER MODE: Turns on/off the SAVER MODE ( 58).
• SETUP MEMORY: Displays the SETUP MEMORY menu ( 57).
• FINGER TOUCH:...

73
OPTION menu
ItemDescription
SCHEDULE
(Continued ) 2/2 page (Set specific date from 1 to 10.)
Press the ▼ cursor button to move from 1/2 page to 2/2 page with
the state of selecting "SATURDAY".
■ PROGRAM EDIT
The TIME and EVENT for Program 1 to 16 can be editted.
• RETURN
Select this to go back
to the top menu of the
SCHEDULE.
• SELECT
Select from PROGRAM-01
to 16 to edit.
Each PROGRAM can be
setup up to 20 settings
• COPY TO
The selected program (with the settings of TIME and EVENT)
can...

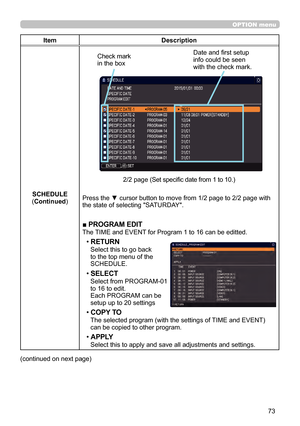

74
OPTION menu
ItemDescription
SCHEDULE
(Continued )

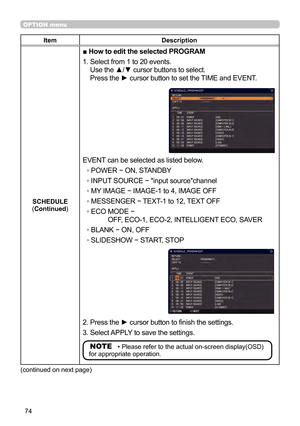

■ How to edit the selected PROGRAM
1.
 Select from 1 to 20 events.
Use the ▲/▼ cursor buttons to select.
Press the ► cursor button to set the TIME and EVENT.
EVENT can be selected as listed below. ◦ POWER − ON, STANDBY
◦ INPUT SOURCE − "input source"channel
◦ MY

 IMAGE − IMAGE-1 to 4, IMAGE OFF
◦ MESSENGER − TEXT-1 to 12, TEXT OFF
◦ ECO
 MODE −
OFF, ECO-1, ECO-2,  INTELLIGENT ECO, SAVER
◦ BLANK − ON, OFF
◦ SLIDESHOW − STAR

T, STOP
2....

75
OPTION menu
ItemDescription

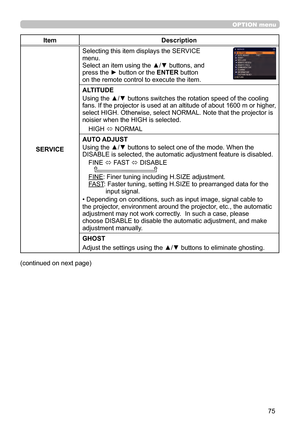

SERVICE Selecting this item displays the SERVICE
menu.
Select an item using the ▲/▼ buttons, and
press the ► button or the ENTER button
on the remote control to execute the item.
ALTITUDE
Using the ▲/▼ buttons switches the rotation speed of the cooling
fans. If the projector is used at an altitude of about 1600 m or higher,
select HIGH. Otherwise, select NORMAL. Note that the projector is
noisier when the HIGH is selected.
HIGH  ó NORMAL
AUTO ADJUST
Using the ▲/▼...

76
OPTION menu
ItemDescription
SERVICE

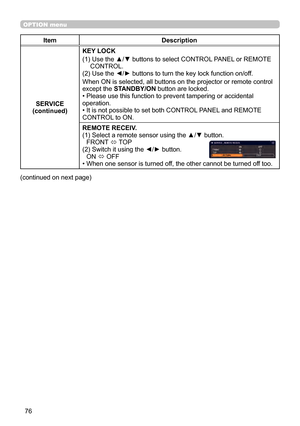

(continued) KEY LOCK
(1)
 Use the ▲/▼ buttons to select CONTROL PANEL or REMOTE
CONTROL.
(2) Use the ◄/► buttons to turn the key lock function on/off.
When ON is selected, all buttons on the projector or remote control
except the STANDBY/ON

 button are locked.
• Please use this function to prevent tampering or accidental
operation.
• It is not possible to set both CONTROL PANEL and REMOTE
CONTROL to ON.
REMOTE RECEIV.
(1) Select a remote sensor using the ▲/▼...

77
OPTION menu
ItemDescription
SERVICE

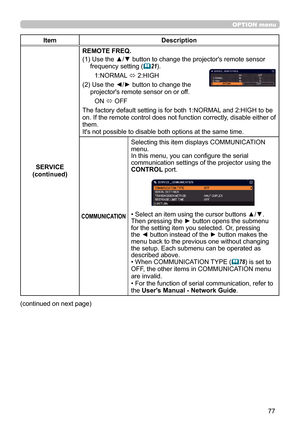

(continued) REMOTE FREQ.
(1)
  Use the ▲/▼ button to change the projector's remote sensor
frequency setting (

21).
1:NORMAL  ó 2:HIGH
(2)
  Use the ◄/► button to change the
projector's remote sensor on or off. ON  ó OFF
The factory default setting is for both 1:NORMAL and 2:HIGH to be
on. If the remote control does not function correctly, disable either of
them.
It's not possible to disable both options at the same time.
COMMUNICATION
Selecting...

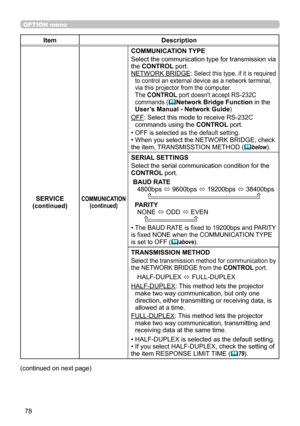

78
OPTION menu
ItemDescription
SERVICE
(continued)
COMMUNICATION (continued)
COMMUNICATION TYPE
Select the communication type for transmission via
the CONTROL port.
NETWORK BRIDGE:
Select this type, if it is required
to control an external device as a network terminal,
via this projector from the computer.
The CONTROL port doesn't accept RS-232C
commands (
 Network Bridge Function
 in the
User’s Manual - Network Guide)
OFF: Select this mode to receive RS-232C  commands using the  CONTROL...

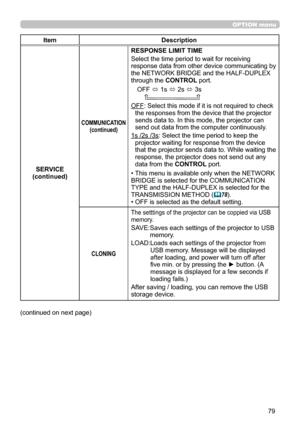

79
OPTION menu
ItemDescription
SERVICE
(continued)
COMMUNICATION (continued)
RESPONSE LIMIT TIME
Select the time period to wait for receiving
response data from other device communicating by
the NETWORK BRIDGE and the HALF-DUPLEX
through the CONTROL port.
OFF  ó 1s
ó 2s
ó 3s

OFF: Select this mode if it is not required to check  the responses from the device that the projector
sends data to. In this mode, the projector can
send out data from the computer continuously.
1s /2s /3s: Select the...

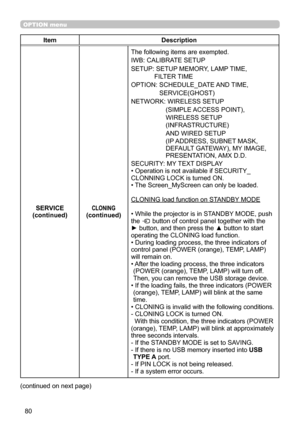

80
OPTION menu
ItemDescription
SERVICE
(continued)
CLONING(continued)
The following items are exempted.
IWB: CALIBRATE SETUP
SETUP:
 SETUP MEMORY,  LAMP TIME,
FILTER TIME
OPTION: SCHEDULE_DATE AND TIME,  SERVICE(GHOST)
NETWORK:
 WIRELESS SETUP
(SIMPLE ACCESS POINT),
WIRELESS SETUP
(INFRASTRUCTURE)

AND WIRED SETUP
(IP ADDRESS, SUBNET MASK,
DEFAULT GATEWAY), MY IMAGE,
PRESENTATION, AMX D.D.
SECURITY: MY TEXT DISPLAY
• Operation is not available if SECURITY_
CLONNING LOCK is turned ON.
• The...
