Dukane Projector 8121WIA User Manual

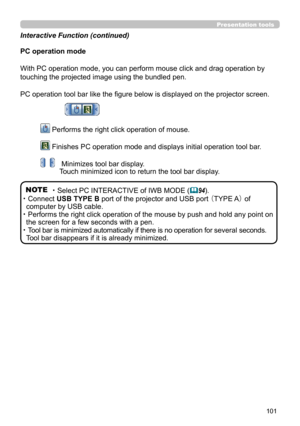

101
Presentation tools
PC operation mode
With PC operation mode, you can perform mouse click and drag operation by
touching the projected image using the bundled pen.
PC operation tool bar like the figure below is displayed on the projector screen.
 Performs the right click operation of mouse.
 Finishes PC operation mode and displays initial operation tool bar.
  Minimizes tool bar display.
Touch minimized icon to return the tool bar display.
NOTE ・Select PC INTERACTIVE of IWB MODE (
94).
・
 Connect...

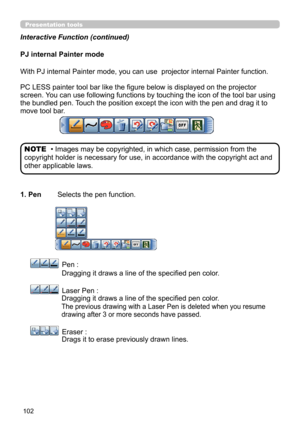

102
Presentation tools
PJ internal Painter mode
With PJ internal Painter mode, you can use  projector internal Painter function.
PC LESS painter tool bar like the figure below is displayed on the projector
screen. You can use following functions by touching the icon of the tool bar using
the bundled pen. Touch the position except the icon with the pen and drag it to
move tool bar.
1. Pen
   Selects the pen function.
     Pen :
   Dragging it draws a line of the specified pen color.
      Laser Pen...

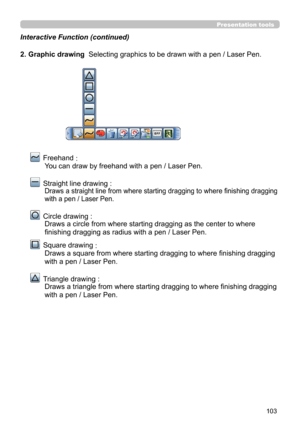

103
Presentation tools
Interactive Function (continued)
2. Graphic drawing  Selecting graphics to be drawn with a pen / Laser Pen.
   Freehand
 :
 You can draw by freehand with a pen / Laser Pen.
   Straight line drawing :  Draws a straight line from where starting dragging to where finishing dragging
with a pen / Laser Pen.
   Circle drawing :
Draws a circle from where starting dragging as the center to where
finishing dragging as radius with a pen / Laser Pen.
   Square drawing  :
 Draws a square...

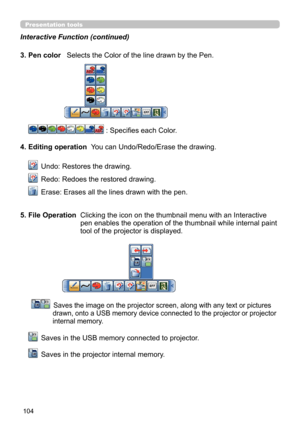

104
Presentation tools
Interactive Function (continued)
3. Pen color
 Selects the Color of the line drawn by the Pen.
 : Specifies each Color.
4. Editing operation
 You can Undo/Redo/Erase the drawing.
   Undo: Restores the drawing.
   Redo: Redoes the restored drawing.
   Erase: Erases all the lines drawn with the pen.
5. File Operation   Clicking the icon on the thumbnail menu with an Interactive
  pen enables the operation of the thumbnail while internal paint
  tool of the projector is...

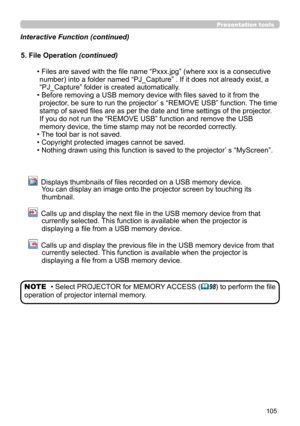

105
Presentation tools
Interactive Function (continued)5. File Operation  (continued)
•
 Files are saved with the file name “Pxxx.jpg” (where xxx is a consecutive
number) into a folder named “PJ_Capture” . If it does not already exist, a
“PJ_Capture” folder is created automatically.
•
 Before removing a USB memory device with files saved to it from the
projector, be sure to run the projector’ s “REMOVE USB” function. The time
stamp of saved files are as per the date and time settings of the...

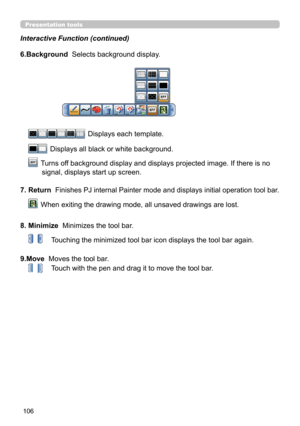

106
Presentation tools
Interactive Function (continued)
6.Background  Selects background display.
  Displays each template.
   Displays all black or white background.
   Turns off background display and displays projected image. If there is no
   signal, displays start up screen.
7. Return
Finishes PJ internal Painter mode and displays initial operation tool bar.
   When exiting the drawing mode, all unsaved drawings are lost.
8. Minimize
 Minimizes the tool bar.
  Touching the minimized tool bar...

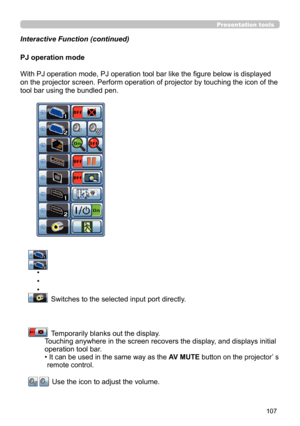

107
Presentation tools
Interactive Function (continued)
PJ operation mode
With PJ operation mode, PJ operation tool bar like the figure below is displayed
on the projector screen. Perform operation of projector by touching the icon of the
tool bar using the bundled pen.



•
      •
      •
    Switches to the selected input port directly.
     Temporarily blanks out the display.
Touching anywhere in the screen recovers the display, and displays initial
operation tool bar.
•
 It can be used...

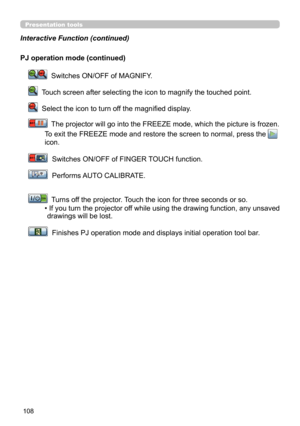

108
Presentation tools
Interactive Function (continued)
PJ operation mode (continued)
  Switches ON/OFF of MAGNIFY.
  Touch screen after selecting the icon to magnify the touched point.
  Select the icon to turn off the magnified display.
  The projector will go into the FREEZE mode, which the picture is frozen.
To exit the FREEZE mode and restore the screen to normal, press the

icon.
  Switches ON/OFF of FINGER TOUCH function.
  Performs AUTO CALIBRATE.
   Turns off the projector. Touch the icon for...

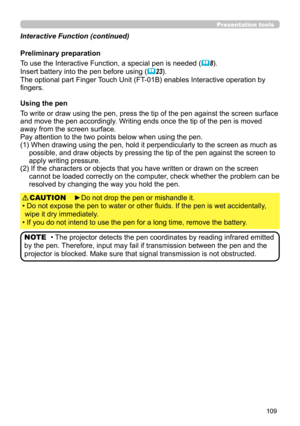

109
Presentation tools
Interactive Function (continued)
Preliminary preparation
To use the Interactive Function, a special pen is needed (
8).
Insert battery into the pen before using (
23).
The optional part Finger Touch Unit (FT-01B) enables Interactive operation by
fingers.
Using the pen
To write or draw using the pen, press the tip of the pen against the screen surface
and move the pen accordingly. Writing ends once the tip of the pen is moved
away from the screen surface.
Pay attention to the...

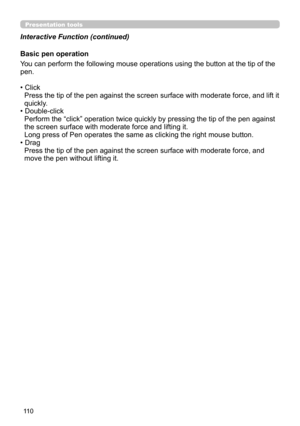

11 0
Presentation tools
Interactive Function (continued)
Basic pen operation
You can perform the following mouse operations using the button at the tip of the
pen.
• ClickPress the tip of the pen against the screen surface with moderate force, and lift it
quickly.
• Double-click Perform the “click” operation twice quickly by pressing the tip of the pen against
the screen surface with moderate force and lifting it.
Long press of Pen operates the same as clicking the right mouse button.
• Drag Press the...
