Dukane Projector 8121WIA User Manual

111
Presentation tools
Interactive Function (continued)

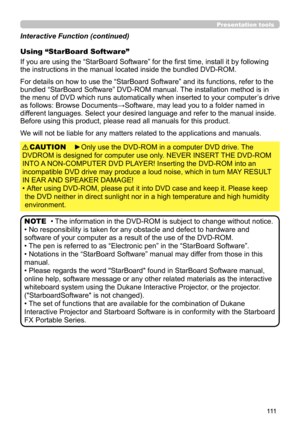

Using “StarBoard Software”
If you are using the “StarBoard Software” for the first time, install it by following
the instructions in the manual located inside the bundled DVD-ROM.
For details on how to use the “StarBoard Software” and its functions, refer to the
bundled “StarBoard Software” DVD-ROM manual. The installation method is in
the menu of DVD which runs automatically when inserted to your computer’s drive
as follows: Browse...

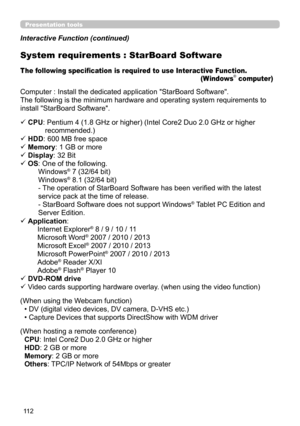

11 2
Presentation tools
Interactive Function (continued)
Computer : Install the dedicated application "StarBoard Software".
The following is the minimum hardware and operating system requirements to
install "StarBoard Software".
ü CPU:
 Pentium 4 (1.8 GHz or higher) (Intel Core2 Duo 2.0 GHz or higher
recommended.)
ü HDD: 600 MB free space
ü Memory: 1 GB or more
ü

 Display: 32 Bit
ü OS
 : One of the following.
Windows® 7 (32/64 bit)
Windows® 8.1 (32/64 bit)
- The operation of...

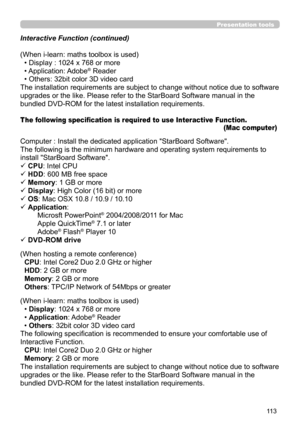

11 3
Presentation tools
Interactive Function (continued)
(When i-learn: maths toolbox is used)• Display : 1024 x 768 or more
• Application: Adobe
® Reader
• Others: 32bit color 3D video card
The installation requirements are subject to change without notice due to software
upgrades or the like. Please refer to the StarBoard Software manual in the
bundled DVD-ROM for the latest installation requirements.
The following specification is required to use Interactive Fu nction .
(Mac computer)
Computer :...

11 4
Presentation tools
Interactive Function (continued)

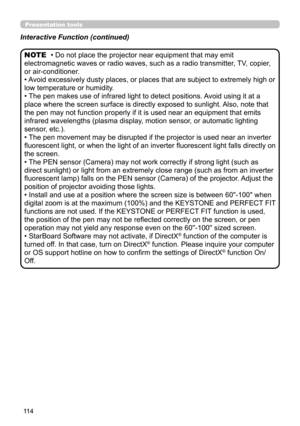

• Do not place the projector near equipment that may emit
electromagnetic waves or radio waves, such as a radio transmitter , TV, copier,
or air-conditioner.
• Avoid excessively dusty places, or places that are subject to extremely high or
low temperature or humidity.
• The pen makes use of infrared light to detect positions. Avoid using it at a
place where the screen surface is directly exposed to sunlight.  Also, note that
the pen may not...

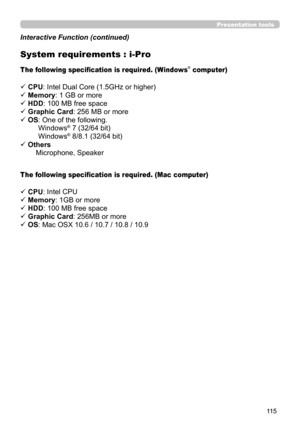

11 5
Presentation tools
Interactive Function (continued)
ü CPU:
 Intel Dual Core (1.5GHz or higher)
ü Memory: 1 GB or more
ü HDD: 100 MB free space
ü

 Graphic Card: 256 MB or more
ü OS
 : One of the following.
Windows® 7 (32/64 bit)
Windows® 8/8.1 (32/64 bit)
ü Ot
 hers
Microphone, Speaker
System requirements : i-Pro
The following specification is required. (Windows® computer)
ü CPU:  Intel CPU
ü Memory: 1GB or more
ü HDD: 100 MB free space
ü
 Graphic Card: 256MB or more
ü OS
 : Mac OSX 10.6 / 10.7...

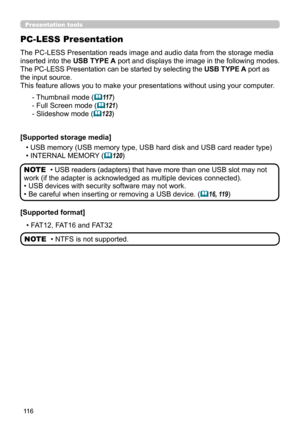

11 6
Presentation tools
The PC-LESS Presentation reads image and audio data from the storage media
inserted into the USB TYPE A port and displays the image in the following modes.
The PC-LESS Presentation can be started by selecting the USB TYPE A port as
the input source.
This feature allows you to make your presentations without using your computer .
PC-LESS Presentation
- Thumbnail mode (11 7)
- Full Screen mode (
121)
- Slideshow mode (
123)
[Supported storage media] • USB memory (USB memory...

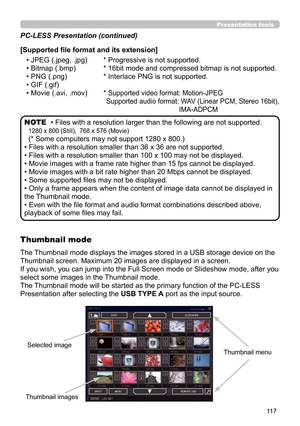

11 7
Presentation tools
• Files with a resolution larger than the following are not supported.
1280 x 800 (Still)， 768 x 576 (Movie)
(* Some computers may not support 1280 x 800.)
• Files with a resolution smaller than 36 x 36 are not supported.
• Files with a resolution smaller than 100 x 100 may not be displayed.
• Movie images with a frame rate higher than 15 fps cannot be displayed.
• Movie images with a bit rate higher than 20 Mbps cannot be displayed.
• Some supported files may not be displayed.
•...

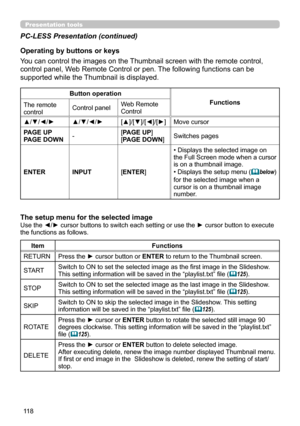

11 8
Presentation tools
PC-LESS Presentation (continued)
The setup menu for the selected image
Use the ◄/► cursor buttons to switch each setting or use the ► cursor button to execute
the functions as follows.
ItemFunctions
RETURN Press the ► cursor button or ENTER to return to the Thumbnail screen.
START Switch to ON to set the selected image as the first image in the Slideshow
.
This setting information will be saved in the “playlist.txt” file (
125).
STOP Switch to ON to set the selected image as...

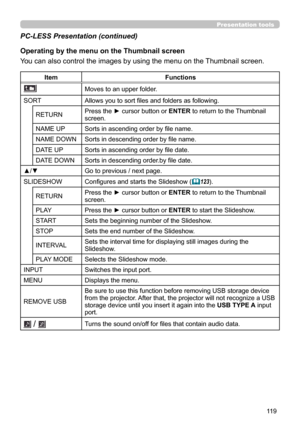

11 9
Presentation tools
You can also control the images by using the menu on the Thumbnail screen. PC-LESS Presentation (continued)
Operating by the menu on the Thumbnail screen
ItemFunctions
Moves to an upper folder.
SORT Allows you to sort files and folders as following.
RETURN Press the ► cursor button or ENTER to return to the Thumbnail
screen.
NAME UP Sorts in ascending order by file name.
NAME DOWN Sorts in descending order by file name.
DATE UP Sorts in ascending order by file date.
DATE DOWN...

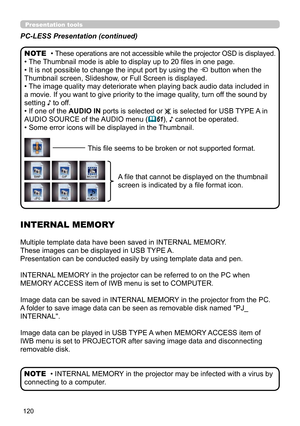

120
Presentation tools
PC-LESS Presentation (continued)
• These operations are not accessible while the projector OSD is displayed.
• The Thumbnail mode is able to display up to 20 files in one page.
• It is not possible to change the input port by using the
 button when the
Thumbnail screen, Slideshow, or Full Screen is displayed.
• The image quality may deteriorate when playing back audio data included in
a movie. If you want to give priority to the image quality, turn off the sound by
setting ♪ to...
