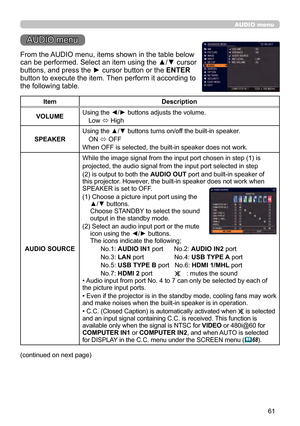

Page 61
61 AUDIO menu AUDIO menu From the AUDIO menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or the ENTER button to execute the item. Then perform it according to the following table. ItemDescription VOLUME Using the ◄/► buttons adjusts the volume. Low ó High SPEAKER Using the ▲/▼ buttons turns on/off the built-in speaker. ON ó OFF When OFF is selected, the built-in speaker does not work. AUDIO SOURCE While the image...

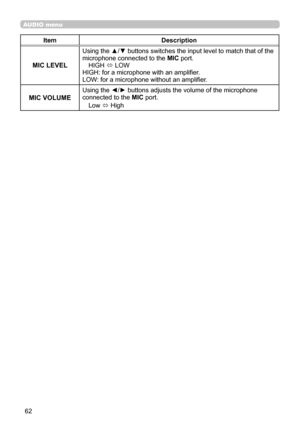

Page 62
62 AUDIO menu ItemDescription MIC LEVEL Using the ▲/▼ buttons switches the input level to match that of the microphone connected to the MIC port. HIGH ó LOW HIGH: for a microphone with an amplifier. LOW: for a microphone without an amplifier. MIC VOLUME Using the ◄/► buttons adjusts the volume of the microphone connected to the MIC port. Low ó High

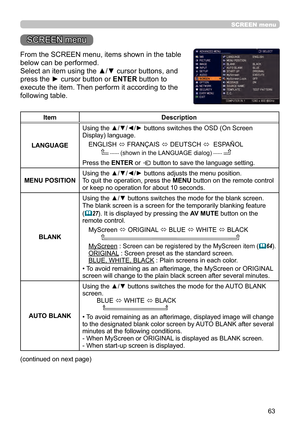

Page 63
63 SCREEN menu SCREEN menu From the SCREEN menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table. ItemDescription LANGUAGE Using the ▲/▼/◄/► buttons switches the OSD (On Screen Display) language. ENGLISH ó FRANÇAIS ó DEUTSCH ó ESPAÑOL (shown in the LANGUAGE dialog) Press the ENTER or button to save the language setting....

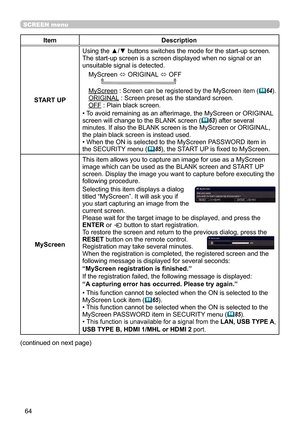

Page 64
64 SCREEN menu ItemDescription START UP Using the ▲/▼ buttons switches the mode for the start-up screen. The start-up screen is a screen displayed when no signal or an unsuitable signal is detected. MyScreen ó ORIGINAL ó OFF MyScreen : Screen can be registered by the MyScreen item ( 64 ).ORIGINAL : Screen preset as the standard screen. OFF : Plain black screen. • To avoid remaining as an afterimage, the MyScreen or ORIGINAL screen will change to the BLANK screen ( 63) after several...

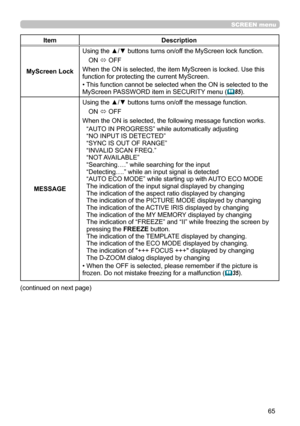

Page 65
65 SCREEN menu ItemDescription MyScreen Lock Using the ▲/▼ buttons turns on/off the MyScreen lock function. ON ó OFF When the ON is selected, the item MyScreen is locked. Use this function for protecting the current MyScreen. • This function cannot be selected when the ON is selected to the MyScreen PASSWORD item in SECURITY menu ( 85). MESSAGE Using the ▲/▼ buttons turns on/off the message function. ON ó OFF When the ON is selected, the following message function works. “AUTO IN PROGRESS” while...

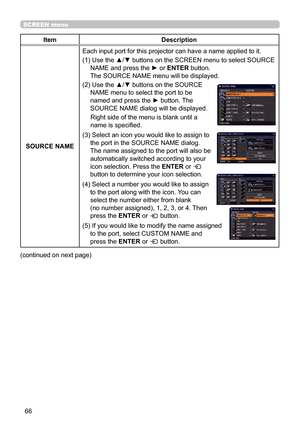

Page 66
66 SCREEN menu ItemDescription SOURCE NAME Each input port for this projector can have a name applied to it. (1) Use the ▲/▼ buttons on the SCREEN menu to select SOURCE NAME and press the ► or ENTER button. The SOURCE NAME menu will be displayed. (2) Use the ▲/▼ buttons on the SOURCE NAME menu to select the port to be named and press the ► button. The SOURCE NAME dialog will be displayed. Right side of the menu is blank until a name is specified. (3) Select an icon you would like to assign...

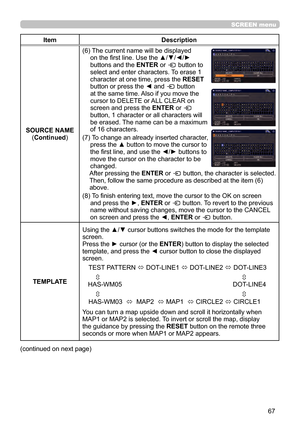

Page 67
67 SCREEN menu ItemDescription SOURCE NAME (Continued )(6) The current name will be displayed on the first line. Use the ▲/▼/◄/► buttons and the ENTER or button to select and enter characters. To erase 1 character at one time, press the RESET button or press the ◄ and button at the same time. Also if you move the cursor to DELETE or ALL CLEAR on screen and press the ENTER or button, 1 character or all characters will be erased. The name can be a maximum of 16 characters. (7) To...

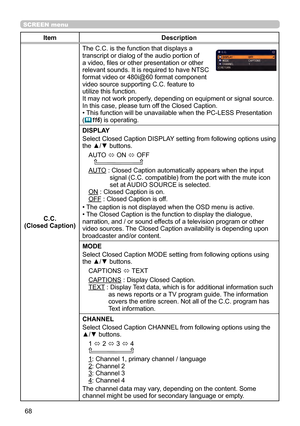

Page 68
68 SCREEN menu ItemDescription C.C. (Closed Caption) The C.C. is the function that displays a transcript or dialog of the audio portion of a video, files or other presentation or other relevant sounds. It is required to have NTSC format video or 480i@60 format component video source supporting C.C. feature to utilize this function. It may not work properly, depending on equipment or signal source. In this case, please turn off the Closed Caption. • This function will be unavailable when the...

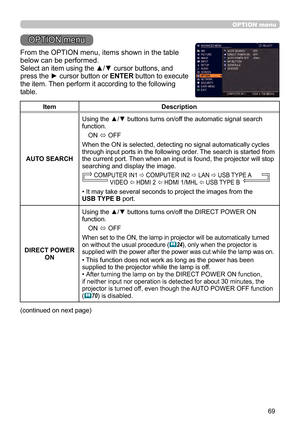

Page 69
69 OPTION menu OPTION menu From the OPTION menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table. ItemDescription AUTO SEARCH Using the ▲/▼ buttons turns on/off the automatic signal search function. ON ó OFF When the ON is selected, detecting no signal automatically cycles through input ports in the following order. The search is started...

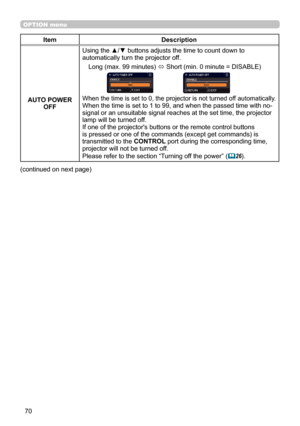

Page 70
70 OPTION menu ItemDescription AUTO POWER OFF Using the ▲/▼ buttons adjusts the time to count down to automatically turn the projector off. Long (max. 99 minutes) ó Short (min. 0 minute = DISABLE) When the time is set to 0, the projector is not turned off automatically.When the time is set to 1 to 99, and when the passed time with no- signal or an unsuitable signal reaches at the set time, the projector lamp will be turned off. If one of the projector's buttons or the remote control buttons is...
