Epson Projector Emp 7850 User Manual

20

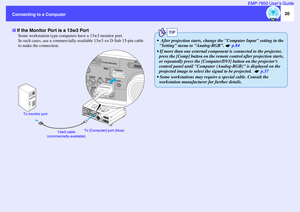

Connecting to a ComputerEMP-7850 User’s Guide
Some workstation-type computers have a 13w3 monitor port.
In such cases, use a commercially-available 13w3 ⇔ D-Sub 15-pin cable
to make the connection.If the Monitor Port is a 13w3 Port
To [Computer] port (blue) To monitor port
13w3 cable
(commercially-available)
TIP
  After projection starts, change the Computer Input setting in the
Setting menu to Analog-RGB.   p.84
 If more than one external component is connected to the projector,
press the...

21

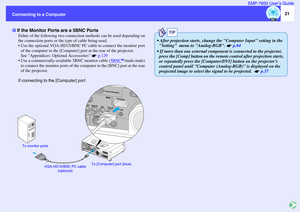

Connecting to a ComputerEMP-7850 User’s Guide
Either of the following two connection methods can be used depending on
the connection ports or the type of cable being used.
 Use the optional VGA-HD15/BNC PC cable to connect the monitor port
of the computer to the [Computer] port at the rear of the projector.
See Appendices: Optional Accessories   p.129
 Use a commercially-available 5BNC monitor cable (5BNC
/male-male)
to connect the monitor ports of the computer to the [BNC] port at the rear
of...

22

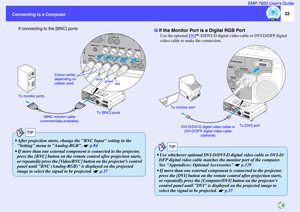

Connecting to a ComputerEMP-7850 User’s Guide
If connecting to the [BNC] ports
Use the optional DVI
-D/DVI-D digital video cable or DVI-D/DFP digital
video cable to make the connection.
5BNC monitor cable
(commercially-available) To monitor ports
To [BNC] ports
red
blue
green Colour varies
depending on
cables used
TIP
• After projection starts, change the BNC Input setting in the
Setting menu to Analog-RGB.   p.84
 If more than one external component is connected to the projector,
press the...

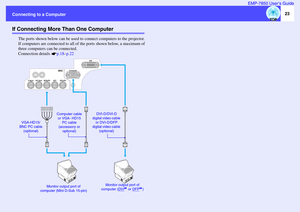

23
Connecting to a ComputerEMP-7850 User’s Guide
If Connecting More Than One Computer
The ports shown below can be used to connect computers to the projector.
If computers are connected to all of the ports shown below, a maximum of
three computers can be connected.
Connection details p.18–p.22
Monitor output port of
computer (DVI
 or DFP
)
Monitor output port of
computer (Mini D-Sub 15-pin)DVI-D/DVI-D
digital video cable
or DVI-D/DFP
digital video cable
(optional) VGA-HD15/
BNC PC cable...

24

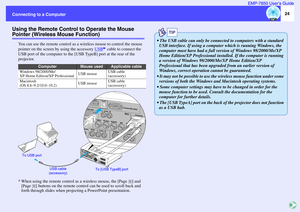

Connecting to a ComputerEMP-7850 User’s Guide
Using the Remote Control to Operate the Mouse Pointer (Wireless Mouse Function)
You can use the remote control as a wireless mouse to control the mouse
pointer on the screen by using the accessory USB
 cable to connect the
USB port of the computer to the [USB TypeB] port at the rear of the
projector.
* When using the remote control as a wireless mouse, the [Page  ] and
[Page  ] buttons on the remote control can be used to scroll back and
forth through...

25

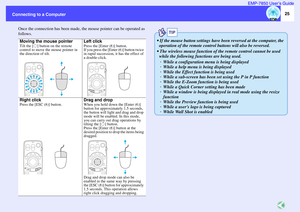

Connecting to a ComputerEMP-7850 User’s Guide
Once the connection has been made, the mouse pointer can be operated as
follows.Moving the mouse pointerTilt the [ ] button on the remote
control to move the mouse pointer in
the direction of tilt.
Left clickPress the [Enter ( )] button.
If you press the [Enter ( )] button twice
in rapid succession, it has the effect of
a double-click.
Right clickPress the [ESC ( )] button.
Drag and dropWhen you hold down the [Enter ( )]
button for approximately 1.5...

26

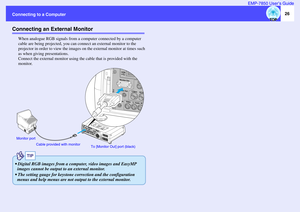

Connecting to a ComputerEMP-7850 User’s Guide
Connecting an External Monitor
When analogue RGB signals from a computer connected by a computer
cable are being projected, you can connect an external monitor to the
projector in order to view the images on the external monitor at times such
as when giving presentations.
Connect the external monitor using the cable that is provided with the
monitor.
Cable provided with monitor
To [Monitor Out] port (black) Monitor port
TIP
 Digital RGB images from a...

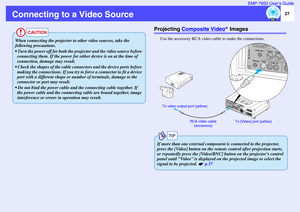

27 EMP-7850 User’s Guide
Connecting to a Video Source
Projecting Composite Video
 Images
Use the accessory RCA video cable to make the connections.
CAUTION
When connecting the projector to other video sources, take the
following precautions.
 Turn the power off for both the projector and the video source before
connecting them. If the power for either device is on at the time of
connection, damage may result.
 Check the shapes of the cable connectors and the device ports before
making the...

28

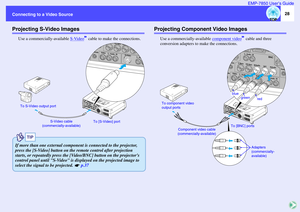

Connecting to a Video SourceEMP-7850 User’s Guide
Projecting S-Video Images
Use a commercially-available S-Video
 cable to make the connections.
Projecting Component Video Images
Use a commercially-available component video
 cable and three
conversion adapters to make the connections.
S-Video cable
(commercially-available)To [S-Video] port To S-Video output port
TIP
If more than one external component is connected to the projector,
press the [S-Video] button on the remote control after projection...

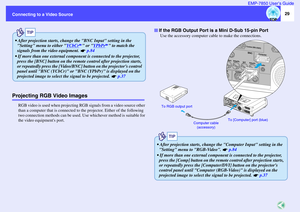

29
Connecting to a Video SourceEMP-7850 User’s Guide
Projecting RGB Video Images
RGB video is used when projecting RGB signals from a video source other
than a computer that is connected to the projector. Either of the following
two connection methods can be used. Use whichever method is suitable for
the video equipments port.Use the accessory computer cable to make the connections.
TIP
 After projection starts, change the BNC Input setting in the
Setting menu to either YCbCr
 or YPbPr
 to match the...
