50

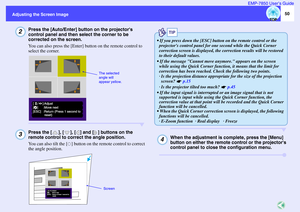

Adjusting the Screen ImageEMP-7850 User’s Guide
Press the [Auto/Enter] button on the projectors
control panel and then select the corner to be
corrected on the screen.
You can also press the [Enter] button on the remote control to
select the corner.Press the [ ], [ ], [ ] and [ ] buttons on the
remote control to correct the angle position.
You can also tilt the [ ] button on the remote control to correct
the angle position.
When the adjustment is complete, press the [Menu]
button on either the...

51 EMP-7850 User’s Guide

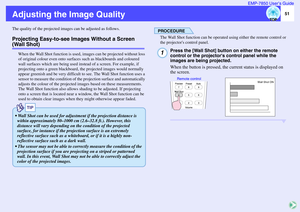

Adjusting the Image QualityThe quality of the projected images can be adjusted as follows.Projecting Easy-to-see Images Without a Screen (Wall Shot)
When the Wall Shot function is used, images can be projected without loss
of original colour even onto surfaces such as blackboards and coloured
wall surfaces which are being used instead of a screen. For example, if
projecting onto a green blackboard, the projected images would normally
appear greenish and be very difficult to...

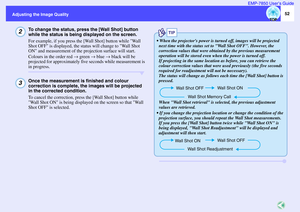

52
Adjusting the Image QualityEMP-7850 User’s Guide
To change the status, press the [Wall Shot] button
while the status is being displayed on the screen.
For example, if you press the [Wall Shot] button while Wall
Shot OFF is displayed, the status will change to Wall Shot
ON and measurement of the projection surface will start.
Colours in the order red → green → blue → black will be
projected for approximately five seconds while measurement is
in progress.Once the measurement is finished and colour...

53
Adjusting the Image QualityEMP-7850 User’s Guide

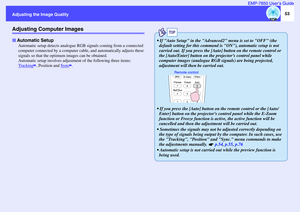

Adjusting Computer Images
Automatic setup detects analogue RGB signals coming from a connected
computer connected by a computer cable, and automatically adjusts these
signals so that the optimum images can be obtained.
Automatic setup involves adjustment of the following three items:
Tracking
, Position and Sync
.
Automatic Setup
TIP
 If Auto Setup in the Advanced2 menu is set to OFF (the
default setting for this command is ON), automatic setup is...

54

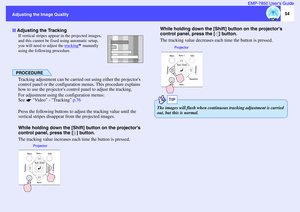

Adjusting the Image QualityEMP-7850 User’s Guide
l
If vertical stripes appear in the projected images,
and this cannot be fixed using automatic setup,
you will need to adjust the tracking
 manually
using the following procedure.
PROCEDURETracking adjustment can be carried out using either the projectors
control panel or the configuration menus. This procedure explains
how to use the projectors control panel to adjust the tracking.
For adjustment using the configuration menus:
See   Video -...

55

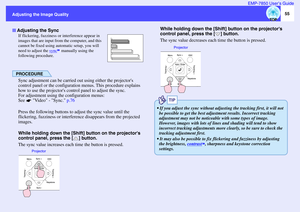

Adjusting the Image QualityEMP-7850 User’s Guide
If flickering, fuzziness or interference appear in
images that are input from the computer, and this
cannot be fixed using automatic setup, you will
need to adjust the sync
 manually using the
following procedure.
PROCEDURESync adjustment can be carried out using either the projectors
control panel or the configuration menus. This procedure explains
how to use the projectors control panel to adjust the sync.
For adjustment using the configuration...

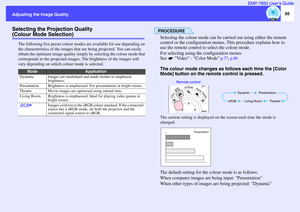

56
Adjusting the Image QualityEMP-7850 User’s Guide
Selecting the Projection Quality (Colour Mode Selection)
The following five preset colour modes are available for use depending on
the characteristics of the images that are being projected. You can easily
obtain the optimum image quality simply by selecting the colour mode that
corresponds to the projected images. The brightness of the images will
vary depending on which colour mode is selected.
PROCEDURESelecting the colour mode can be carried out...

57 EMP-7850 User’s Guide

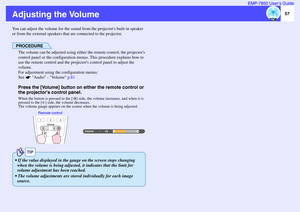

Adjusting the VolumeYou can adjust the volume for the sound from the projectors built-in speaker
or from the external speakers that are connected to the projector.
PROCEDUREThe volume can be adjusted using either the remote control, the projectors
control panel or the configuration menus. This procedure explains how to
use the remote control and the projectors control panel to adjust the
volume.
For adjustment using the configuration menus:
See   Audio - Volume p.81Press the...

58 EMP-7850 User’s Guide

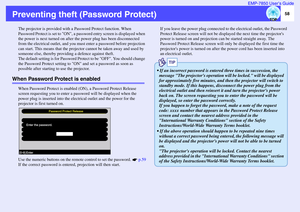

Preventing theft (Password Protect)
The projector is provided with a Password Protect function. When
Password Protect is set to ON, a password entry screen is displayed when
the power is next turned on after the power plug has been disconnected
from the electrical outlet, and you must enter a password before projection
can start. This means that the projector cannot be taken away and used by
someone else, thereby providing a defence against theft.
The default setting is for...

59

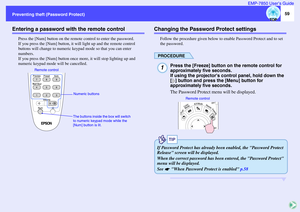

Preventing theft (Password Protect)EMP-7850 User’s Guide
Entering a password with the remote control
Press the [Num] button on the remote control to enter the password.
If you press the [Num] button, it will light up and the remote control
buttons will change to numeric keypad mode so that you can enter
numbers.
If you press the [Num] button once more, it will stop lighting up and
numeric keypad mode will be cancelled.
Changing the Password Protect settings
Follow the procedure given below to...
