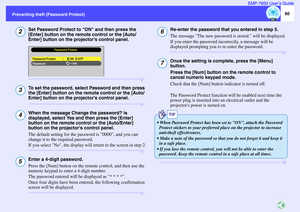

60
Preventing theft (Password Protect)EMP-7850 User’s Guide
Set Password Protect to ON and then press the
[Enter] button on the remote control or the [Auto/
Enter] button on the projectors control panel.To set the password, select Password and then press
the [Enter] button on the remote control or the [Auto/
Enter] button on the projectors control panel.When the message Change the password? is
displayed, select Yes and then press the [Enter]
button on the remote control or the [Auto/Enter]
button on...

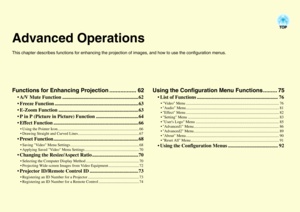

Advanced OperationsThis chapter describes functions for enhancing the projection of images, and how to use the configuration menus.Functions for Enhancing Projection ................. 62
 A/V Mute Function ............................................................. 62
 Freeze Function ................................................................... 63
 E-Zoom Function ................................................................ 63
 P in P (Picture in Picture) Function...

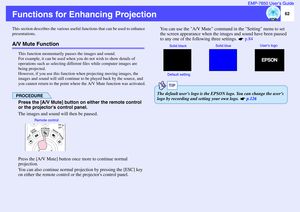

62 EMP-7850 User’s Guide
Functions for Enhancing ProjectionThis section describes the various useful functions that can be used to enhance
presentations.A/V Mute Function
This function momentarily pauses the images and sound.
For example, it can be used when you do not wish to show details of
operations such as selecting different files while computer images are
being projected.
However, if you use this function when projecting moving images, the
images and sound will still continue to be played back...

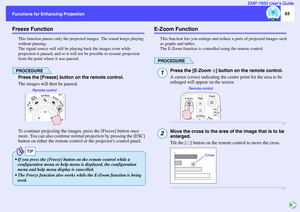

63
Functions for Enhancing Projection Functions for Enhancing ProjectionEMP-7850 User’s Guide
Freeze Function
This function pauses only the projected images. The sound keeps playing
without pausing.
The signal source will still be playing back the images even while
projection is paused, and so it will not be possible to resume projection
from the point where it was paused.PROCEDUREPress the [Freeze] button on the remote control.
The images will then be paused.
To continue projecting the images, press...

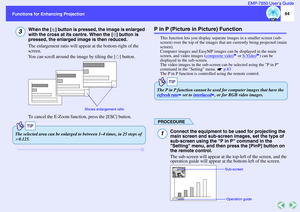

64
Functions for Enhancing Projection Functions for Enhancing ProjectionEMP-7850 User’s Guide
When the [ ] button is pressed, the image is enlarged
with the cross at its centre. When the [ ] button is
pressed, the enlarged image is then reduced.
The enlargement ratio will appear at the bottom-right of the
screen.
You can scroll around the image by tilting the [ ] button.
To cancel the E-Zoom function, press the [ESC] button.
P in P (Picture in Picture) Function
This function lets you display separate...

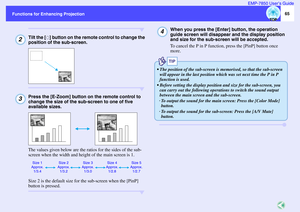

65
Functions for Enhancing Projection Functions for Enhancing ProjectionEMP-7850 User’s Guide
Tilt the [ ] button on the remote control to change the
position of the sub-screen.Press the [E-Zoom] button on the remote control to
change the size of the sub-screen to one of five
available sizes.
The values given below are the ratios for the sides of the sub-
screen when the width and height of the main screen is 1.
Size 2 is the default size for the sub-screen when the [PinP]
button is pressed.
When you...

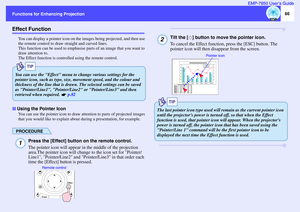

66
Functions for Enhancing Projection Functions for Enhancing ProjectionEMP-7850 User’s Guide
Effect Function
You can display a pointer icon on the images being projected, and then use
the remote control to draw straight and curved lines.
This function can be used to emphasise parts of an image that you want to
draw attention to.
The Effect function is controlled using the remote control.
You can use the pointer icon to draw attention to parts of projected images
that you would like to explain about...

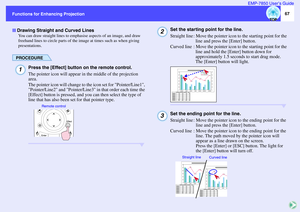

67
Functions for Enhancing Projection Functions for Enhancing ProjectionEMP-7850 User’s Guide
You can draw straight lines to emphasise aspects of an image, and draw
freehand lines to circle parts of the image at times such as when giving
presentations.PROCEDURE
Press the [Effect] button on the remote control.
The pointer icon will appear in the middle of the projection
area.
The pointer icon will change to the icon set for Pointer/Line1,
Pointer/Line2 and Pointer/Line3 in that order each time the...

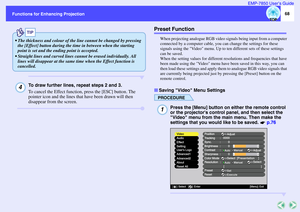

68
Functions for Enhancing Projection Functions for Enhancing ProjectionEMP-7850 User’s Guide
To draw further lines, repeat steps 2 and 3.
To cancel the Effect function, press the [ESC] button. The
pointer icon and the lines that have been drawn will then
disappear from the screen.
Preset Function
When projecting analogue RGB video signals being input from a computer
connected by a computer cable, you can change the settings for these
signals using the Video menu. Up to ten different sets of these...

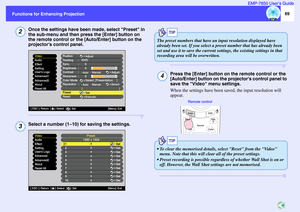

69
Functions for Enhancing Projection Functions for Enhancing ProjectionEMP-7850 User’s Guide
Once the settings have been made, select Preset in
the sub-menu and then press the [Enter] button on
the remote control or the [Auto/Enter] button on the
projectors control panel.Select a number (1–10) for saving the settings.
Press the [Enter] button on the remote control or the
[Auto/Enter] button on the projectors control panel to
save the Video menu settings.
When the settings have been saved, the input...
