Appendix

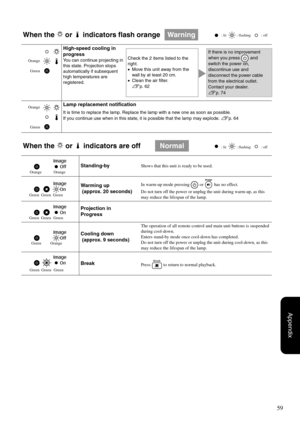

When the   or   indicators flash orangeWarning : lit    : flashing    : off
High-speed cooling in
progress
You can continue projecting in
this state. Projection stops
automatically if subsequent
high temperatures are
registered.Check the 2 items listed to the
right.
•Move this unit away from the
wall by at least 20 cm.
•Clean the air filter.
sp. 62
If there is no improvement
when you press   and
switch the power on,
discontinue use and
disconnect the power cable
from the...

60

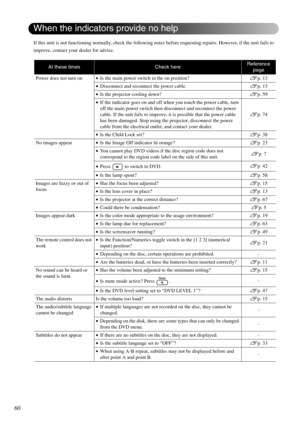

If this unit is not functioning normally, check the following notes before requesting repairs. However, if the unit fails to
improve, contact your dealer for advice.
At these timesCheck hereReference
page
Power does not turn on•Is the main power switch in the on position?sp. 13
•Disconnect and reconnect the power cable.sp. 13
•Is the projector cooling down?sp. 59
•If the indicator goes on and off when you touch the power cable, turn
off the main power switch then disconnect and reconnect the power...

61
Appendix

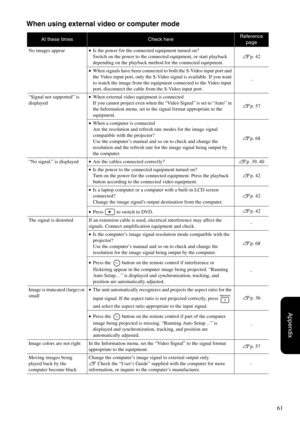

When using external video or computer mode
At these timesCheck hereReference
page
No images appear•Is the power for the connected equipment turned on?
Switch on the power to the connected equipment, or start playback
depending on the playback method for the connected equipment.sp. 42
•When signals have been connected to both the S-Video input port and
the Video input port, only the S-Video signal is available. If you want
to watch the image from the equipment connected to the Video input...

62
This section describes maintenance tasks such as cleaning the projector and replacing consumable parts.

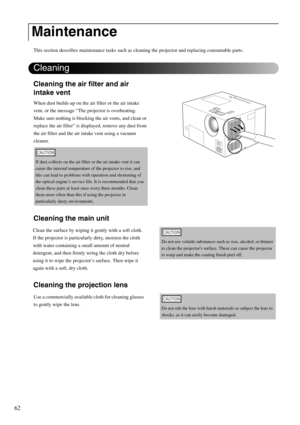

Cleaning the air filter and air
intake vent
When dust builds up on the air filter or the air intake
vent, or the message “The projector is overheating.
Make sure nothing is blocking the air vents, and clean or
replace the air filter” is displayed, remove any dust from
the air filter and the air intake vent using a vacuum
cleaner.
Cleaning the main unit
Cleaning the projection lens
Maintenance...

63
Appendix

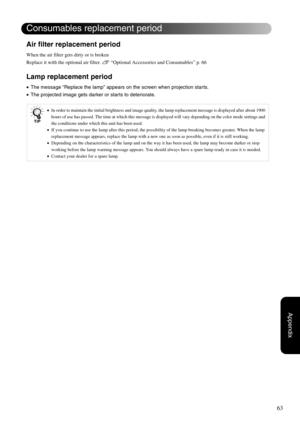

Air filter replacement period
When the air filter gets dirty or is broken
Replace it with the optional air filter. s “Optional Accessories and Consumables” p. 66
Lamp replacement period
•The message “Replace the lamp” appears on the screen when projection starts.
•The projected image gets darker or starts to deteriorate.
•In order to maintain the initial brightness and image quality, the lamp replacement message is displayed after about 1900
hours of use has passed. The time at which this...

64

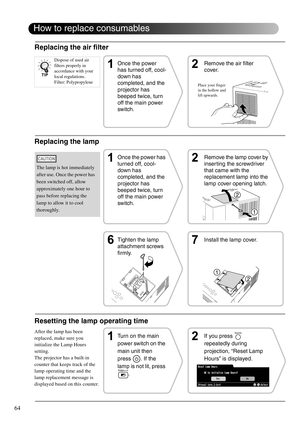

How to replace consumables
Replacing the air filter
Replacing the lamp
The lamp is hot immediately
after use. Once the power has
been switched off, allow
approximately one hour to
pass before replacing the
lamp to allow it to cool
thoroughly.
Once the power
has turned off, cool-
down has
completed, and the
projector has
beeped twice, turn
off the main power
switch.Remove the air filter
cover.
Once the power has
turned off, cool-
down has
completed, and the
projector has
beeped twice,...

65
Appendix

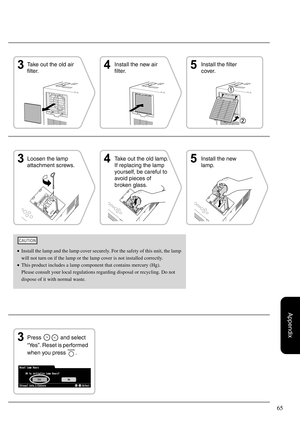

Take out the old air
filter.Install the new air
filter.Install the filter
cover.
Loosen the lamp
attachment screws.Take out the old lamp.
If replacing the lamp
yourself, be careful to
avoid pieces of
broken glass.Install the new
lamp.
•Install the lamp and the lamp cover securely. For the safety of this unit, the lamp
will not turn on if the lamp or the lamp cover is not installed correctly.
•This product includes a lamp component that contains mercury (Hg).
Please consult your local...

66
The following optional accessories and consumables are available for purchase if required. This list of optional
accessories is current as of August, 2006. Details of accessories are subject to change without notice and availability may
vary depending on the country or area of purchase.
Consumables
Optional accessories
Optional Accessories and
Consumables
Lamp unit ELPLP33
(Lamp x1)
Use as a replacement for used lamps.
Air filter set ELPAF09
(Air filter x1)
Use as a replacement for used air...

67
Appendix
Refer to the following table and place the unit in a position which allows the best possible projection for the size of the
screen.
Units: cm (in.) Units: cm (fit.)
Units: cm (in.) Units: cm (fit.)

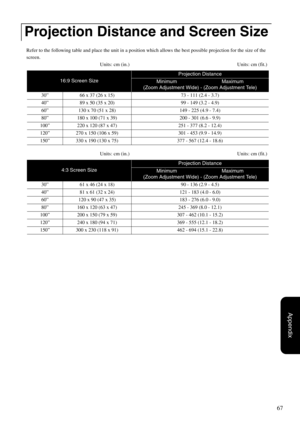

Projection Distance and Screen Size
16:9 Screen Size
Projection Distance
Minimum                                Maximum
(Zoom Adjustment Wide) - (Zoom Adjustment Tele)
30” 66 x 37 (26 x 15) 73 - 111 (2.4 - 3.7)
40” 89 x 50 (35 x 20) 99 - 149 (3.2 - 4.9)
60” 130 x 70 (51 x 28) 149 - 225 (4.9 -...

68
Composite video/S-videoUnits: Dots
* Letterbox signal
Component videoUnits: Dots
* Letterbox signal
Computer imageUnits: Dots
* You cannot connect to models where the VGA output port is not installed.
•You can project signals that conform to the VESA standard.
•Even when signals other than those mentioned above are input, it is likely that the image can be projected.
However, not all functions may be supported.

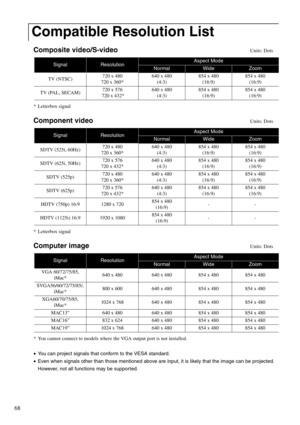

Compatible Resolution List
SignalResolutionAspect Mode
NormalWideZoom
TV (NTSC)720 x 480...
