HP Vm200 User Manual

Creating WDS links
Key concepts
8-3
Simultaneous access point and WDS support
The V-M200 can be configured to simultaneously support wireless communities and one or
more WDS links. Although this offers flexibility, it does have the following limitations:
The total available bandwidth on the radio is shared between all WDS links and wireless
users. This can result in reduced throughput if lots of traffic is being sent by both wireless
users and the WDS links. You can use the QoS feature to prioritize...

Creating WDS links
Key concepts
8-4
Traffic on a WDS link is assigned to a queue based on the selected priority mechanism. Traffic
delivery is based on strict priority (per the WMM standard). Therefore, if excessive traffic is
present on queues 1 or 2, it will reduce the flow of traffic on queues 3 and 4.
Regardless of the priority mechanism that is selected, traffic that cannot be classified by a
priority mechanism is assigned to queue 3.
NoteWhen traffic is forwarded onto a WDS link from a wireless...

Creating WDS links
Key concepts
8-5
Diffserv (Differentiated Services)
This mechanism classifies traffic based on the value of the Differentiated Services (DS)
codepoint field in IPv4 and IPv6 packet headers (as defined in RFC2474). The codepoint is
composed of the six most significant bits of the DS field.
Spanning-tree protocol
The Spanning-Tree Protocol (STP) can be used to prevent undesirable loops from occurring
in the network that may result in decreased throughput. To enable STP for wireless...

Creating WDS links
WDS configuration settings
8-6
WDS configuration settings

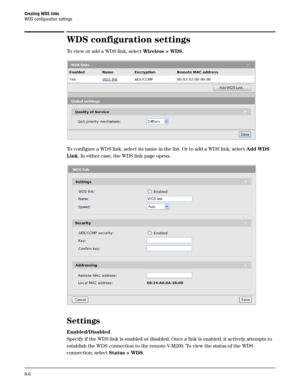

To view or add a WDS link, select Wireless > WDS.
To configure a WDS link, select its name in the list. Or to add a WDS link, select Add WDS
Link. In either case, the WDS link page opens.
Settings
Enabled/Disabled
Specify if the WDS link is enabled or disabled. Once a link is enabled, it actively attempts to
establish the WDS connection to the remote V-M200. To view the status of the WDS
connection, select Status > WDS.

Creating WDS links
Sample WDS deployment
8-7
Name
Name of the WDS link.
Speed
Sets the speed the link will operate at. For load balancing you may want to limit the speed of
a link when connecting to multiple destinations.
Select the Auto option to have the V-M200 automatically choose the speed that provides the
best throughput (least number of errors).
Security
AES/CCMP security
Enables AES with CCMP encryption to secure traffic on the link. The V-M200 uses the key
you specify in the Key field to...

Creating WDS links
Sample WDS deployment
8-8
A.Obtain the MAC address of V-M200 #2
1.Connect to the management tool on V-M200 #2. Open the home page and write down its
MAC address.
B.Setup the WDS link on V-M200 #1
2.Open the management tool on V-M200 #1.

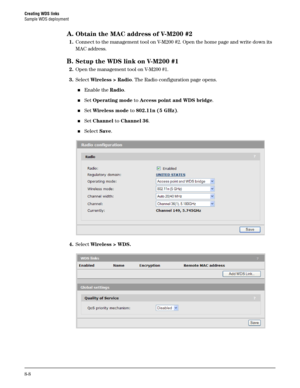

3.Select Wireless > Radio. The Radio configuration page opens.
Enable the Radio.
Set Operating mode to Access point and WDS bridge.
Set Wireless mode to 802.11n (5 GHz).
Set Channel to Channel 36.
Select Save.
4.Select Wireless > WDS.


Creating WDS links
Sample WDS deployment
8-9

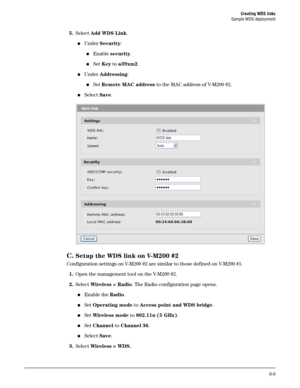

5.Select Add WDS Link.
Under Security:
Enable security.
Set Key to a39xm2.
Under Addressing:
Set Remote MAC address to the MAC address of V-M200 #2.
Select Save.

C.Setup the WDS link on V-M200 #2
Configuration settings on V-M200 #2 are similar to those defined on V-M200 #1.
1.Open the management tool on the V-M200 #2.
2.Select Wireless > Radio. The Radio configuration page opens.
Enable the Radio.
Set Operating mode to Access point and WDS bridge....

Creating WDS links
Sample WDS deployment
8-10
4.Select Add WDS Link.
Under Security:
Enable AES/CCMP security.
Set Key to a39xm2.
Under Addressing:
Set Remote MAC address to the MAC address of V-M200 #2.
Select Save.
D.Test the link and make performance adjustments
The WDS link should now be active.
1.Select To o l s  >  P i n g on V-M200 #1 and ping the address of V-M200 #2 (192.168.5.20). If the
ping succeeds, it means that the WDS link is working.

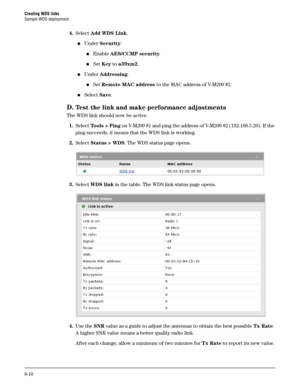

2.Select Status > WDS. The WDS status page...

Chapter 9: Maintenance
9
Maintenance
Contents
Config file management............................................................................................... 9-2
Backup configuration............................................................................................ 9-2
Restore configuration ........................................................................................... 9-2
Reset configuration...

Maintenance
Config file management
9-2

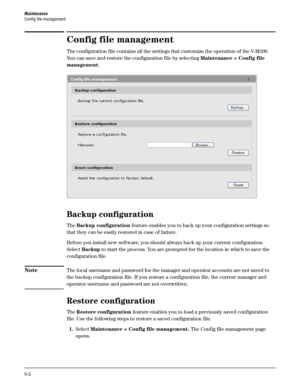

Config file management
The configuration file contains all the settings that customize the operation of the V-M200.
You can save and restore the configuration file by selecting Maintenance > Config file
management.
Backup configuration
The Backup configuration feature enables you to back up your configuration settings so
that they can be easily restored in case of failure.
Before you install new software, you should always back up your current configuration....
