Wireless configuration
Radio configuration
5-11
Operating mode
Select the operating mode. Available options are:
Access point and WDS bridge: Standard operating mode provides support for all
wireless functions.
Access point only: Only provides AP functionality, WDS links cannot be created.
WDS bridge: Only provides WDS functionality. Wireless client stations cannot connect.
Monitor: Puts the radio in promiscuous mode (no transmissions). Both AP and WDS
bridge functionality are disabled. Use this...

Wireless configuration
Radio configuration
5-12
NoteIn 802.11n (2.4 GHz) and 802.11n (5 GHz) modes, the V-M200 does not permit non-
802.11n clients to associate. Also in this mode, the V-M200 does not use protection
mechanisms (RTS/CTS or CTS-to-self) to enable legacy APs to operate on the same
frequency. This can potentially cause problems with legacy (802.11a/b/g) APs operating on
the same channel, but provides the best throughput for the V-M200 and its 802.11n clients.
In 802.11n/a, 802.11n/g, and...

Wireless configuration
Detecting rogue APs
5-13
When Wireless mode is 802.11n (5 GHz) or 802.11n/a and Channel width is Auto 20/40
MHz, the channel numbers in the Channel list include either a “(1)” or “(-1)” to their right.
A “(1)” indicates that the 40 MHz channel is formed from the indicated channel plus the next
channel. A “-1” indicates that the 40 MHz channel is formed from the indicated channel plus
the previous channel.
With a 40 MHz Channel width in the 5 GHz band, channel selection and...

Wireless configuration
Detecting rogue APs
5-14
Automatic channel: When the radio has its Channel set to Automatic, scanning is
performed for all the channels in the currently selected Wireless mode when the V-M200
starts up.
Background scanning: For any other radio configuration, scanning is controlled by the
settings on the Rogue AP detection page. To enable scanning, select the Repeat scan
checkbox and set the Scan interval. Scanning is performed for all the channels in the
currently selected...

Wireless configuration
Detecting rogue APs
5-15
Scanning for rogue APs

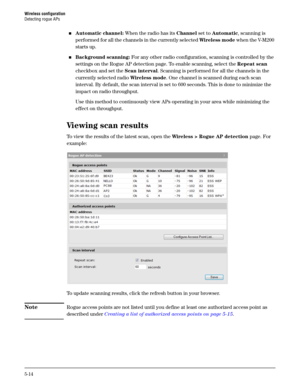

When the V-M200 discovers an AP during a scan it compares the MAC address of the AP
against the list of authorized APs (which you must define). If the scanned AP does not appear
in the list of authorized APs, it is displayed in the Rogue access points table.
If the V-M200 is in background scanning mode, it will scan all channels in the currently
selected radio operating mode approximately once every two hours (assuming the default...

Wireless configuration
Viewing wireless information
5-16

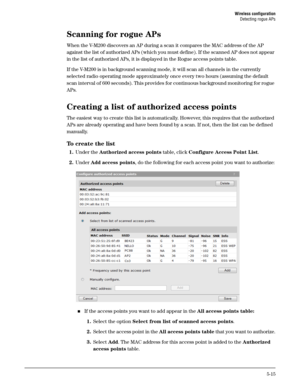

To add access points that do not appear in the All access points table:
1.Select the option Manually configure.
2.Specify the MAC address of the access point that you want to authorize. The
MAC address must be in the following format: 12 hexadecimal numbers
separated by colons, with the values “a” to “f” in lowercase. For example:
00:03:520:a0:f01.
3.Select Add. The MAC address is added to the Authorized access points table.
3.Select Save to...

Wireless configuration
Viewing wireless information
5-17

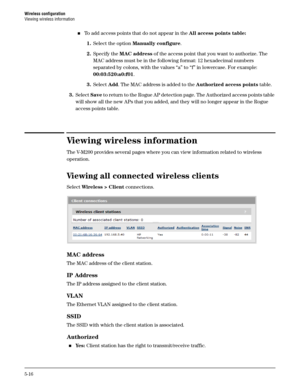

No: Client station can only transmit/receive 802.1X packets.
Filtered: Client traffic is blocked by the MAC filtering feature.
Authentication
Indicates how the client station was authenticated.
Association time
Indicates how long the client station has been associated with the V-M200.
Signal
Indicates the strength of the radio signal received from the client station. Signal strength is
expressed in decibel milliwatt (dBm). The higher the number...

Wireless configuration
Viewing wireless information
5-18

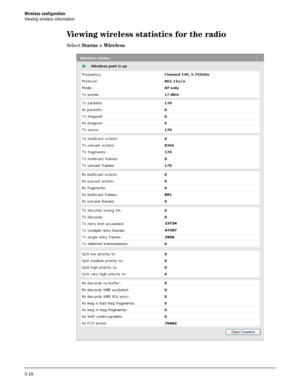

Viewing wireless statistics for the radio
Select Status > Wireless.

Wireless configuration
Viewing wireless information
5-19
Wireless port
UP: Port is operating normally
DOWN: Port is not operating
Frequency
The current operating frequency.
Protocol
Identifies the wireless protocol used by the V-M200 to communicate with wireless users.
Mode
Current mode of operation.
Tx power
Current transmission power.
Tx packets
The total number of packets transmitted.
Rx packets
The total number of packets received.
Tx dropped
The number of packets that could not be transmitted....

Wireless configuration
Viewing wireless information
5-20
Tx multicast frames
The number of MSDUs, of which the destination address is a multicast MAC address
(including broadcast MAC address), transmitted successfully.
Tx unicast frames
The number of MSDUs, of which the destination address is a unicast MAC address,
transmitted successfully. This implies having received an acknowledgment to all associated
MPDUs.
Rx multicast octets
The number of octets received successfully as part of multicast...
