Wireless configuration
Viewing wireless information
5-21
Tx single retry frames
The number of MSDUs successfully transmitted after one (and only one) retransmission (on
the total of all associated fragments). May be due to collisions, noise, or interference. Large
numbers of single retries can indicate that too many computers are using the wireless
network or that something is interfering with transmissions.
Tx deferred transmissions
The number of MSDUs for which (one of) the (fragment) transmission...

Wireless configuration
Viewing wireless information
5-22
Rx FCS errors
The number of MPDUs, considered to be destined for this station (Address matches),
received with an FCS error. Note that this does not include data received with an incorrect
CRC in the PLCP header. These are not considered to be MPDUs.
Clear counters
Click this button to reset all counters to zero.
Viewing throughput for wireless clients

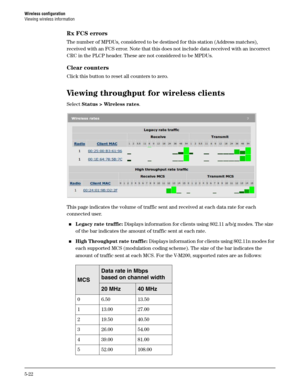

Select Status > Wireless rates.
This page indicates the volume of traffic sent and received at...

Wireless configuration
Viewing wireless information
5-23
6 58.50 121.50
7 65.00 135.00
8 13.00 27.00
9 26.00 54.00
10 39.00 81.00
11 52.00 108.00
12 78.00 162.00
13 104.00 216.00
14 117.00 243.00
15 130.00 270.00
MCS
Data rate in Mbps
based on channel width
20 MHz40 MHz

Wireless configuration
Viewing wireless information
5-24

Chapter 6: Configuring network settings and VLANs
6
Configuring network settings and VLANs
Contents
Assigning an IP address to the V-M200 ...................................................................... 6-2
Automatically assigning an IP address (default method)................................. 6-2
Manually assigning an IP address........................................................................ 6-2
Ethernet port link settings...

Configuring network settings and VLANs
Assigning an IP address to the V-M200
6-2
Assigning an IP address to the V-M200
There are several ways to assign an IP address to the Ethernet port on the V-M200.
Automatically assigning an IP address (default
method)
By default the V-M200 operates as a DHCP client. This means that if the network has a DHCP
server, the V-M200 will automatically receive a new IP address in place of its default IP
address (192.168.1.1) upon connecting to the network.
The DHCP...

Configuring network settings and VLANs
Assigning an IP address to the V-M200
6-3

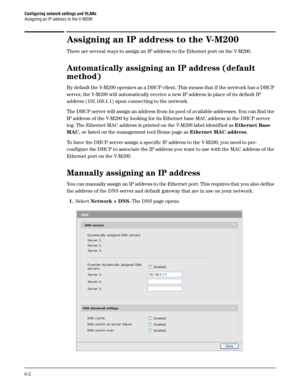

2.Select the checkbox next to Override dynamically assigned DNS servers.
3.Define an IP address for at least Server 1. Define values for Server 2 and Server 3 if
available on your network.
4.Select the checkbox next to DNS cache.
5.Select Save.
6.Select Network > IP. The IP configuration page opens.

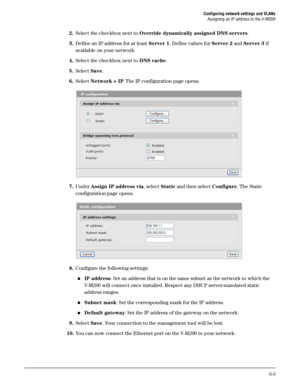

7.Under Assign IP address via, select Static and then select Configure. The Static
configuration page opens.
8.Configure the...

Configuring network settings and VLANs
Ethernet port link settings
6-4
Ethernet port link settings

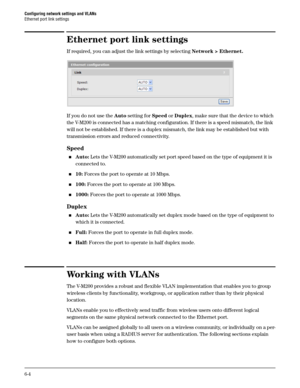

If required, you can adjust the link settings by selecting Network > Ethernet.
If you do not use the Auto setting for Speed or Duplex, make sure that the device to which
the V-M200 is connected has a matching configuration. If there is a speed mismatch, the link
will not be established. If there is a duplex mismatch, the link may be established but with
transmission errors and reduced connectivity.
Speed...

Configuring network settings and VLANs
Working with VLANs
6-5
VLAN assignment via wireless community
The easiest way to assign user traffic to a VLAN is to configure the Ethernet VLAN setting in
a wireless community (See Ethernet VLAN on page 4-7). This puts all the traffic from users
that connect to the wireless community onto the specified VLAN via the V-M200 Ethernet
port.

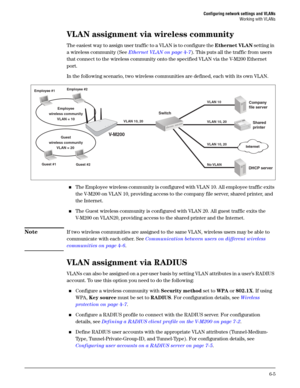

In the following scenario, two wireless communities are defined, each with its own VLAN.
The Employee wireless community is...

Configuring network settings and VLANs
Working with VLANs
6-6
NoteWhen a VLAN is defined in a user’s RADIUS account it always overrides the Ethernet VLAN
defined for a wireless community. This enables you to define an Ethernet VLAN setting for a
community and then override it on a per-user basis as required.
Example

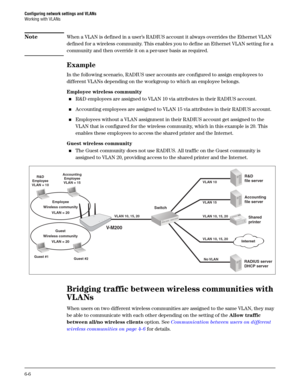

In the following scenario, RADIUS user accounts are configured to assign employees to
different VLANs depending on the workgroup to which an employee belongs.
Employee wireless community...
