Using Quick Setup

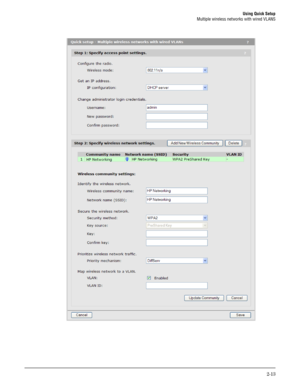

Multiple wireless networks with wired VLANS
2-13

Using Quick Setup
Multiple wireless networks with wired VLANS
2-14

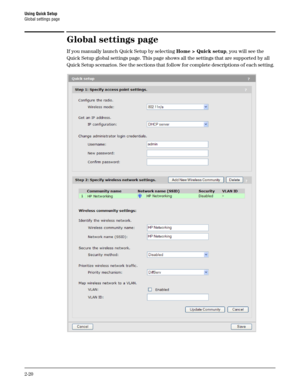

Step 1: Specify wireless network settings
For a complete description of all settings see:
Step 1: Configure access point settings on page 2-21.
The online help for this section.
Step 2: Specify wireless network settings
Buttons
Add New Wireless Community
Select this button to add a new wireless community to the table. The V-M200 supports up to
four wireless communities. After you add a new community, configure its settings using the...

Using Quick Setup
Multiple wireless networks with wired VLANS
2-15
Wireless community settings
The following sections present the settings for the selected wireless community.
Identify the wireless network
Use this section to define names for the wireless community.
Community name
Specify a name to identify the community on the V-M200.
Network name (SSID)
Specify a name to uniquely identify the wireless network associated with this community.
Each wireless user that wants to connect to this community...

Using Quick Setup
Multiple wireless networks with wired VLANS
2-16
The following versions are supported:
Key source
This scenario only supports the use of a PreShared key.
Key: The V-M200 uses the key you specify in this field to generate the TKIP or AES/
CCMP keys that are used to encrypt the wireless data stream. This key must be
configured by each user in their WPA software. Specify a key that is between 8 and 63
alphanumeric characters in length. It is recommended that the preshared key be at...

Using Quick Setup
Multiple wireless networks with wired VLANS
2-17
Key format
Select the format used to specify the encryption key:
ASCII: ASCII keys are much weaker than carefully chosen HEX keys. You can
include ASCII characters between 32 and 126, inclusive, in the key. However, note
that not all client stations support non-alphanumeric characters such as spaces,
punctuation, or special symbols in the key.
HEX: Your keys should only include the following characters: 0-9, a-f, A-F.
Prioritize...

Using Quick Setup
Multiple wireless networks with RADIUS authentication
2-18
Multiple wireless networks with RADIUS
authentication

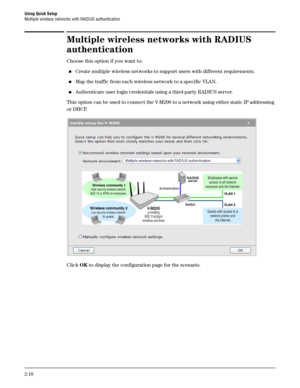

Choose this option if you want to:
Create multiple wireless networks to support users with different requirements.
Map the traffic from each wireless network to a specific VLAN.
Authenticate user login credentials using a third-party RADIUS server.
This option can be used to connect the V-M200 to a network using either static IP addressing
or DHCP.
Click OK to display...

Using Quick Setup
Multiple wireless networks with RADIUS authentication
2-19

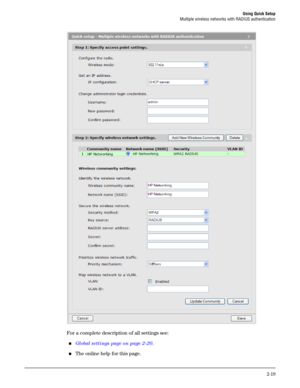

For a complete description of all settings see:
Global settings page on page 2-20.
The online help for this page.

Using Quick Setup
Global settings page
2-20
Global settings page
If you manually launch Quick Setup by selecting Home > Quick setup, you will see the
Quick Setup global settings page. This page shows all the settings that are supported by all
Quick Setup scenarios. See the sections that follow for complete descriptions of each setting.

Using Quick Setup
Global settings page
2-21
Step 1: Configure access point settings
Configure the radio
Use this section to set the radio operating mode.
Wireless mode
Select the mode that best supports the wireless client stations at your location.
Supported wireless modes are determined by the regulatory domain (country) in which the
V-M200 is configured to operate. Available options may include one or more of the following:
802.11n (5 GHz): (Pure 802.11n) Supports up to 300 Mbps in the 802.11n 5 GHz...

Using Quick Setup
Global settings page
2-22
Get an IP address
Use this section to configure how an IP address is assigned to the V-M200.
IP configuration
Select the method that will be used to assign an IP address to the Ethernet port on the
V- M 2 0 0 .
DHCP server
The V-M200 will operate as a DHCP client and automatically obtain an IP address from a
DHCP server on the network connected to the Ethernet port. If no DHCP server is found, the
IP address 192.168.1.1 is assigned to the Ethernet and...
