Working with wireless communities
Wireless community configuration options
4-9
RADIUS: The V-M200 retrieves the key from the RADIUS server and uses it to generate
the TKIP or AES/CCMP keys that are used to encrypt the wireless data stream. The key is
dynamically generated by the RADIUS server each time the user logs in. Communication
with the RADIUS server occurs via 802.1X using the EAP protocol specified by the user’s
WPA client software.
If you select the RADIUS option, you need to configure the...

Working with wireless communities
Wireless community configuration options
4-10
802.1X
802.1X enables you to authenticate wireless clients via user accounts stored on a third-party
RADIUS server.
Caution802.1X is purely a protocol for user authentication. Using 802.1X without enabling the WEP
encryption option results in wireless traffic being unencrypted. Therefore, for security
reasons, use of 802.1X without enabling WEP encryption is not recommended.
Supported 802.1X protocols
The following EAP...

Working with wireless communities
Wireless community configuration options
4-11

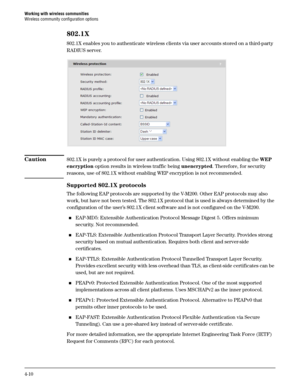

802.1X settings
If you select the 802.1X option, the following settings are configurable:
RADIUS profile: Select the RADIUS profile to use. RADIUS profiles are defined by
selecting Authentication > RADIUS profiles. The profile defines the settings that are
used by the V-M200 to communicate with the RADIUS server. RADIUS profiles are
defined by selecting Authentication > RADIUS profiles. For more information, see
Using a...

Working with wireless communities
Wireless community configuration options
4-12
WEP
WEP enables you to encrypt wireless transmissions, but does not provide for user
authentication. WEP is not as secure as WPA.
NoteWEP cannot be used when the radio operating mode supports 802.11n.
Key
The number of characters you specify for the key determines the level of encryption.
For 40-bit encryption, specify 5 ASCII characters or 10 HEX digits.
For 128-bit encryption, specify 13 ASCII characters or 26 HEX...

Working with wireless communities
Wireless community configuration options
4-13

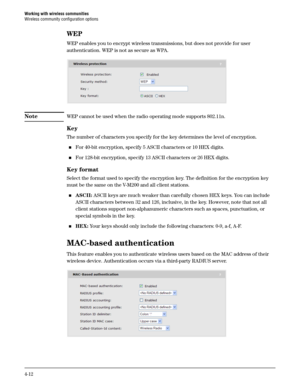

NoteWhen both this option and the MAC filtering option are enabled, MAC filtering occurs
first.
MAC-based authentication cannot be enabled at the if Wireless protection is set to WPA/
WPA2 with RADIUS.
To successfully authenticate a user, an account must be created on the RADIUS server with
both username and password set to the MAC address of the user’s wireless device.
The MAC address sent by the V-M200 (in the RADIUS...

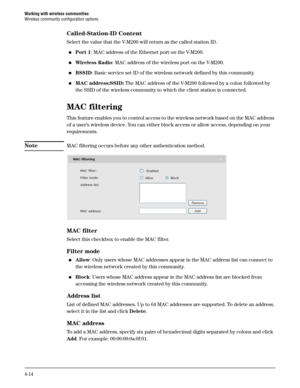

Working with wireless communities
Wireless community configuration options
4-14
Called-Station-ID Content
Select the value that the V-M200 will return as the called station ID.
Port 1: MAC address of the Ethernet port on the V-M200.
Wireless Radio: MAC address of the wireless port on the V-M200.
BSSID: Basic service set ID of the wireless network defined by this community.
MAC address:SSID: The MAC address of the V-M200 followed by a colon followed by
the SSID of the wireless community to which the...

Working with wireless communities
Wireless community data flow
4-15
Wireless community data flow

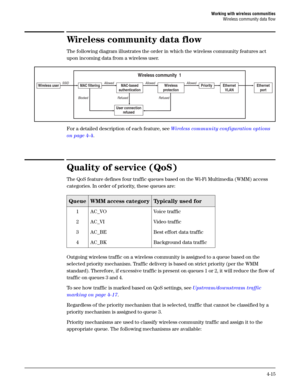

The following diagram illustrates the order in which the wireless community features act
upon incoming data from a wireless user.
For a detailed description of each feature, see Wireless community configuration options
on page 4-4.
Quality of service (QoS)
The QoS feature defines four traffic queues based on the Wi-Fi Multimedia (WMM) access
categories. In order of priority, these queues are:
Outgoing...

Working with wireless communities
Quality of service (QoS)
4-16
802.1p
This mechanism classifies traffic based on the value of the VLAN priority field present within
the VLAN header.
Community Based priority
This mechanism enables you to assign a single priority level to all traffic on a wireless
community. If you enable the community based priority mechanism, it takes precedence
regardless of the priority mechanism supported by associated client stations. For example, if
you set Community Based Low...

Working with wireless communities
Quality of service (QoS)
4-17
Upstream/downstream traffic marking
Depending on the priority mechanism that is active, upstream and downstream traffic is
marked as described in this section.
Upstream traffic marking
This table describes the marking applied to wireless traffic sent by connected client stations
to the V-M200 and then forwarded onto the wired network (via the Ethernet port) by the
V- M 2 0 0 .
Downstream traffic marking
This table describes the marking...

Working with wireless communities
Quality of service (QoS)
4-18
