HP Vm200 User Manual

Managing the V-M200
System time
3-5

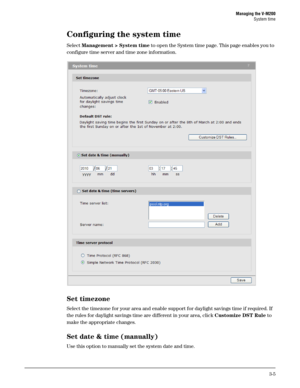

Configuring the system time
Select Management > System time to open the System time page. This page enables you to
configure time server and time zone information.
Set timezone
Select the timezone for your area and enable support for daylight savings time if required. If
the rules for daylight savings time are different in your area, click Customize DST Rule to
make the appropriate changes.
Set date & time (manually)
Use this option to manually set the system date...

Managing the V-M200
Country
3-6
Set date and time (time servers)
(A working Internet connection is required to use this option.)
Select this option to have the V-M200 periodically contact a network time server to update its
internal clock.
By default, the list contains pool.ntp.org, which is a large, virtual cluster of timeservers
providing reliable NTP service.
When multiple servers are defined, the V-M200 contacts the first server in the list. If the
server does not reply, the V-M200 tries the next...

Chapter 4: Working with wireless communities
4
Working with wireless communities
Contents
Overview.......................................................................................................................4-2
Managing wireless communities ................................................................................ 4-3
About the default wireless community ............................................................... 4-3
Wireless community configuration options...

Working with wireless communities
Overview
4-2
Overview
The V-M200 allows you to create up to four wireless communities. Each wireless community
defines the settings for a distinct wireless network, with its own network name (SSID),
settings for wireless protection, user authentication, VLANs, quality of service, and more.

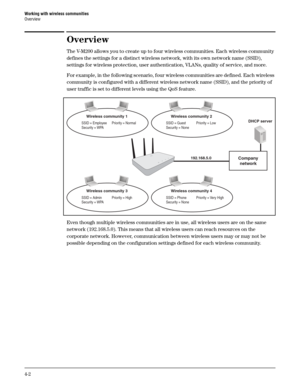

For example, in the following scenario, four wireless communities are defined. Each wireless
community is configured with a different wireless network name (SSID), and the priority...

Working with wireless communities
Managing wireless communities
4-3

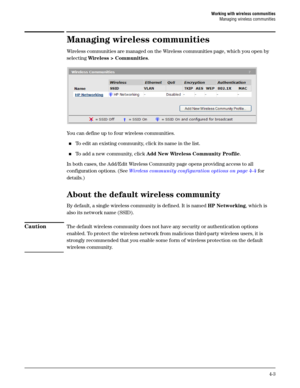

Managing wireless communities
Wireless communities are managed on the Wireless communities page, which you open by
selecting Wireless > Communities.
You can define up to four wireless communities.
To edit an existing community, click its name in the list.
To add a new community, click Add New Wireless Community Profile.
In both cases, the Add/Edit Wireless Community page opens providing access to all
configuration options. (See...

Working with wireless communities
Wireless community configuration options
4-4

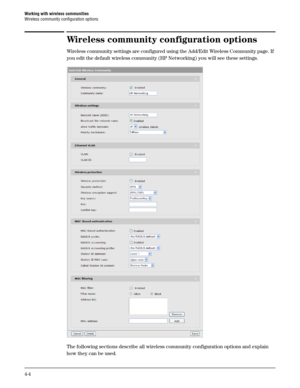

Wireless community configuration options
Wireless community settings are configured using the Add/Edit Wireless Community page. If
you edit the default wireless community (HP Networking) you will see these settings.

The following sections describe all wireless community configuration options and explain
how they can be used.

Working with wireless communities
Wireless community configuration options
4-5

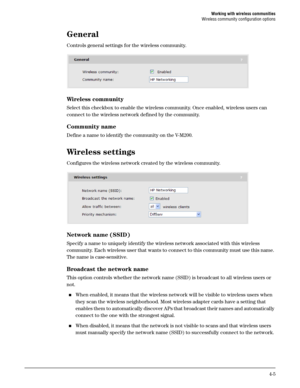

General
Controls general settings for the wireless community.

Wireless community
Select this checkbox to enable the wireless community. Once enabled, wireless users can
connect to the wireless network defined by the community.
Community name
Define a name to identify the community on the V-M200.
Wireless settings
Configures the wireless network created by the wireless community.

Network name (SSID)
Specify a name to...

Working with wireless communities
Wireless community configuration options
4-6
Allow traffic between All/No wireless clients
This option controls the exchange of traffic between wireless users. The following settings
are available:
All: Wireless users connected to the same community can communicate with each other
over the wireless network.
No: Wireless users cannot communicate with each other over the wireless network.
Communication between users on different wireless communities
Communication...

Working with wireless communities
Wireless community configuration options
4-7

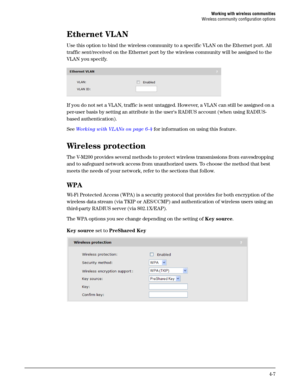

Ethernet VLAN
Use this option to bind the wireless community to a specific VLAN on the Ethernet port. All
traffic sent/received on the Ethernet port by the wireless community will be assigned to the
VLAN you specify.
If you do not set a VLAN, traffic is sent untagged. However, a VLAN can still be assigned on a
per-user basis by setting an attribute in the users RADIUS account (when using RADIUS-
based authentication).
See...

Working with wireless communities
Wireless community configuration options
4-8

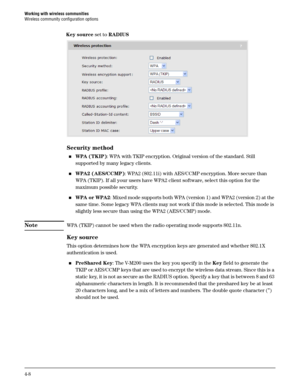

Security method
WPA (TKIP): WPA with TKIP encryption. Original version of the standard. Still
supported by many legacy clients.
WPA2 (AES/CCMP): WPA2 (802.11i) with AES/CCMP encryption. More secure than
WPA (TKIP). If all your users have WPA2 client software, select this option for the
maximum possible security.
WPA or WPA2: Mixed mode supports both WPA (version 1) and WPA2 (version 2) at the
same time. Some legacy WPA...
