LG Ld 2293thb Owners Manual

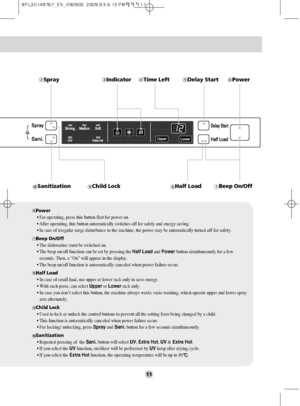

11
SprayIndicator
Beep On/OffHalf LoadChild LockSanitization
Delay StartPowerTime Left
Power
• For operating, press this button first for power on.
• After operating, this button automatically switches off for safety and energy saving.
• In case of irregular surge disturbance to the machine, the power may be automatically turned off for safety.
Beep On/Off
• The dishwasher must be switched on.
• The beep on/off function can be set by pressing the Half Loadand Power button simultaneously for a few...

EFORE USING FOR THE FIRST TIMEB

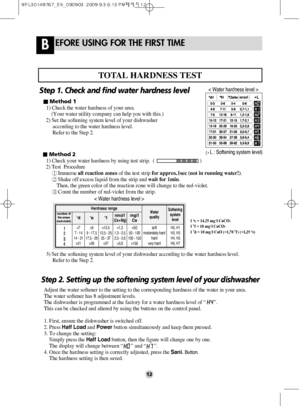

12
Adjust the water softener to the setting to the corresponding hardness of the water in your area.
The water softener has 8 adjustment levels.
The dishwasher is programmed at the factory for a water hardness level of “      ”.
This can be checked and altered by using the buttons on the control panel.
1. First, ensure the dishwasher is switched off.
2. Press Half Loadand Powerbutton simultaneously and keep them pressed.
3. To change the setting:
Simply press the Half...

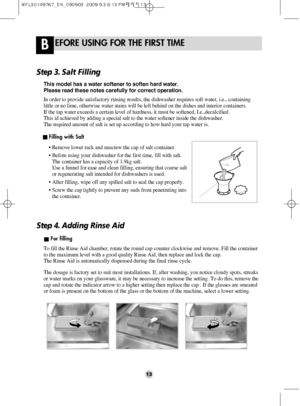

13
EFORE USING FOR THE FIRST TIMEB
Step 3. Salt Filling
• Remove lower rack and unscrew the cap of salt container.
• Before using your dishwasher for the first time, fill with salt.
The container has a capacity of 1.9kg salt.
Use a funnel for ease and clean filling, ensuring that coarse salt
or regenerating salt intended for dishwashers is used.
• After filling, wipe off any spilled salt to seal the cap properly.
• Screw the cap tightly to prevent any suds from penetrating into
the container. In order to...

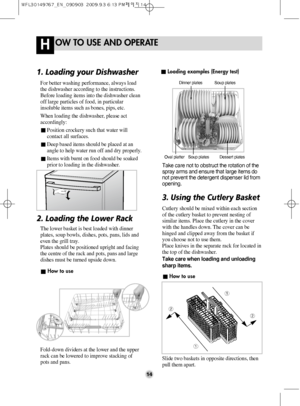

14
OW TO USE AND OPERATEH
3. Using the Cutlery Basket
Cutlery should be mixed within each section
of the cutlery basket to prevent nesting of
similar items. Place the cutlery in the cover
with the handles down. The cover can be
hinged and clipped away from the basket if
you choose not to use them.
Place knives in the separate rack for located in
the top of the dishwasher.
Take care when loading and unloading
sharp items.
Take care not to obstruct the rotation of the
spray arms and ensure that large items...

15
4. Loading the Upper Rack
It is best to load this with more delicate items
such as, small plates, long cutlery, cups, glasses
and dishwasher safe plastic items. Plates should
be positioned upwards with the plate bottom
facing the front of the rack.
Cups, glasses and bowls must be positioned
upside down.
Extra cups or cooking utensils can be laid on
the fold down cup racks, which also provides
support for long stem glasses.
Take care not to obstruct the rotation of the
spray arm under the upper...

OW TO USE AND OPERATEH

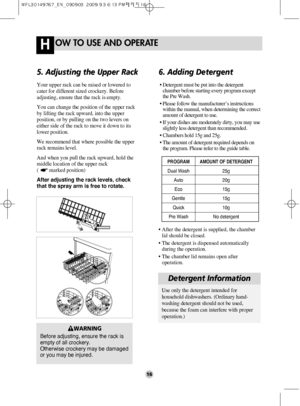

16
6. Adding Detergent
• Detergent must be put into the detergent
chamber before starting every program except
the Pre Wash.
• Please follow the manufacturer’s instructions
within the manual, when determining the correct
amount of detergent to use.
• If your dishes are moderately dirty, you may use
slightly less detergent than recommended.
• Chambers hold 15g and 25g.
• The amount of detergent required depends on
the program. Please refer to the guide table.
• After the detergent...

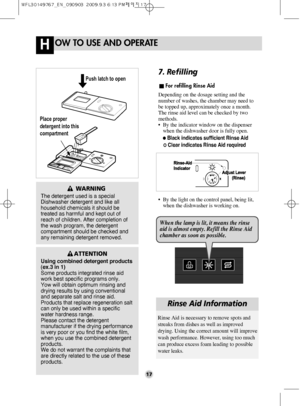

17
OW TO USE AND OPERATEH
Push latch to open
Place proper
detergent into this
compartment7. Refilling
For refilling Rinse Aid
Depending on the dosage setting and the
number of washes, the chamber may need to
be topped up, approximately once a month.
The rinse aid level can be checked by two
methods.
•  By the indicator window on the dispenser
when the dishwasher door is fully open.
●Black indicates sufficient Rinse Aid
OClear indicates Rinse Aid required
When the lamp is lit, it means the rinse
aid is...

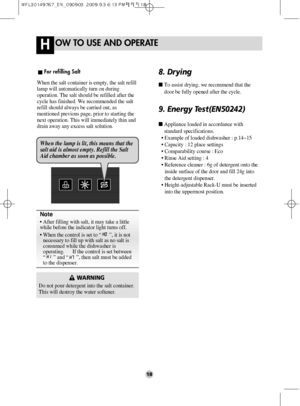

OW TO USE AND OPERATEH
18
Note
• After filling with salt, it may take a little
while before the indicator light turns off.
• When the control is set to “      ”, it is not
necessary to fill up with salt as no salt is
consumed while the dishwasher is
operating.      If the control is set between
“      ” and “      ”, then salt must be added
to the dispenser.
WARNING
Do not pour detergent into the salt container.
This will destroy the water softener.
When the salt container is empty, the salt refill
lamp...

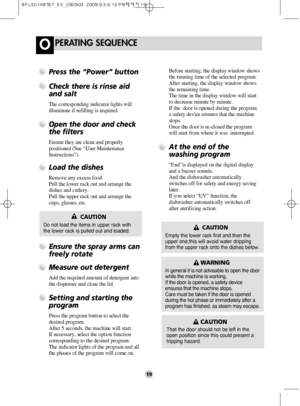

19
PERATING SEQUENCEO
Press the “Power” button
Check there is rinse aid
and salt
The corresponding indicator lights will
illuminate if refilling is required.
Open the door and check
the filters
Ensure they are clean and properly
positioned (See “User Maintenance
Instructions”).
Load the dishes
Remove any excess food.
Pull the lower rack out and arrange the
dishes and cutlery.
Pull the upper rack out and arrange the
cups, glasses, etc.
Before starting, the display window shows
the running time of the...

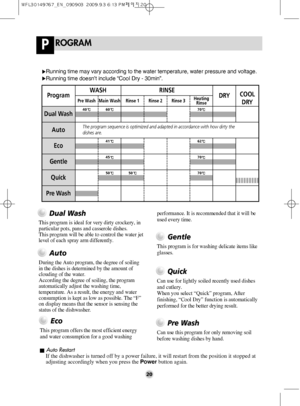

ROGRAMP
20
Running time may vary according to the water temperature, water pressure and voltage.
Running time doesn’ t include “Cool Dry - 30min”.
This program is for washing delicate items like
glasses.
Gentle
performance. It is recommended that it will be
used every time.
This program offers the most efficient energy
and water consumption for a good washing
Eco
Can use for lightly soiled recently used dishes
and cutlery.
When you select “Quick” program, After
finishing, “Cool Dry” function is...
