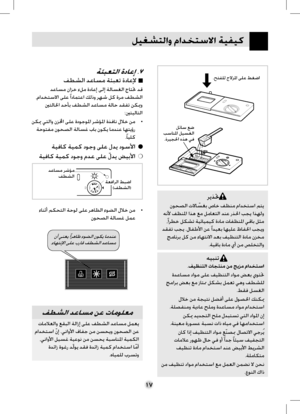

Page 41
١٧ ﻞﻴﻐﺸﺘﻟﺍﻭ ﻡﺍﺪﺨﺘﺳﻻﺍ ﺔﻴﻔﻴﻛ .ﺢﺘﻔﻠﻟ ﺝﻻﺰﳌﺍ ﻰﻠﻋ ﻂﻐﺿﺍ ﻞﺋﺎﺳ ﻊﺿﺐﺳﺎﻨﳌﺍ ﻞﻴﺴﻐﻟﺍ.ﺓﺮﻴﺠﳊﺍ ﻩﺬﻫ ﻲﻓ ﺮﻳﺬﲢ ﻥﻮﺤﺼﻟﺍ ﺕﻻﺎ ﹼﺴﻐﺑ ﺹﺎﺧ ﻒﻈﻨﻣ ﻡﺍﺪﺨﺘﺳﺍ ﻢﺘﻳ ﻪﻧﻷ ﻒﻈﻨﳌﺍ ﺍﺬﻫ ﻊﻣ ﻞﻣﺎﻌﺘﻟﺍ ﺪﻨﻋ ﺭﺬﳊﺍ ﺐﺠﻳ ﺍﺬﻬﻟﻭ ،ﹰ ﺍﺮﻄﺧ ﻞﻜﺸﺗ ﺔﻴﺋﺎﻴﻤﻴﻛ ﺓﺩﺎﻣ ﺕﺎﻔﻈﻨﳌﺍ ﻲﻗﺎﺑ ﻞﺜﻣ ﺪﻘﻔﺗ ﺐﺠﻳ .ﻝﺎﻔﻃﻷﺍ ﻦﻋ ﹰ ﺍﺪﻴﻌﺑ ﺎﻬﻴﻠﻋ ﻅﺎﻔﳊﺍ ﺐﺠﻳﻭ ﺞﻣﺎﻧﺮﺑ ﻞﻛ ﻦﻣ ﺀﺎﻬﺘﻧﻻﺍ ﺪﻌﺑ ﻒﻴﻈﻨﺘﻟﺍ ﺓﺩﺎﻣ ﻥﺰﺨﻣ .ﺔﻴﻗﺎﺑ ﺓﺩﺎﻣ ﻱﺃ ﻦﻣ ﺺﻠﺨﺘﻟﺍﻭ ﻪﻴﺒﻨﺗ .ﻒﻴﻈﻨﺘﻟﺍ ﺕﺎﺠﺘﻨﻣ ﻦﻣ ﺞﻳﺰﻣ ﻡﺍﺪﺨﺘﺳﺍ ﺓﺪﻋﺎﺴﻣ ﺩﺍﻮﻣ ﻰﻠﻋ ﻒﻴﻈﻨﺘﻟﺍ ﺩﺍﻮﻣ ﺾﻌﺑ ﻱﻮﺘﲢ ﺞﻣﺍﺮﺑ ﺾﻌﺑ ﻊﻣ ﺯﺎﺘﳑ ﻞﻜﺸﺑ ﻞﻤﻌﺗ ﻲﻫﻭ ﻒﻄﺸﻠﻟ .ﻂﻘﻓ ﻞﺴﻐﻟﺍ ﻝﻼﺧ ﻦﻣ ﺔﺠﻴﺘﻧ ﻞﻀﻓﺃ ﻰﻠﻋ ﻝﻮﺼﳊﺍ ﻚﻨﻜﳝ .ﺔﻠﺼﻔﻨﻣﻭ ﺔﻳﺩﺎﻋ ﺢﻠﻣﻭ...

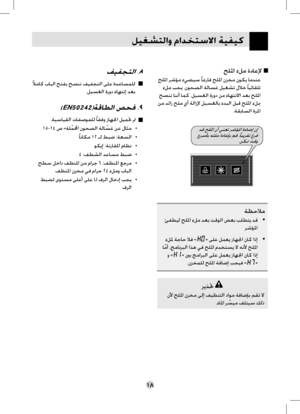

Page 42
ﻞﻴﻐﺸﺘﻟﺍﻭ ﻡﺍﺪﺨﺘﺳﻻﺍ ﺔﻴﻔﻴﻛ
١٨
ﺢﻠﳌﺍ ﺀﻞﻣ ﺓﺩﺎﻋﻹ
ﺢﻠﳌﺍ ﺮﺷﺆﻣ ﺀﻲﻀﻴﺳ ﹰﺎﻏﺭﺎﻓ ﺢﻠﳌﺍ ﻥﺰﺨﻣ ﻥﻮﻜﻳ ﺎﻣﺪﻨﻋ
ﺀﻞﻣ ﺐﺠﻳ .ﻥﻮﺤﺼﻟﺍ ﺔﻟﺎﺴﻏ ﻞﻴﻐﺸﺗ ﻝﻼﺧ ﹰﺎﻴﺋﺎﻘﻠﺗ
ﺢﺼﻨﻧ ﺎﻨﻧﺃ ﺎﻤﻛ .ﻞﻴﺴﻐﻟﺍ ﺓﺭﻭﺩ ﻦﻣ ﺀﺎﻬﺘﻧﻻﺍ ﺪﻌﺑ ﺢﻠﳌﺍ
ﻦﻣ ﺪﺋﺍﺯ ﺢﻠﻣ ﻱﺃ ﺔﻟﺍﺯﻹ ﻞﻴﺴﻐﻟﺎﺑ ﺀﺪﺒﻟﺍ ﻞﺒﻗ ﺢﻠﳌﺍ ﺀﻞﲟ
.ﺔﻘﺑﺎﺴﻟﺍ ﺓﺮﳌﺍ
ﺔﻈﺣﻼﻣ
ﺊﻔﻄﻴﻟ ﺢﻠﳌﺍ ﺀﻞﻣ ﺪﻌﺑ ﺖﻗﻮﻟﺍ ﺾﻌﺑ ﺐﻠﻄﺘﻳ ﺪﻗ•
ﺮﺷﺆﳌﺍ
ﺀﻞﳌ ﺔﺟﺎﺣ ﻼﻓ «» ﻰﻠﻋ ﻞﻤﻌﻳ ﺯﺎﻬﳉﺍ ﻥﺎﻛ ﺍﺫﺇ•
ﺎ ﹼﻣﺃ ،ﺞﻣﺎﻧﺮﺒﻟﺍ ﺍﺬﻫ ﻲﻓ ﺢﻠﳌﺍ ﻡﺪﺨﺘﺴﻳ ﻻ ﻪﻧﻷ ﺢﻠﳌﺍ
ﻭ «» ﲔﺑ ﺞﻣﺍﺮﺒﻟﺍ ﻰﻠﻋ ﻞﻤﻌﻳ ﺯﺎﻬﳉﺍ ﻥﺎﻛ ﺍﺫﺇ
.ﻥﺰﺨﻤﻠﻟ ﺢﻠﳌﺍ ﺔﻓﺎﺿﺇ ﺐﺠﻴﻓ «»
ﺮﻳﺬﲢ
ﻥﻷ ﺢﻠﳌﺍ ﻥﺰﺨﻣ ﻰﻟﺇ ﻒﻴﻈﻨﺘﻟﺍ ﺩﺍﻮﻣ ﺔﻓﺎﺿﺈﺑ ﻢﻘﺗ ﻻ
.ﺀﺎﳌﺍ ﺮ ﹼﺴﻴﻣ...

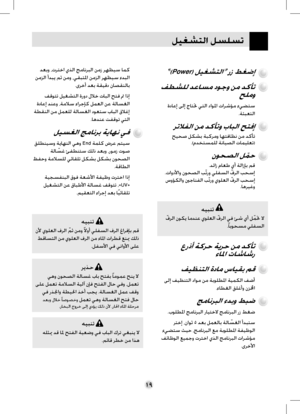

Page 43
١٩ ﻞﻴﻐﺸﺘﻟﺍ ﻞﺴﻠﺴﺗ «(Power) ﻞﻴﻐﺸﺘﻟﺍ» ﺭﺯ ﻂﻐﺿﺇ ﻒﻄﺸﻠﻟ ﺪﻋﺎﺴﻣ ﺩﻮﺟﻭ ﻦﻣ ﺪﻛﺄﺗ ﺢﻠﻣﻭ ﺓﺩﺎﻋﺇ ﻰﻟﺇ ﺝﺎﺘﲢ ﻲﺘﻟﺍ ﺩﺍﻮﳌﺍ ﺕﺍﺮﺷﺆﻣ ﺀﻲﻀﺘﺳ .ﺔﺌﺒﻌﺘﻟﺍ ﺮﺗﻼﻔﻟﺍ ﻦﻣ ﺪﻛﺄﺗﻭ ﺏﺎﺒﻟﺍ ﺢﺘﻓﺇ ﺢﻴﺤﺻ ﻞﻜﺸﺑ ﺔﺒﻛﺮﻣﻭ ﺎﻬﺘﻓﺎﻈﻧ ﻦﻣ ﺪﻛﺄﺗ .(ﻡﺪﺨﺘﺴﻤﻠﻟ ﺔﻧﺎﻴﺼﻟﺍ ﺕﺎﻤﻴﻠﻌﺗ) ﻥﻮﺤﺼﻟﺍ ﻞ ﹼﻤﺣ .ﺪﺋﺍﺯ ﻡﺎﻌﻃ ﻱﺃ ﺔﻟﺍﺯﺈﺑ ﻢﻗ .ﺕﺍﻭﺩﻷﺍﻭ ﻥﻮﺤﺼﻟﺍ ﺐﹼﺗﺭﻭ ﻲﻠﻔﺴﻟﺍ ﹼﻑﺮﻟﺍ ﺐﺤﺳﺇ ﺱﻭﺆﻜﻟﺍﻭ ﲔﺟﺎﻨﻔﻟﺍ ﺐﹼﺗﺭﻭ ﻱﻮﻠﻌﻟﺍ ﹼﻑﺮﻟﺍ ﺐﺤﺳﺇ.ﺎﻫﺮﻴﻏﻭ ﻪﻴﺒﻨﺗ ﹼﻑﺮﻟﺍ ﻥﻮﻜﻳ ﺎﻣﺪﻨﻋ ﻱﻮﻠﻌﻟﺍ ﹼﻑﺮﻟﺍ ﻲﻓ ﺊﺷ ﻱﺃ ﻞ ﹼﻤﲢ ﻻ .ﹰﺎﺑﻮﺤﺴﻣ ﻲﻠﻔﺴﻟﺍ ﻉﺭﺫﺃ ﺔﻛﺮﺣ ﺔﻳﺮﺣ ﻦﻣ ﺪﻛﺄﺗ ﺀﺎﳌﺍ ﺕﺎﺷﺎﺷﺭ ﻒﻴﻈﻨﺘﻟﺍ ﺓﺩﺎﻣ ﺱﺎﻴﻘﺑ ﻢﻗ ﻰﻟﺇ ﻒﻴﻈﻨﺘﻟﺍ ﺩﺍﻮﻣ ﻦﻣ ﺔﺑﻮﻠﻄﳌﺍ ﺔﻴﻤﻜﻟﺍ ﻒﺿﺃ...

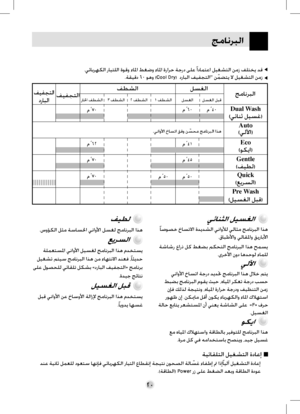

Page 44
ﺞﻣﺎﻧﺮﺒﻟﺍ ٢٠ ﻲﺋﺎﻨﺜﻟﺍ ﻞﻴﺴﻐﻟﺍ ﹰﺎﺻﻮﺼﺧ ﺥﺎﺴﺗﻻﺍ ﺓﺪﻳﺪﺸﻟﺍ ﻲﻧﺍﻭﻸﻟ ﻲﻟﺎﺜﻣ ﺞﻣﺎﻧﺮﺒﻟﺍ ﺍﺬﻫ .ﻕﺎﺒﻃﻷﺍﻭ ﻲﻟﺎﻘﳌﺍﻭ ﻖﻳﺭﺎﺑﻷﺍ ﺔﺷﺎﺷﺭ ﻉﺍﺭﺫ ﻞﻛ ﻂﻐﻀﺑ ﻢﻜﺤﺘﻟﺍ ﺞﻣﺎﻧﺮﺒﻟﺍ ﺍﺬﻫ ﺢﻤﺴﻳ .ﻯﺮﺧﻷﺍ ﻥﻭﺩ ﺎﻫﺪﺣﻮﻟ ﺀﺎﻤﻠﻟ ﻲﻟﻵﺍ ﻲﻧﺍﻭﻷﺍ ﺥﺎﺴﺗﺍ ﺔﺟﺭﺩ ﺪﻳﺪﲢ ﺞﻣﺎﻧﺮﺒﻟﺍ ﺍﺬﻫ ﻝﻼﺧ ﻢﺘﻳ ﻂﺒﻀﺑ ﺞﻣﺎﻧﺮﺒﻟﺍ ﻡﻮﻘﻳ ﺚﻴﺣ ،ﻩﺎﻴﳌﺍ ﺮﻜﻌﺗ ﺔﺟﺭﺩ ﺐﺴﺣ ﻥﺈﻓ ﻚﻟﺬﻟ ﺔﺠﻴﺘﻧﻭ ،ﻩﺎﻴﳌﺍ ﺓﺭﺍﺮﺣ ﺔﺟﺭﺩﻭ ﻒﻴﻈﻨﺘﻟﺍ ﻦﻣﺯ ﺭﻮﻬﻇ ﻥﺇ .ﻦﻜﳝﺎﻣ ﻞﻗﺃ ﻥﻮﻜﻳ ﺀﺎﺑﺮﻬﻜﻟﺍﻭ ﺀﺎﳌﺍ ﻙﻼﻬﺘﺳﺍ ﺔﻟﺎﺣ ﻊﺑﺎﺘﻳ ﺮﻌﺸﺘﺴﳌﺍ ﻥﺃ ﻲﻨﻌﻳ ﺔﺷﺎﺸﻟﺍ ﻰﻠﻋ «F» ﻑﺮﺣ .ﻞﻴﺴﻐﻟﺍ ﻮﻜﻳﺍ ﻊﻣ ﻩﺎﻴﳌﺍ ﻙﻼﻬﺘﺳﺍﻭ ﺔﻗﺎﻄﻟﺎﺑ ﺮﻴﻓﻮﺘﻠﻟ ﺞﻣﺎﻧﺮﺒﻟﺍ ﺍﺬﻫ .ﺓﺮﻣ ﻞﻛ ﻲﻓ ﻪﻣﺍﺪﺨﺘﺳﺎﺑ ﺢﺼﻨﻳﻭ ،ﺪﻴﺟ ﻞﻴﺴﻏ ﻒﻴﻄﻟ...

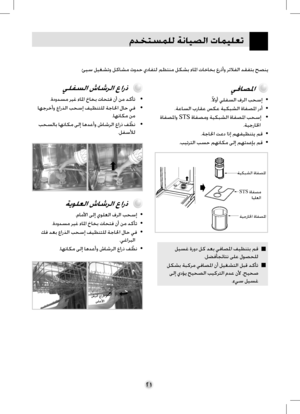

Page 45
٢١ ﻡﺪﺨﺘﺴﻤﻠﻟ ﺔﻧﺎﻴﺼﻟﺍ ﺕﺎﻤﻴﻠﻌﺗ .ﺊﻴﺳ ﻞﻴﻐﺸﺗﻭ ﻞﻛﺎﺸﻣ ﺙﻭﺪﺣ ﻱﺩﺎﻔﺘﻟ ﻢﻈﺘﻨﻣ ﻞﻜﺸﺑ ﺀﺎﳌﺍ ﺕﺎﺧﺎﺨﺑ ﻉﺭﺫﺃﻭ ﺮﺗﻼﻔﻟﺍ ﺪﻘﻔﺘﺑ ﺢﺼﻨﻳ ﻲﻓﺎﺼﳌﺍ .ﹰﻻﻭﺃ ﻲﻠﻔﺴﻟﺍ ﻑﺮﻟﺍ ﺐﺤﺳﺇ• .ﺔﻋﺎﺴﻟﺍ ﺏﺭﺎﻘﻋ ﺲﻜﻋ ﺔﻴﻜﺒﺸﻟﺍ ﺓﺎﻔﺼﳌﺍ ﺭﺩﺃ• ﺓﺎﻔﺼﳌﺍﻭSTS ﺓﺎﻔﺼﻣﻭ ﺔﻴﻜﺒﺸﻟﺍ ﺓﺎﻔﺼﳌﺍ ﺐﺤﺳﺇ• .ﺔﻴﺟﺭﺎﳋﺍ .ﺔﺟﺎﳊﺍ ﺖﻋﺩ ﺍﺫﺇ ﻢﻬﻔﻴﻈﻨﺘﻳ ﻢﻗ• .ﺐﻴﺗﺮﺘﻟﺍ ﺐﺴﺣ ﻢﻬﻧﺎﻜﻣ ﻰﻟﺇ ﻢﻬﺗﺪﻋﺈﺑ ﻢﻗ• upper STS filter outer filter Coarse filter fine filtermesh filter Upper spray arm ﺔﻴﻜﺒﺸﻟﺍ ﺓﺎﻔﺼﳌﺍ STSﺓﺎﻔﺼﻣﺎﻴﻠﻌﻟﺍ ﺔﻴﺟﺭﺎﳋﺍ ﺓﺎﻔﺼﳌﺍ ﻲﻠﻔﺴﻟﺍ ﺵﺎﺷﺮﻟﺍ ﻉﺍﺭﺫ .ﺓﺩﻭﺪﺴﻣ ﺮﻴﻏ ﺀﺎﳌﺍ ﺥﺎﺨﺑ ﺕﺎﺤﺘﻓ ﻥﺃ ﻦﻣ ﺪﻛﺄﺗ• ﺎﻬﺟﺮﺧﺃﻭ ﻉﺍﺭﺬﻟﺍ ﺐﺤﺳﺇ ﻒﻴﻈﻨﺘﻠﻟ...

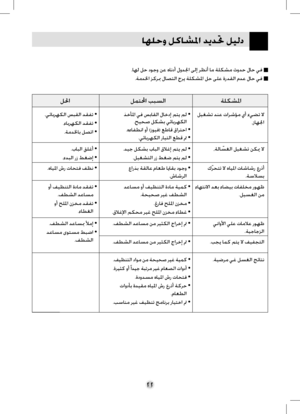

Page 46
ﺎﻬﻠﺣﻭ ﻞﻛﺎﺸﳌﺍ ﺪﻳﺪﲢ ﻞﻴﻟﺩ ٢٢ .ﺎﻬﻟ ﻞﺣ ﺩﻮﺟﻭ ﻦﻋ ﻩﺎﻧﺩﺃ ﻝﻭﺪﳉﺍ ﻰﻟﺇ ﺮﻈﻧﺃ ﺎﻣ ﺔﻠﻜﺸﻣ ﺙﻭﺪﺣ ﻝﺎﺣ ﻲﻓ .ﺔﻣﺪﳋﺍ ﺰﻛﺮﲟ ﻝﺎﺼﺘﻟﺍ ﺝﺮﻳ ﺔﻠﻜﺸﳌﺍ ﻞﺣ ﻰﻠﻋ ﺓﺭﺪﻘﻟﺍ ﻡﺪﻋ ﻝﺎﺣ ﻲﻓ ﻞﳊﺍﻞﻤﺘﶈﺍ ﺐﺒﺴﻟﺍ ﺔﻠﻜﺸﳌﺍ ﻞﻴﻐﺸﺗ ﺪﻨﻋ ﺕﺍﺮﺷﺆﻣ ﻱﺃ ﺀﻲﻀﺗ ﻻ ،ﺯﺎﻬﳉﺍ ،ﺔﻟﺎ ﹼﺴﻐﻟﺍ ﻞﻴﻐﺸﺗ ﻦﻜﳝ ﻻ ﻙﹼﺮﺤﺘﺗ ﻻ ﻩﺎﻴﳌﺍ ﺕﺎﺷﺎﺷﺭ ﻉﺭﺫﺃ .ﺔﺳﻼﺴﺑ ﺀﺎﻬﺘﻧﻻﺍ ﺪﻌﺑ ﺀﺎﻀﻴﺑ ﺕﺎﻔﻠﺨﻣ ﺭﻮﻬﻇ .ﻞﻴﺴﻐﻟﺍ ﻦﻣ ﻲﻧﺍﻭﻷﺍ ﻲﻠﻋ ﺕﺎﻣﻼﻋ ﺭﻮﻬﻇ .ﺔﻴﺟﺎﺟﺰﻟﺍ .ﺐﺠﻳ ﺎﻤﻛ ﻢﺘﻳ ﻻ ﻒﻴﻔﺠﺘﻟﺍ .ﺔﻴﺿﺮﻣ ﻲﻏ ﻞﺴﻐﻟﺍ ﺞﺋﺎﺘﻧ ﺬﺧﺄﳌﺍ ﻲﻓ ﺲﺑﺎﻘﻟﺍ ﻝﺎﺧﺩﺇ ﻢﺘﻳ ﻢﻟ• .ﺢﻴﺤﺻ ﻞﻜﺸﺑ ﻲﺋﺎﺑﺮﻬﻜﻟﺍ .ﻩﺀﺎﻔﻄﻧﺍ ﻭﺃ (ﺯﻮﻴﻓ) ﻊﻃﺎﻗ ﻕﺍﺮﺘﺣﺍ• .ﻲﺋﺎﺑﺮﻬﻜﻟﺍ ﺭﺎﻴﺘﻟﺍ ﻊﻄﻗ ﰎ• .ﺪﻴﺟ ﻞﻜﺸﺑ ﺏﺎﺒﻟﺍ ﻕﻼﻏﺇ...

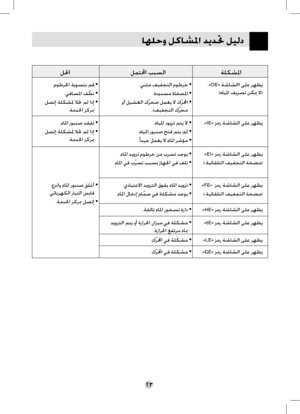

Page 47
٢٣ ﺎﻬﻠﺣﻭ ﻞﻛﺎﺸﳌﺍ ﺪﻳﺪﲢ ﻞﻴﻟﺩ ﻞﳊﺍﻞﻤﺘﶈﺍ ﺐﺒﺴﻟﺍ ﺔﻠﻜﺸﳌﺍ .«OE» ﺔﺷﺎﺸﻟﺍﺍ ﻰﻠﻋ ﺮﻬﻈﻳ (ﻩﺎﻴﳌﺍ ﻒﻳﺮﺼﺗ ﻦﻜﳝ ﻻ) .«IE» ﺰﻣﺭ ﺔﺷﺎﺸﻟﺍ ﻰﻠﻋ ﺮﻬﻈﻳ .«EI» ﺰﻣﺭ ﺔﺷﺎﺸﻟﺍ ﻰﻠﻋ ﺮﻬﻈﻳ (.ﺔﻴﺋﺎﻘﻠﺘﻟﺍ ﻒﻴﻔﺠﺘﻟﺍ ﺔﺨﻀﻣ) .«FE» ﺰﻣﺭ ﺔﺷﺎﺸﻟﺍ ﻰﻠﻋ ﺮﻬﻈﻳ (.ﺔﻴﺋﺎﻘﻠﺘﻟﺍ ﻒﻴﻔﺠﺘﻟﺍ ﺔﺨﻀﻣ) .«HE» ﺰﻣﺭ ﺔﺷﺎﺸﻟﺍ ﻰﻠﻋ ﺮﻬﻈﻳ .«tE» ﺰﻣﺭ ﺔﺷﺎﺸﻟﺍ ﻰﻠﻋ ﺮﻬﻈﻳ .«LE» ﺰﻣﺭ ﺔﺷﺎﺸﻟﺍ ﻰﻠﻋ ﺮﻬﻈﻳ .«CE» ﺰﻣﺭ ﺔﺷﺎﺸﻟﺍ ﻰﻠﻋ ﺮﻬﻈﻳ .ﻲﻨﺜﻣ ﻒﻴﻔﺠﺘﻟﺍ ﻡﻮﻃﺮﺧ• .ﺓﺩﻭﺪﺴﻣ ﺓﺎﻔﺼﳌﺍ• ﻭﺃ ﻞﻴﺸﻐﻟﺍ ﻙﹼﺮﺤﻣ) ﻞﻤﻌﻳ ﻻ ﻙﹼﺮﶈﺍ• .(ﻒﻴﻔﺠﺘﻟﺍ ﻙﹼﺮﺤﻣ .ﻩﺎﻴﳌﺍ ﺩﻮﻳﺰﺗ ﻢﺘﻳ ﻻ• .ﻩﺎﻴﳌﺍ ﺭﻮﺒﻨﺻ ﺢﺘﻓ ﻢﺘﻳ ﻢﻟ• .ﹰ ﺍﺪﻴﺟ ﻞﻤﻌﻳ ﻻ ﺀﺎﳌﺍ ﺮﺷﺆﻣ• .ﺀﺎﳌﺍ ﺪﻳﻭﺰﺗ ﻡﻮﻃﺮﺧ ﻦﻣ ﺏﺮﺴﺗ...

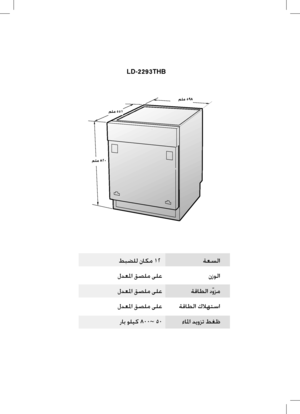

Page 48
LD-2293THB 820 mm55 1m m 59 8 m mﻢﻠﻣ ٥٩٨ ﻢﻠﻣ ٥٥١ ﻢﻠﻣ ٨٢٠ ﻂﺒﻀﻠﻟ ﻥﺎﻜﻣ ١٢ ﺔﻌﺴﻟﺍ ﻝﺪﻌﳌﺍ ﻖﺼﻠﻣ ﻰﻠﻋ ﻥﺯﻮﻟﺍ ﻝﺪﻌﳌﺍ ﻖﺼﻠﻣ ﻰﻠﻋ ﺔﻗﺎﻄﻟﺍ ﺩﹼﻭﺰﻣ ﻝﺪﻌﳌﺍ ﻖﺼﻠﻣ ﻰﻠﻋ ﺔﻗﺎﻄﻟﺍ ﻙﻼﻬﺘﺳﺍ ﺭﺎﺑ ﻮﻠﻴﻛ٨٠٠~٥٠ ﺀﺎﳌﺍ ﺪﻳﻭﺰﺗ ﻂﻐﻇ
