Lucent Technologies DEFINITY Enterprise Communication Server Release 8.2 Administrators Guide

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference

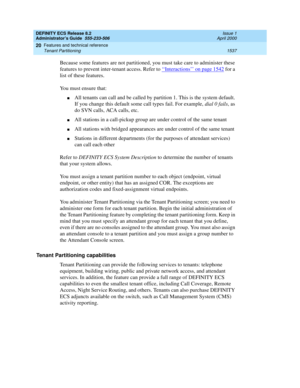

1537 Tenant Partitioning
20
Because some features are not partitioned, you must take care to administer these
features to prevent inter-tenant access. Refer to ‘‘
Interactions’’ on page 1542 for a
list of these features.
You must ensure that:
nAll tenants can call and be called by partition 1. This is the system default.
If you change this default some call types fail. For example, dial...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference

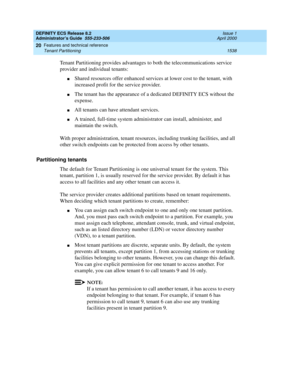

1538 Tenant Partitioning
20
Tenant Partitioning provides advantages to both the telecommunications service
provider and individual tenants:
nShared resources offer enhanced services at lower cost to the tenant, with
increased profit for the service provider.
nThe tenant has the appearance of a dedicated DEFINITY ECS without the
expense.
nAll tenants can have attendant services.
nA...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference

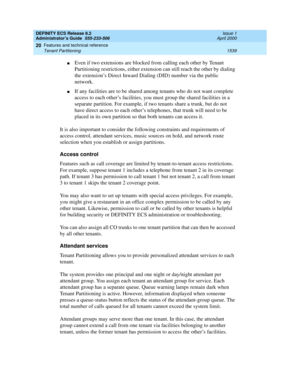

1539 Tenant Partitioning
20
nEven if two extensions are blocked from calling each other by Tenant
Partitioning restrictions, either extension can still reach the other by dialing
the extension’s Direct Inward Dialing (DID) number via the public
network.
nIf any facilities are to be shared among tenants who do not want complete
access to each other’s facilities, you must group the shared...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference
1540 Tenant Partitioning
20
Each tenant may have a designated night-service station. The system directs calls
to an attendant group in night service to the night-service station of the
appropriate tenant (when a night attendant is not available). When someone places
an attendant group into night service, all trunk groups and hunt groups that belong
to tenants served by that attendant...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference

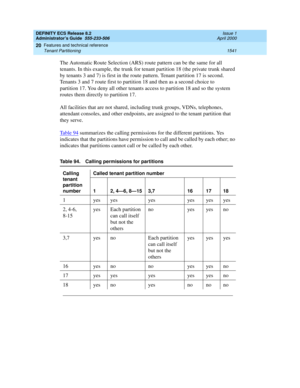

1541 Tenant Partitioning
20
The Automatic Route Selection (ARS) route pattern can be the same for all
tenants. In this example, the trunk for tenant partition 18 (the private trunk shared
by tenants 3 and 7) is first in the route pattern. Tenant partition 17 is second.
Tenants 3 and 7 route first to partition 18 and then as a second choice to
partition 17. You deny all other tenants...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference

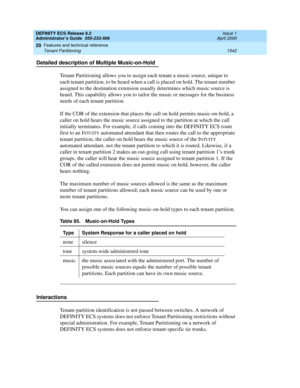

1542 Tenant Partitioning
20
Detailed description of Multiple Music-on-Hold
Tenant Partitioning allows you to assign each tenant a music source, unique to
each tenant partition, to be heard when a call is placed on hold. The tenant number
assigned to the destination extension usually determines which music source is
heard. This capability allows you to tailor the music or messages for the...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference

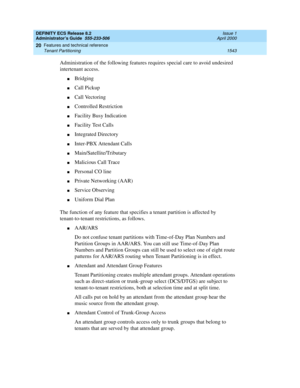

1543 Tenant Partitioning
20
Administration of the following features requires special care to avoid undesired
intertenant access.
nBridging
nCall Pickup
nCall Vectoring
nControlled Restriction
nFacility Busy Indication
nFacility Test Calls
nIntegrated Directory
nInter-PBX Attendant Calls
nMain/Satellite/Tributary
nMalicious Call Trace
nPersonal CO line
nPrivate Networking (AAR)
nService...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference

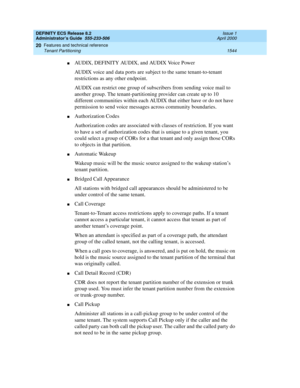

1544 Tenant Partitioning
20
nAUDIX, DEFINITY AUDIX, and AUDIX Voice Power
AUDIX voice and data ports are subject to the same tenant-to-tenant
restrictions as any other endpoint.
AUDIX can restrict one group of subscribers from sending voice mail to
another group. The tenant-partitioning provider can create up to 10
different communities within each AUDIX that either have or do not have...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference

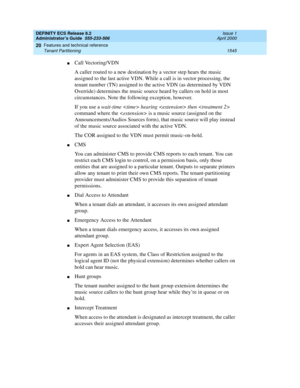

1545 Tenant Partitioning
20
nCall Vectoring/VDN
A caller routed to a new destination by a vector step hears the music
assigned to the last active VDN. While a call is in vector processing, the
tenant number (TN) assigned to the active VDN (as determined by VDN
Override) determines the music source heard by callers on hold in most
circumstances. Note the following exception, however.
If...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference

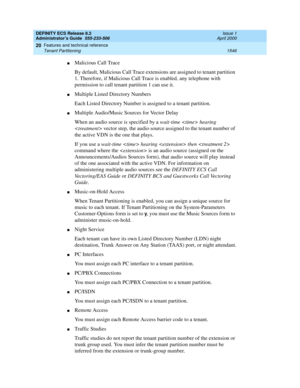

1546 Tenant Partitioning
20
nMalicious Call Trace
By default, Malicious Call Trace extensions are assigned to tenant partition
1. Therefore, if Malicious Call Trace is enabled, any telephone with
permission to call tenant partition 1 can use it.
nMultiple Listed Directory Numbers
Each Listed Directory Number is assigned to a tenant partition.
nMultiple Audio/Music Sources for Vector Delay...
