Lucent Technologies DEFINITY Enterprise Communication Server Release 8.2 Administrators Guide

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Managing group communication
387 Observing calls
14

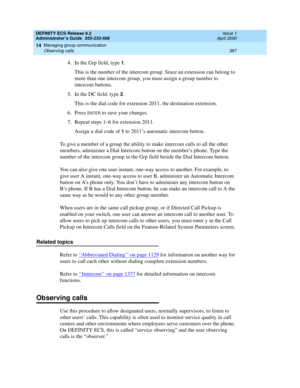

4. In the Grp field, type 1.
This is the number of the intercom group. Since an extension can belong to
more than one intercom group, you must assign a group number to
intercom buttons.
5. In the DC field, type
2.
This is the dial code for extension 2011, the destination extension.
6. Press
ENTER to save your changes.
7.Repeat steps 1–6 for extension 2011.
Assign a...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Managing group communication
388 Observing calls
14

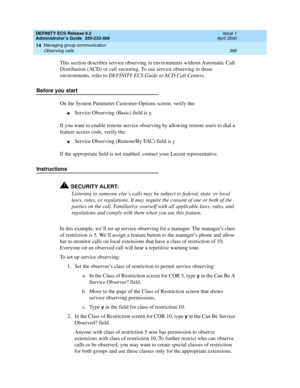

This section describes service observing in environments without Automatic Call
Distribution (ACD) or call vectoring. To use service observing in those
environments, refer to DEFINITY ECS Guide to ACD Call Centers.
Before you start
On the System Parameter Customer-Options screen, verify the:
nService Observing (Basic) field is y.
If you want to enable remote service...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Managing group communication
389 Observing calls
14

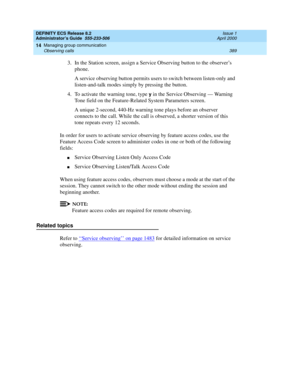

3.In the Station screen, assign a Service Observing button to the observer’s
phone.
A service observing button permits users to switch between listen-only and
listen-and-talk modes simply by pressing the button.
4. To activate the warning tone, type
y in the Service Observing — Warning
Tone field on the
 Feature-Related System Parameters screen.
A unique 2-second,...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Managing group communication
390 Observing calls
14

Managing data calls
391 Types of data connections
15
DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
15
Managing data calls
Types of data connections
You can use the DEFINITY system to allow the following types of data
elements/devices to communicate to the world:
nData Terminals
nPersonal computers
nHost Computers (for example, CentreVu CMS or Intuity AUDIX)
nDigital Phones (Digital Communications Protocol (DCP) and Integrated
Services Digital Network-Basic Rate...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Managing data calls
392 Data Call Setup
15

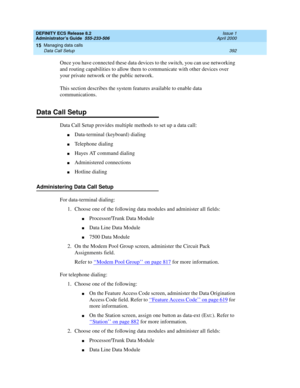

Once you have connected these data devices to the switch, you can use networking
and routing capabilities to allow them to communicate with other devices over
your private network or the public network.
This section describes the system features available to enable data
communications.
Data Call Setup
Data Call Setup provides multiple methods to set up a data call:...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Managing data calls
393 Data Call Setup
15

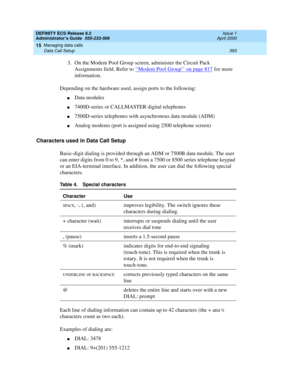

3. On the Modem Pool Group screen, administer the Circuit Pack
Assignments field. Refer to ‘‘
Modem Pool Group’’ on page 817 for more
information.
Depending on the hardware used, assign ports to the following:
nData modules
n7400D-series or CALLMASTER digital telephones
n7500D-series telephones with asynchronous data module (ADM)
nAnalog modems (port is assigned using 2500...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Managing data calls
394 Data Call Setup
15

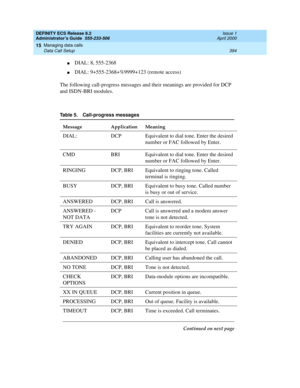

nDIAL: 8, 555-2368
nDIAL: 9+555-2368+%9999+123 (remote access)
The following call-progress messages and their meanings are provided for DCP
and ISDN-BRI modules.
Table 5. Call-progress messages
Message Application Meaning
DIAL: DCP Equivalent to dial tone. Enter the desired
number or FAC followed by Enter.
CMD BRI Equivalent to dial tone. Enter the desired
number or FAC followed...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Managing data calls
395 Data Call Setup
15

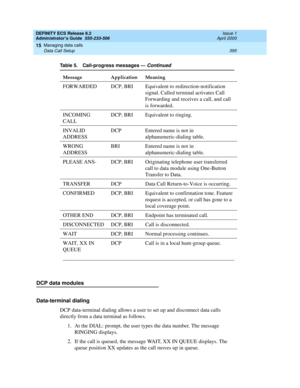

DCP data modules
Data-terminal dialing
DCP data-terminal dialing allows a user to set up and disconnect data calls
directly from a data terminal as follows.
1. At the DIAL: prompt, the user types the data number. The message
RINGING displays.
2. If the call is queued, the message WAIT, XX IN QUEUE displays. The
queue position XX updates as the call moves up in queue. FORWARDED...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Managing data calls
396 Data Call Setup
15
3. To originate and disconnect a call, the user presses BREAK. If the terminal
does not generate a 2-second continuous break signal, the user can press
originate/disconnect on the data module.
4. The user can enter digits at the DIAL: prompt.
Telephone dialing
DCP telephone dialing allows telephone users to originate and control data calls
from a telephone.
Users can set up a...
