Lucent Technologies DEFINITY Enterprise Communication Server Release 8.2 Administrators Guide

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Screen reference
617 Extended Pickup Group
17

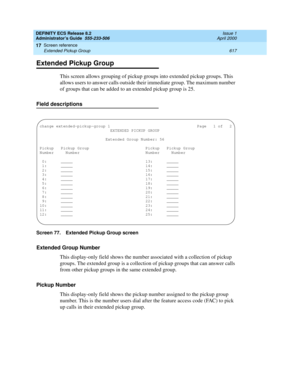

Extended Pickup Group
This screen allows grouping of pickup groups into extended pickup groups. This
allows users to answer calls outside their immediate group. The maximum number
of groups that can be added to an extended pickup group is 25.
Field descriptions
Screen 77. Extended Pickup Group screen
Extended Group Number
This display-only field shows the number associated...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Screen reference
618 Extensions Administered to have an MCT-Control Button
17
Pickup Group Number
This field determines which call pickup groups can answer calls in the extended
pickup group.
Extensions Administered
to have an MCT-Control Button
This screen lists the extensions that can take control of a Malicious Call Trace
(MCT) request. In order to give a user the ability to take control of such requests,
you need to...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Screen reference
619 Feature Access Code
17

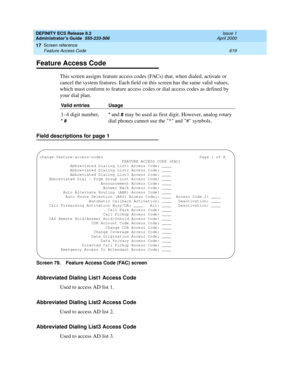

Feature Access Code
This screen assigns feature access codes (FACs) that, when dialed, activate or
cancel the system features. Each field on this screen has the same valid values,
which must conform to feature access codes or dial access codes as defined by
your dial plan.
Field descriptions for page 1
Screen 79. Feature Access Code (FAC) screen
Abbreviated Dialing List1...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Screen reference
620 Feature Access Code
17

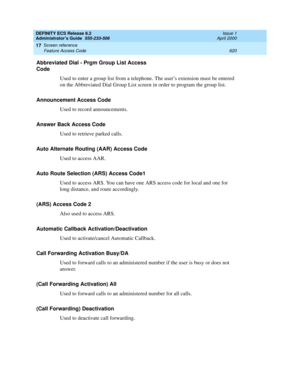

Abbreviated Dial - Prgm Group List Access
Code
Used to enter a group list from a telephone. The user’s extension must be entered
on the Abbreviated Dial Group List screen in order to program the group list.
Announcement Access Code
Used to record announcements.
Answer Back Access Code
Used to retrieve parked calls.
Auto Alternate Routing (AAR) Access Code
Used to access AAR....

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Screen reference
621 Feature Access Code
17
Call Park Access Code
Used to park an active call, which can then be retrieved from a different station
using the answer back access code. Do not administer to have the same first digit
as another feature access code that is longer in length.
Call Pickup Access Code
Used to answer a call directed to a pickup group.
CAS Remote Hold/Answer Hold-Unhold Access
Code
Used by a...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Screen reference
622 Feature Access Code
17

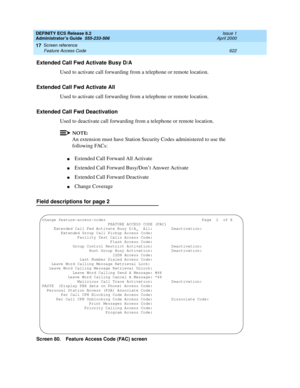

Extended Call Fwd Activate Busy D/A
Used to activate call forwarding from a telephone or remote location.
Extended Call Fwd Activate All
Used to activate call forwarding from a telephone or remote location.
Extended Call Fwd Deactivation
Used to deactivate call forwarding from a telephone or remote location.
NOTE:
An extension must have Station Security Codes administered to use...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Screen reference
623 Feature Access Code
17

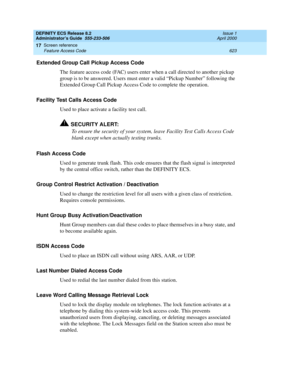

Extended Group Call Pickup Access Code
The feature access code (FAC) users enter when a call directed to another pickup
group is to be answered. Users must enter a valid “Pickup Number” following the
Extended Group Call Pickup Access Code to complete the operation.
Facility Test Calls Access Code
Used to place activate a facility test call.
!SECURITY ALERT:
To ensure the...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Screen reference
624 Feature Access Code
17

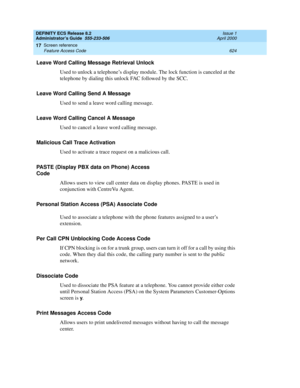

Leave Word Calling Message Retrieval Unlock
Used to unlock a telephone’s display module. The lock function is canceled at the
telephone by dialing this unlock FAC followed by the SCC.
Leave Word Calling Send A Message
Used to send a leave word calling message.
Leave Word Calling Cancel A Message
Used to cancel a leave word calling message.
Malicious Call Trace Activation
Used to...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Screen reference
625 Feature Access Code
17

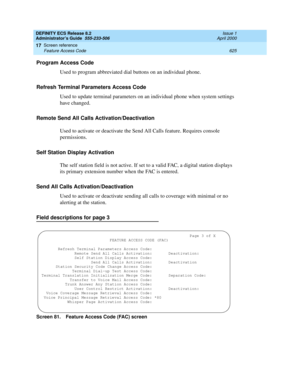

Program Access Code
Used to program abbreviated dial buttons on an individual phone.
Refresh Terminal Parameters Access Code
Used to update terminal parameters on an individual phone when system settings
have changed.
Remote Send All Calls Activation/Deactivation
Used to activate or deactivate the Send All Calls feature. Requires console
permissions.
Self Station Display...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Screen reference
626 Feature Access Code
17

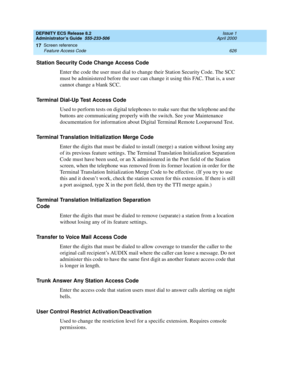

Station Security Code Change Access Code
Enter the code the user must dial to change their Station Security Code. The SCC
must be administered before the user can change it using this FAC. That is, a user
cannot change a blank SCC.
Terminal Dial-Up Test Access Code
Used to perform tests on digital telephones to make sure that the telephone and the
buttons are communicating...
