Routine Maintenance
41
Routine
Maintenance

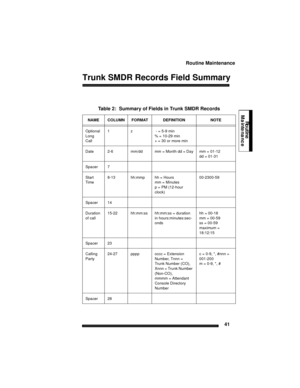

Trunk SMDR Records Field Summary
Table 2:  Summary of Fields in Trunk SMDR Records
NAME COLUMN FORMAT DEFINITION NOTE
Optional
Long
Call1 z  - = 5-9 min
% = 10-29 min
+ = 30 or more min
Date  2-6 mm/dd mm = Month dd = Day mm = 01-12
dd = 01-31
Spacer 7
Start
Time 8-13 hh:mmp hh = Hours
mm = Minutes
p = PM (12-hour
clock)00-2300-59
Spacer 14
Duration
of call15-22 hh:mm:ss hh:mm:ss = duration
in hours:minutes:sec-
onds hh = 00-18
mm = 00-59
ss = 00-59...

Technician’s Handbook
42
Atten-
dant29 f * = Attendant
-- = Attendant not
involved Attendant
answered or
initiated the call,
then transferred it
to an extension.
Leading
Digits30-33  cccc  cccc = Access Code
(outgoing and
tandem calls only) c = 0-9, *, #,
left-justified
Time to
answer
(Alter-
nate) 30-32 ttt  ttt = time in seconds
*** = Call unanswered ttt = 000 - 255,
leading zeroes
output, incoming
calls only
Digits
dialed on
the trunk 34-59  xx .... x  Up to 26 (20 if
metering) digits...

Routine Maintenance
43
Routine
Maintenance
Speed
Call or
Call
Forward
Flags61 C,F, or R C = Number was
Speed called (ARS
implied)
F = Forwarded
through External Call
Forward
R = default (ARS
implied) Outgoing - All trunk
calls are ARS by
default.
Called
Party 62-65 qqqq cccc = Extension
Number
Tnnn = Trunk
Number (CO)
Xnnn = Trunk Number
(Non-CO)
mmmm = Attendant
Console Directory
Numberc = 0-9, *, #
nnn = 001-200
m = 0-9, *, #
Transfer/
Confer-
ence
Call66 K T = Supervised
Transfer
X...

Technician’s Handbook
44
Optional
Spacer 85
Optional
System
Identifier 86-88 iii Programmed at
System leveli = 0-9
iii = 000-999
000 = no code
entered
Optional
Spacer 89
Optional
ANI
CLASS
Digits 90-99 nn .... n Up to 10 digits from
an incoming
ANI/DNIS or CLASS
trunk n = 0-9, *, #
Optional
Spacer 100-102
Optional
DNIS
Digits 103-112 dd .... d Up to 10 digits from
an incoming
ANI/DNIS trunkd = 0-9, *, #
Optional
Spacer 11 3
Optional
CLASS
Name114-128 15 char’s Up to 15 characters
from an...

Chapter 3
Troubleshooting
and Repair

Technician’s Handbook
46

Troubleshooting and Repair
47
Troubleshooting
Identifying Faults
Flowchart 1: Getting Started
Ye s
No Flowchart 1:
Power subsystem is faulty.
Check Power Subsystem in the
Control Cabinet.
Check connection between AC mains
and rear of cabinet.
Check connection between PDU and
backplane.
Replace Power Supply
Swap Control Cabinet. Are
all system LEDs on
the Control Cabinet
out? Start
Ye s
No
NoYe s
Is the operating system intact?  Check the Main
Control Card’s “active” LED.
NO: any other state (e.g.,...

Technician’s Handbook
48

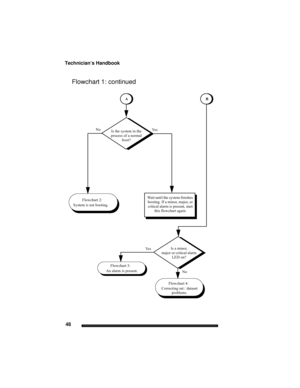

Flowchart 1: continued
Is a minor,
major or critical alarm
LED on?
No Ye s
Ye s No
Wait until the system finishes
booting. If a minor, major, or
critical alarm is present, start
this flowchart again.Flowchart 2:
System is not booting.
An alarm is present.Flowchart 3:
Correcting set / dataset
problems. Flowchart 4:
AB
Is the system in the
process of a normal
boot?

Troubleshooting and Repair
49
Troubleshooting
Flowchart 2: System Is Not Booting
Is the Main Control Card
in a cycle showing an Eb
error code?Ye s
No No
Is the Main
Control Card
in a cycle showing any
E-0/1/2/3/4/5/6/7/8/9
 error codes? If E.8
see p.54.Ye sMain Control Card (or onboard
module) failure
Reseat all Control Cabinet cards
Replace Main Control Card (and/or
appropriate modules).
Replace Control Cabinet.
Flowchart 2:
System is not booting.
. Boot Error
For SX-200 LIGHT, reseat all...

Technician’s Handbook
50
Flowchart 3: An Alarm Is Present
Determine cause & location of the alarm by using
REPORTS-SHOW-ALARMS-ALL.
=> Will show what category
(Lines/Trunks/Receivers/PCM Channels) has
caused the alarm
LOGS-READ-ALL
=> Will show when and why the device(s) are not
available to call processing
Determine current status of device by using
REPORTS-SHOW-STATUS.
=> Will provide an immediate indication of status
with respect to call processing (SWSTAT) and
Maintenance (MTSTAT) Programs
An...
